Quick Details
- Weight: 18000
- Dimension(L*W*H): 5930*2300*3020
- Grade Ability: 35%

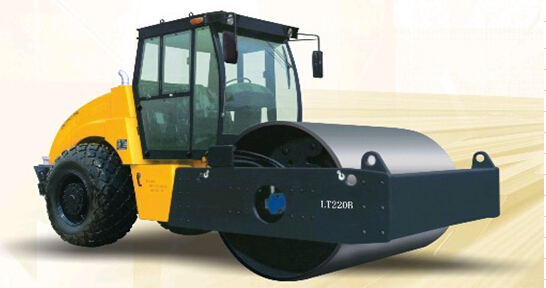

- Type: Single Drum Roller
- Condition: New
Specifications
| Operating Mass | kg | 18000 | 16000 | 14000 | 12000 | |
| Static Linear load | N/cm | 415 | 378 | 342 | 276 | |
| Vibration Frequency | HZ | 30 | 30 | 30 | 30 | |
| Vibration Amplitude | Mm | 2.0/1.0 | 2.0/1.0 | 1.8/0.9 | 1.8/0.9 | |
| Centrifugal Force | KN | 340/200 |
320/180 |
290/160 |
270/140 | |
| Travel Speed | ||||||
| 1st gear | 2.0 | 2.0 | 2.0 | 1.8 | ||
| 2nd gear | 4.0 | 4.0 | 4.0 | 3.7 | ||
| 3rd gear | 10.5 | 10.5 | 10.5 | 9.7 | ||
| Grade Ability | % | 35 | 35 | 35 | 35 | |
| Turning Angle | ° | 35 | 35 | 35 | 35 | |
| Ground Clearance | mm | 432 | 432 | 432 | 360 | |
| Electrical Vollage | V | 24 | 24 | 24 | 24 | |
| Turning Radius | mm | 7000 | 7000 | 7000 | 7000 | |
| Vertical Oascillation | ° | 8 | 8 | 8 | 8 | |
| Tyre Size | 23.1-26 | 23.1-26 | 23.1-26 | 17.5-25 | ||
| Overall Length | mm | 5930 | 5860 | 5860 | 5640 | |
| Overall Width | mm | 2300 | 2280 | 2350 | 2258 | |
| Overall Height | mm | 3020 | 3020 | 3100 | 2970 | |
| Vibration Round Width | mm | 2100 | 2100 | 2100 | 2100 | |
| Drum Diameter | mm | 1600 | 1600 | 1600 | 1400 | |
| Drum Thinckness | mm | 40 | 32 | 24 | 24 | |
| Wheelbase | mm | 3160 | 3160 | 3160 | 3080 | |
| Diesel Model | YC6B150 | YC6B150 | YC6B120 | YC6108G | ||
| Diesel Power | kw | 110 | 110 | 88 | 85 | |
| Diesel Speed | r/min | 2000 | 2000 | 2000 | 2000 | |
| Fuel Tank Capacity | L | 180 | 180 | 180 | 180 | |
| Hydraulic Capacity | L | 150 | 150 | 150 | 150 | |
| Main Features | ||||||
| 1.Mechanical travel drive,double amplitude,hydraulic vibration and steering with optimal function/price ratio and reliable performance. | ||||||
| 2.Reliable D6114 or YC6108 diesel engine for operation and maintenance. | ||||||
| 3.Two sets of brake devices,a hand brake and foot pedal brake ,assure the machine's safety and dependability. | ||||||
| 4.Spacious and comfortable cab mounted on top quality rubber damping elements. | ||||||
| 5.World advanced technology is adopted for the hydraulic vibration technology,high in reliability,simple and convenient in maintenance and low in cost. | ||||||
| 6.Equipped with padfoot or removal padfoot as option. |
