Xsp Optical Fiber Module

Payment Terms:	T/T, Western Union

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Specifications

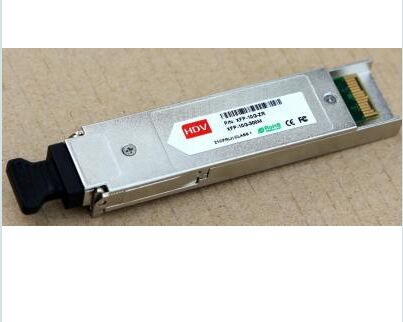

HDV DWDM XFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10G DWDM SDH, 10GBASE-ER/EW and 10G Fiber- Channel applications. The transceiver consists of two sections: The transmitter section incorporates a cooled EML laser. And the receiver section consists of a PIN/APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. HDV DWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, and received optical power and transceiver supply voltage. HDV DWDM-XFP-10-ER/ZR transceiver is 100% compatible with Cisco, HP, Juniper, Foundry, Extreme, Netgear, D-Link, Dell, Brocade.
Key Features
Wavelength selectable to C-band ITU-T grid wavelengths
Suitable for use in 100GHz channel spacing DWDM systems
XFP MSA Compliant
Data rate from 9.95 Gbps to 11.3Gbps
No Reference Clock required
Cold Start up Wavelength Compliance
DWDM-rated EML transmitter and PIN receiver
Link length up to 40km/80KM
Low Power Dissipation 3.5W Maximum
-5oC to 70oC Operating Case Temperature
Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
RoHS compliant and lead free
Standard: -5oC to +70°C
Applications
SONET OC-192&SDH STM 64
10GBASE-ER/EW
40/80 km 10G Fiber Channel
DWDM Networks
Specifications

Form Factor	DWDM XFP
Distance	40km/80km
Data Rate	10G
Low End Case Temperature (°C)	-5°C
High End Case Temperature (°C)	70°C
Diagnostics	Digital
Transmitter	EML
Receiver	PIN
Voltage Supply	3.3V
Connector	LC
