Hongxiang Superhard Material Co., Ltd.

China Manufacturer with main products: Diamond Powder, PCD, PDC, Industrial Diamond Powder, Lab Diamond, Diamond Cutting Powder, Polycrystalline Diamond, Diamond Cutter

Home >Products Catalog > pdc, pcd > pcd button bit insert carbide button cutters

pcd button bit insert carbide button cutters

Inquiry Now

Quick Details

Size: 1916
Type: Abrasive Disc
Model Number: wanke
Brand Name: wanke

Specifications

Product Specification / Models

1. polycrystalline diamond cutter, used for the oil , gas industries

2. high mechanical drill speed

3. high abrasive/impact resistance

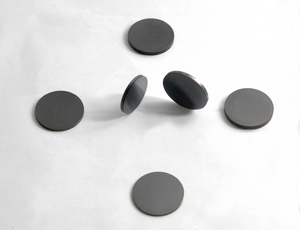

A full range of PDC cutters designed for oil/gas drilling and mining bits, are manufactured under state-of-the-art sintering processes. It consists of a layer of polycrystalline diamond integrally sintered to a tungsten carbide substrate under high pressure and high temperature. PDC cutter combines the hardness and abrasion resistance of diamond with the impact resistance of tungsten carbide, and provides faster, more durable and more cost-effective drilling.

Product Number	Diameter (D)(mm)	Height (T) (mm)	Diamond Thickness (t) (mm)	Diamond Chamfer (mm)
1308	13.44±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1313	13.44±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1608	15.88/16.00±0.03	8.00±0.10	2.30±0.20	0.30±0.10
1613	15.88/16.00±0.03	13.20±0.10	2.30±0.20	0.30±0.10
1908	19.05±0.05	8.00±0.10	2.30±0.20	0.30±0.10
1913	19.05±0.05	13.20±0.10	2.30±0.20	0.30±0.10
1916	19.05±0.05	16.31±0.10	2.30±0.20	0.30±0.10

Advantages

1) With feature of high working efficiency, smooth surface

2) Advanced technics and strict process control

4) Long lifespan and stable performance

5) Competitive price and superior quality

6) Excellent service

Application:

1.For oil drilling

2.For well drilling

3.For geological drilling

4.For coal drilling

5.For hard material drilling

Main products:

1. synthetic diamond and diamond powder

2000,creative product:diamond drill bit,diamond wheel,diamond finger bit etc glass tools.The product is fit for kinds of glass machine,barristerial machine and numerical control machine etc.

2008,research and development product,Mainly include diamond saw blade ,diamond core bit,diamond abrasive fickert etc stone and ceramices tools.

2011,self-develop PCD ,PDC,etc oil and cutting tools products,which mainly used for oil drilling,coal drilling and geological exploration etc.

Established in 1990,Zhecheng Hongxiang Superhard Material Co., Ltd

is a specialized enterprise that engages in the research, production and

sales of various kinds of synthetic diamond and diamond tool,glass tools,which keep ahead in Chinese market. Our target: Advanced technology is the basis of high-quality products.

All of our business is carried out in full compliance with the ISO9001 Certification.
Please contact us if you would like any further information
