Home  >Products Catalog > XHD LLDPE Stretch Film Making Machine/ XHD-55/75 X 1250

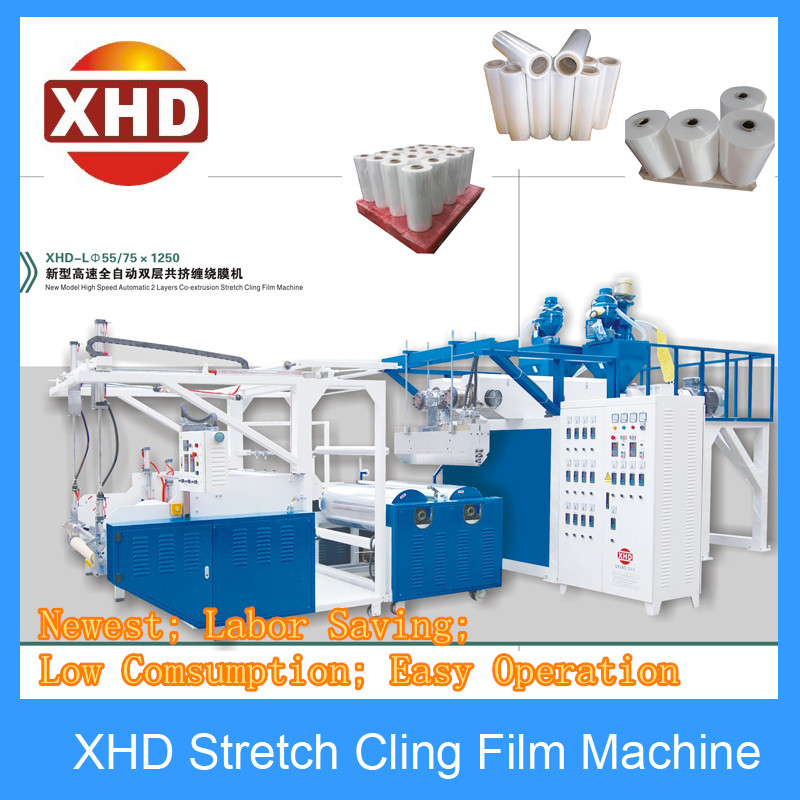

XHD LLDPE Stretch Film Making Machine/ XHD-55/75 X 1250

Supply Ability: 20 Set/Sets per Month
Shipping: 60 days after receiving deposit
Payment Terms: L/C, T/T

Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Warranty: 1 Year
  • Weight: 8 T
  • Dimension(L*W*H): 7500X3200X3000mm
  • Power(W): 78kw
  • Voltage: costomized
  • Model Number: XHD-55/75 X 1250
  • Brand Name: XHD
  • Automatic: Yes
  • Blow Moulding Type: Stretch Blow Moulding
  • Application: Film
  • Condition: New

Specifications

Xinhuida is only specializing in stretch film machine for more than ten years. It enjoys the very good reputation in domestic and oversea's market.



                                                                         --— Because the focus, so professional



Detail Technical Parameter of pe white pallet stretch film machine

Model

XHD-55/75X1250

Layers

double

Screw Diameter

Φ55/75mm

Screw L/D

1:30mm

Screw speed

20-150rpm

Width

200-1000mm/(2*500mm)

Total Power

78KW

Thickness

0.012-0.05mm

Capacity

80-120kg/h

Layer Structure

AB/ABA

Total Weight

8T

Dimension

(L)7500*(W)3200*(H)3000



Details of 1250mm T-die Stretch Film Machine

Model: XHD-55/75 X 1250



Below pictures are selectable parts.



No Item Functions Pictures
1 Vaccum Pump

To suck the air and dust from the die to make sure

the film cling on the cooling roller and transparent


2 Melting Gear Pump

This is to increase or decrease the pressure inside

of screw to make the pressure is stable. So the film can be even and thickness uniformity.

3 Auto Filter Change to change the filter automatically
4 Corona System to lock the edge of film by static type
5 In-line Material Recycling to recycle the wast material automatically



The configuration for Xinhuida stretch film machine

model XHD-55/75 X 1250

Category Quantity Brand
Extruder Unit  set 2 Jwell
Auto-loaders set 2 Xinhuida
T-die Unit set 1 Xinhuida
Cooling Roller Unit pcs 2 (420mm) Xinhuida
Pulling Rollers pcs 10 (80mm) Xinhuida
Rubber Roller pcs 2 (90mm) Xinhuida
Electrical Control Box set 1 Xinhuida
Auto Cutting & Rewinding set 1 Xinhuida
Control System (PLC Control) set 1 Mitsubishi
On Line Recycling Machine set 1 Xinhuida
Temperature Controller set 1 SKG
Cylinder set 1 AIRTAG
Gear Box set 2 Guomao  (1pcs 146# & 1pcs 173#)
Inverter set 1 Senlan
15kw/22kw
Motor set 1 Simens Beide
15kw/22kw



Finished Products of Stretch Film Machine

It is a very good kind of packaging material mostly used in the industrial field,port pallet packaging;

building material packaging; hardware packaging etc. It enjoys the following advantages:

1)     Good tensile strength

2)     Superior anti-pricking ability

3)     High transparency

4)     Good ductility and anti-impact strength

5)     Stable sticky sides etc



Finished Products of Cling Film Machine

It is for all kinds of food package. Fruit, Dishes, Cooked Food and etc.  It enjoys the following advantages:

1)      Food Grade Cling Film

2)      Great for edible items

3)      Safe and non toxic

4)      High strength and durability

5)      Many size available





Useage:

1) The most usage pallet packaging: Such as fertile, cement, chemicalindustrial raw material, building material etc.
2)  Horizontal packaging: Metal pipe, aluminum alloy material, timber etc.
3)  Rotational twist: Rolling paper, carpet etc.
4)  Binding: Glass container, acceptance etc.
5)  Break-bulk packaging: Soybean, grain, plastic particle etc.
6)  Storage packaging: Such as grass.
7)  Manual packaging: It is used in wholesales, journal, printing, electronic product, foodstuff etc.
8)  Ring twist packaging: Type, wire, cable, steel silk etc.



 Introduction of machine grade stretch film machine

    Machine grade stretch film machine mainly use LLDPE,LDPE or recycled LLDPE material to produce one side sticky or 2sides sticky stretch film, cling film, cast stretch film etc, pe white pallet stretch film machine width from 500m to 2000mm, single layer to 2 layers, 3 layers, 5layers and so on. We usually add PIB or liquid glue to make it more stretchable and puncture resistance.



Packaging Condition of pe white pallet stretch film machine

1) Packed fully with EPE foam, blanketry and stretch film.

2) Wire netting fastened at the bottom of the container.



Our Services

   ?

1> One Year After Sale Service for FREE



 2> Hot Line 400-833-5568 24 Hours Available



 3> Technical Support and Installation Video Provided



 4> Engineers is availble to the overseas



 5> Free Trainning for Customer's Operator



 5> High Quality Film Recipe Sharing



 6> Problem Response within 12 huors




 Website :





Search " Dongguan Xinhuida Machinery Co., Ltd" through YOUTUBE. Find More videos about how XHD stretch film machine performance.
