Zhengzhou Ruiyong Machinery Co., Ltd.
China Manufacturer with main products: Briquette Machine, Coal Ball Press Machine, Stone Crusher, Drying Machine, Conveyor, Feed Processing Machinery, Mining Equipment, Vibrating... |
Scraper conveyor
| FOB Price: | 2,500.00 - 6,500.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set/Sets per Year |
| Shipping: | Within 15-20 days after received your payment. |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Complete machine will be packed in wooden case then load into container. |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: ISO9001-2000
- Power(W): 2.2-22
- Model Number: RYSC-35
- Brand Name: RUIYONG
- Structure: Conveyor System
- Material Feature: Heat Resistant
- Material: Stainless Steel
- Type: Vertical Conveyor
- Condition: New
- Conveying distance (m): 10-50
- Machine slot width (mm): 350
- Pitch(mm): 200
Specifications
Specifications

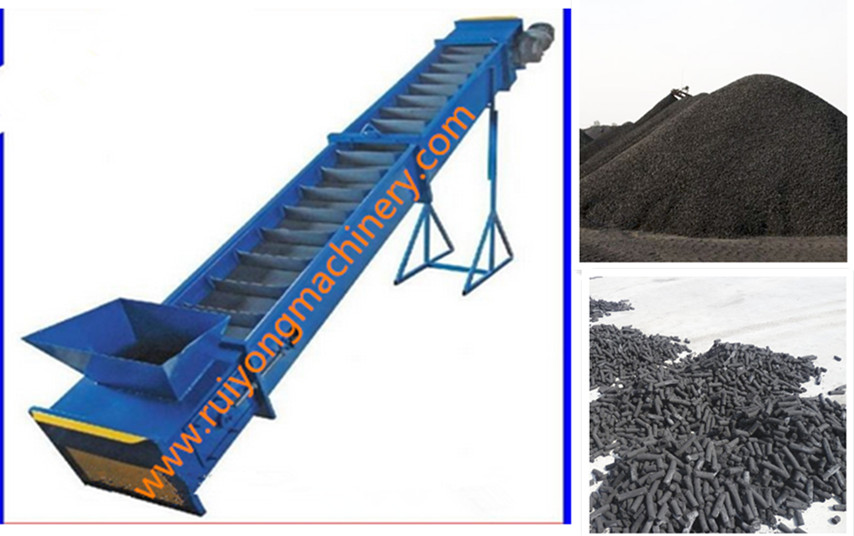

Chain scraper conveyor
1.High strength chain.
2.Good sealed.
3.Transport powder and small granular material.
4.ISO 9001.
chain scraper conveyor
Brief introduction
chain scraper conveyor is R&D by our company that absorbed the international technology. Chain scraper conveyor is used in horizontally (or not more than 15 °) transporting powder or small granular materials. This chain scraper conveyor is reasonable, novel structure, long service life, high reliability operation, energy efficient, sealing, safe and convenient maintenance.
Application
Performance of chain scraper conveyor for transporting powder and small granular material is better than screw conveyor, scraper conveyor and other transport equipments. Chain scraper conveyor are widely used in building, chemical, thermal power, food processing, mining and other industries.
Features:
1,Large throughput,be up to 6m3/h---500m3/h;
2,Low energy consumption, with the aid of frictions between the materials ,the friction force can push the materials forward ,so the power can be saved 40% to 50% than screw conveyor;
3,Good tightness and safety ,reducing the materials to overflow;
4,Long service life. The chain had been specially treated by heat treatment. The quenching process makes the service life of the chain be more than five years.
5,Reasonable arrangement process, material can be feed and discharged from many holes.
Model
30
35
40
50
60
Machine slot width (mm)
300
350
400
500
600
Pitch(mm)
200
200
200
200
250
Conveying distance (m)
10 - 50
Motor model (Kw)
2.2 - 22
