2-8inch 219mm diameter stainless steel pipe and bar bending press machine
| FOB Price: | 40,000.00 - 60,000.00 USD/Set |
|---|---|
| Supply Ability: | 80 Set/Sets per Year |
| Shipping: | Tianjin |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | no packing |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 months
- Certification: ISO, CE
- Weight: 30 tons
- Dimension(L*W*H): 11*3*1.2m
- Power(W): 300 kw
- Voltage: 380V
- Model Number: YWG-7
- Brand Name: Fengliyuan
- Production Capacity: 70 pcs per day
- Application: Energy Supply Pipe
- Pipe Material: Stainless Steel
- Type: Pipe Bender
- Condition: New
- bending radius: 2-10D
- oiperation: PLC
- driver: cylinders
- radius adjusting: hydraulic motors
- clamping: automatics
Specifications
|

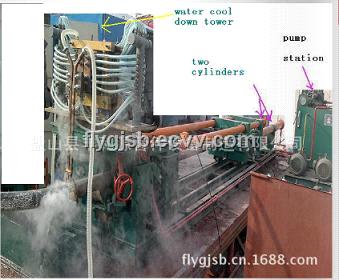

The Main Technical Parameters of The Pipe Bending Machine 1, Master cylinder: OD:299mm, inside diameter: φ250mm diameter of the rod: φ210mm effective stroke: 11 m the max thrust of the 2 cylinders 210T The other small cylinders: φ125mm -2 pieces (for clamping) 2, Hydraulic pump station a, station configuration: 25scy plunger pump 1 set , 7.5KW Motor 1 set ( to converse frequency adjust the speed of the master pump) CB-100 gear pump 1 set , 15KW Motor 1 set ( fast forward and backward, ). 40scy plunger pump 1 set,11kw motor 1 set (to guide clamp wheel, fixture motor) The working speed ; 0-20cm/min , the maximum returning speed:280cm/min 3, The guiding part of the main machine is controlled by four wheels, the pushing board moving on the dovetail groove guiding rails. the clamp holding different size run By the hydraulic motor, it open and closed driven by the oil cylinder, the oil cylinder drive the rocking arm to adjust the bending radius. 4, Medium—frequency power supply (SCR): power:600kw. Quenching transformer: 3000kva. 5, the total power of the machinery: 35KW, 380V or 220V,50or60HZ. 6, Assembly parts a, clamp wheel, fixture made of 45# cast steel b, master fuselage, weldment, the main pushing board are welded board c, screw, chain, standard parts and bearing are national standards d, the guider is dovetail groove slide plate mode |
|
The works and the scope of supply of the supplier 1. Design and manufacture pipe bending machine 2. Guide to install the equipment as the equipment arrives at the factory of buyer 3. Debugging and test run the equipment (three technicians to the buyers factory) 4. Main machine part, hydraulic pump station, heating system. 5. Φ914,Φ762mm,610mm,508mm,457mm,406mm,304mm,219mm clamping device: 1 piece for each size. Φ914 Φ762mm,610mm,508mm,457mm,406mm,304mm,219mm induction heating coils: 1 piece for each size. 6. The equipment foundation drawing, hydraulic principle drawing, electrical diagram, each with 1 copy 7 spare parts for the machine and the heating device |
B Optional items
1 Microcomputer part (PLC) (12000 USD)
Uses Hengstler or Omron encoder to measure oil cylinder speed, In a real-time display , Can also be used for setting the stop when get to a certain distance and set in place after the stop. The angle encoder calculates the bending angle and show on the screen, the bending angles should be preset. Intermediate frequency sensors can be combined with programming system, Through the thermometer and the speed encoder adjust the bent pipe temperature, speed, hydraulic valve to the set temperature, after that the oil cylinder driving steel pipe bending forward, speed mate to the temperature, when bend to the set angle, the intermediate frequency and the master machine stop. Touch screen is Taiwan Weilun 7 inch colorful LCD, Siemens series is used in the programming system. Infrared thermometer is U.S. Reitek thermometer, Temperature range: 250-1650 ℃
