Yanshancounty Fengliyuan Pipe Fittings Equipment Manufacture Co., Ltd.
China Manufacturer with main products: Elbow Machine, Pipe Bending Machine, Tee Machine, Press, Pie Expanding Machine, Beveling Machine, Pipe End Processing Machine, Pipe Tube... |
Home
>Products Catalog > Tee cold making machine > 12 inch 325mm OD carbon steel tee forming hydraulic press

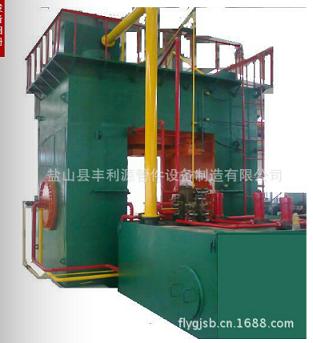

12 inch 325mm OD carbon steel tee forming hydraulic press
| FOB Price: | 60,000.00 - 80,000.00 USD/Set |
|---|---|
| Supply Ability: | 80 Set/Sets per Year |
| Shipping: | 60 days,Tianjin |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | no packing |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 months
- Certification: ISO,CE
- Weight: 40 Tons
- Dimension(L*W*H): 2*1.6*2.4m
- Power(W): 30 kw
- Voltage: 380
- Model Number: YST-8
- Brand Name: Fengliyuan
- Condition: New
- operation: PLC
- pushing mediate: water
Specifications
|
The Main Technical Parameters of The Machine 1 cylinder : A. the upside cylinder(*1):inner diameter 600mm ,stroke 500mm, nominal pressure:28Mpa B.the side-cylinder (*2):inner diameter 500mm stroke 300mm ,nominal pressure:28Mpa C.the ejection cylinder(*1):inner diameter 125mm with ,stroke 200mm ,nominal pressure:28Mpa D. the thrust of the upside cylinder:800 tons the thrust of the side-cylinders:660 tons the thrust of the upside cylinder:30 tons 2 pump station: 63Scy-plunger pump :2 sets 30KW Motor: 2 sets electric valves manipulations (PLC automatic control), water flooding pump:1 set 3 main engine: welded of 60mm and 50mm medium steel sheet. 4 Total power of the machine: 60 KW 5 Weight of the master machine: about 25 tons. |
|
The scope of supply a. frame for the main engine: 1 parts(cylinder:4 bars with 2 blocks of T shaped slide block) b. hydraulic pump station 1 set: 63Scy-plunger pump 2 sets, electric valve 1 set, water flooding pump:1 set, High-pressure oil watch:1 piece, |
