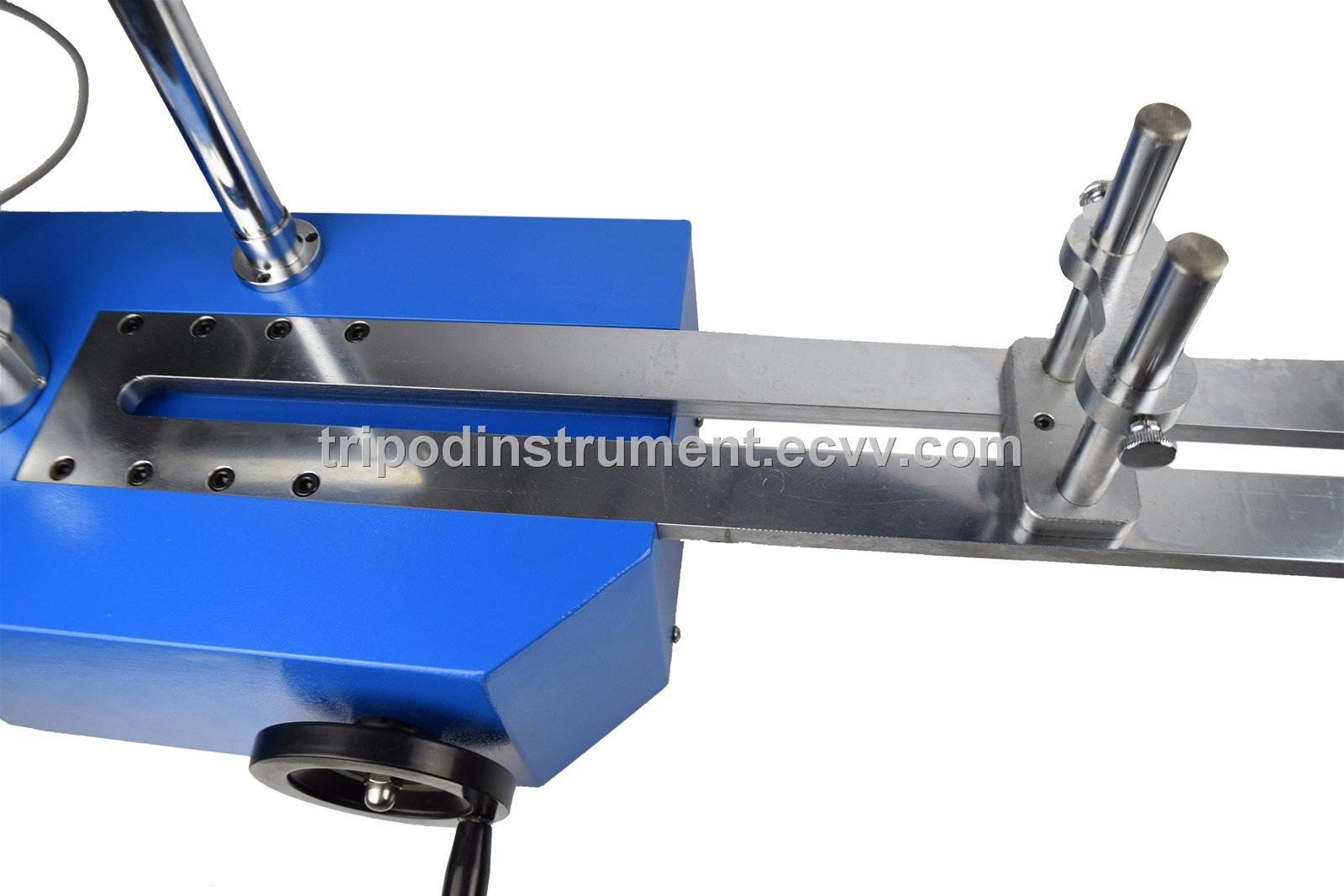

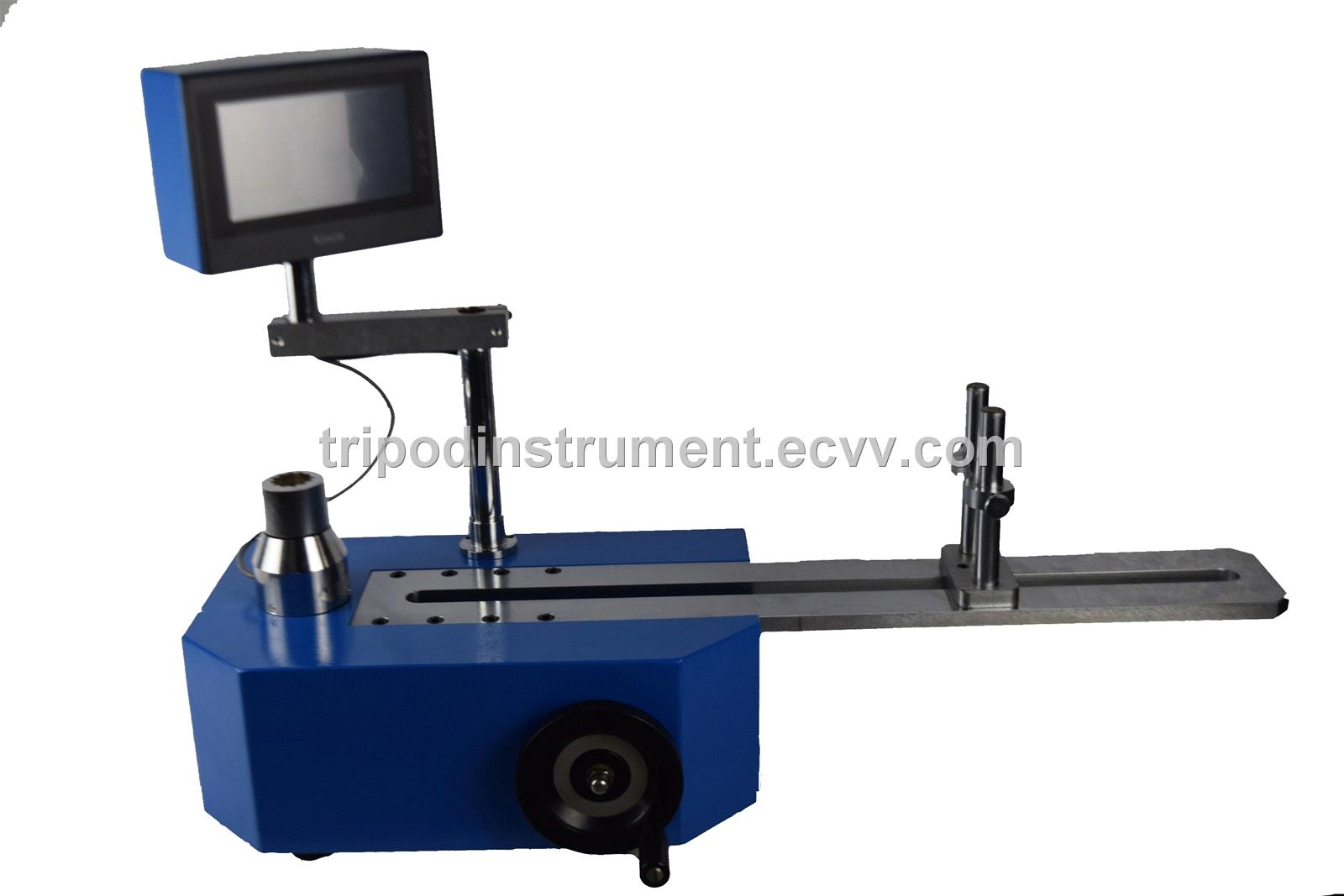

ANJ-M3000 Digital Torque Wrench Tester
| FOB Price: | 5,200.00 - 5,300.00 USD/Set |
|---|---|
| Supply Ability: | 5 Set/Sets per Day |
| Shipping: | 3-7days by express.15~days by shipping |
| Payment Terms: | T/T, Western Union, MoneyGram, Other, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | In wooden box |
Quick Details
- Model Number: ANJ-M3000
- Brand Name: ALIYIQI
- Color: Blue
- length range: 250mm~1800mm
- Height stroke: 150mm
- N.W.: 335Kg
Specifications
Usage
ANJ-M Digital Torque Wrench Tester is an intelligent multifunctional measuring instrument which is designed for testing torque wrench,torque screwdriver.
It main used in testing and calibrating various kinds of Concentration type torque wrench, digital type torque wrench, preset type torque wrench,
torsion screwdriver, screwdriver and all kindsof products involving tighten force instrument. Widely used in electrical manufacturing, mechanical
manufacturing, automotive light industry and in scientific research and testing industry.
Function and characteristics
1. High precision, high resolution, quick sampling speed, full-screen display.
2. Meter display,curve display,curve zoom function and full touch screen display.
3. Adopting high precision torque sensor, with torque direction display.
4. Upper and lower limit value setting, red indicating lights and buzzer audible and visual alarm.
5. Three units can be switched each other (N·m, kgf·cm, Lb·in).
6. Real-time, peak, automatic peak three models of optional switch.
7. System time for setting.
8. Can large storage by USB flash disk.
Specifications
|
Model
Index |
ANJ-M100 |
ANJ-M200 |
ANJ-M300 |
ANJ-M500 |
ANJ-M1000 |
ANJ-M2000 |
ANJ-M3000 |
|
|
Measuring range/Division value |
N·m |
100.0/0.01 |
200.00/0.01 |
300.00/0.01 |
500.00/0.01 |
1000.0/0.1 |
2000/0.1 |
3000/0.1 |
|
Kg·cm |
1021.0/0.1 |
2042.0/0.1 |
3063.1/0.1 |
5105.2/0.1 |
10210/1 |
20420/1 |
30631/1 |
|
|
Ib·in |
886.2/0.1 |
1772.4/0.1 |
2658.6/0.1 |
4431.1/0.1 |
8862/1 |
17724/1 |
26586/1 |
|
|
Dimension |
880mm×350mm×550mm |
1250mm×500mm×800mm |
||||||
|
length range |
130mm～750mm |
250mm～980mm |
250mm～1800mm |
|||||
|
Angle of rotation |
0～60° |
0～360° |
||||||
|
Height stroke |
130mm |
150mm |
||||||
|
Accuracy |
±1% |
|||||||
|
Peak sampling frequency |
2000HZ |
|||||||
|
Power |
AC110-220V/50Hz-60Hz |
|||||||
|
Net weight |
65Kg |
335kg |
||||||
The name and function of each parts
1. LCD touch screen 8. Height adjusting block
2. Mortise 9. Window Indicator
3. Power interface 10. Zero Key
4. Hard switch 11. CPU Indicator
5. Hand wheel 12. Power Light
6. The length of adjusting block 13. LCD Screen Switch
7. Height adjusting nut
