Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Beijing in China
Packaging Details:	Plywood with foam

Quick Details

Model Number: HS318L
Brand Name: Sino Instrument
pressure range: 0-600 bar
Output connection: M20 x 1.5(female) 5pcs

Specifications

Product Description

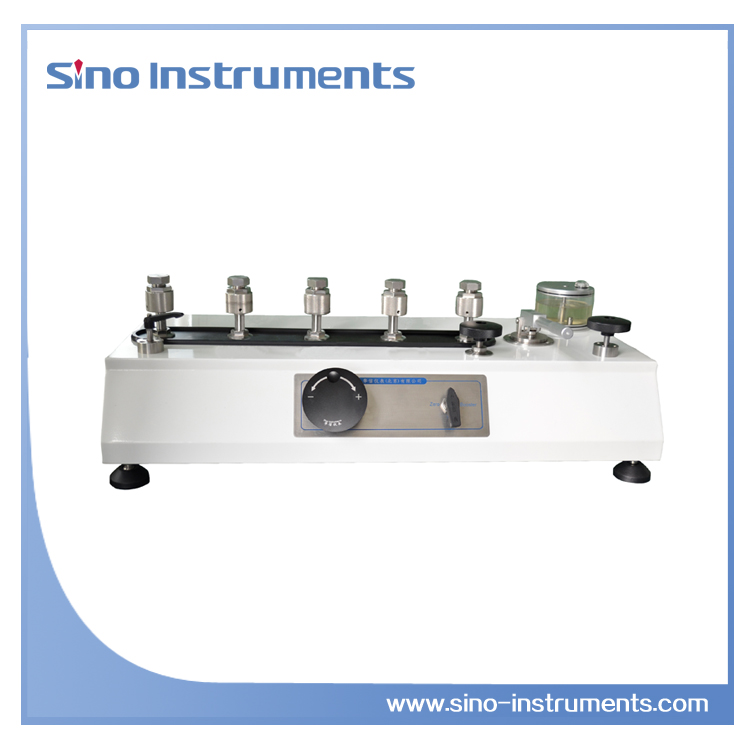

HS318LSteady Servo Electrical Pressure Calibrator adopts gas-liquid push or gas-gas push principle. the extra air sources give active power to pre-pressure for the whole calibrating system, perfectly instead of the heavy and compiex hand work operation. Servo control pressure and dynamic equilibrium design that make the pressure values very exact and stability. Pressure regulator adjust the exact pressure value with the min adjust resolution 1kPa. Very save labor ,only a finger can pressurize to full scale. 5pcs pressure output interface with stainless steel material .that can calibrate four pressure gauges once time. The quick coupling is easy to install pressure instrument without using the wrenches. This instrument is easy to operate and very rapidly generate the required testing pressure, providing precise pressure control, only needs less than 5s to stabilize the pressure. Following the points above mentioned, It's main features is in saving both effort and time, which is very suitable to do heavy & repeat calibration.

Functions
HS318L is suitable for large quantities and repetitive calibrating work. it is widely used in the industries of power, chemical, petrol, metallurgy, metering, etc.

Characteristics
1 Transparent oil cup ,that easy to check the work media
2 Easy to operate and rapidly generate the required pressure by only a finger
3 5pcs output interface .make the calibration more efficient.

Model & Name	HS318L stedy servo electrical pressure calibrator
pressure range	(0~600)bar
working medium	25#transformer oil
stability speed	within 5S each point
Material	steel for main body body:ourput part :stainless steel seals:Buna-N
Output connection	M20 x 1.5(female) 5pcs
weight	26.5kgs
dimensions	730L X 350W X 250H (mm)
