Circular vibrating screen with high efficiency

Supply Ability:	100 Set/Sets per Month
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Containers, export standard

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE ,ISO9001 , IQNET , GOST
Model Number: YA,YK series
Brand Name: vipeak
Application: Ore
Type: Circular
Condition: New
Layer of Screen: 2,3,4
Size of Sieve Pore (mm): 3-50,3-100,3-200
Max. Feeding Size (mm): 300
Capacity (m3/h): 10-80,22-160,32-276,65-586,81-720,90-810

Specifications

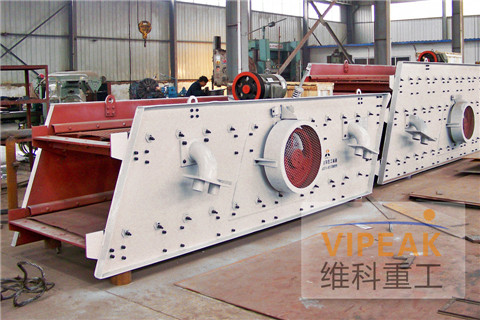

Circular vibrating screen with high efficiency
Raw Materials: River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangue etc.
Application: Circular Vibrating Screen is widely used in mining, building materials, transportation, energy, chemical industry product classification, is the ideal equipment for crushing and screening units.

Circular Vibrating Screen earns this name by reason of its approximately circular movement. It is of multilayer and high efficiency. The eccentric shaft vibration exciter and partial block help to adjust amplitude. This kind of screen is of long streamline, many specifications and clear screening for different specifications.

Characteristics and advantages of Circular Vibrating Screen:
It uses eccentric block to produce strong exciting force. Crossbeam and the main body of the screen are connected with high strength screw bolts. So they have the features of simple structure and easy maintenance. It adopts tire clutch with capability of flexible connection and stable operation. It adopts the structure of small amplitude, high frequency, large obliquity to make the screen hold the capability of high efficiency, large handling capacity, long life span, low consumption, and little noise.

Working principle of Circular Vibrating Screen :
Motor makes vibration generator eccentric block high speed rotate by triangular belt, eccentric block generates large centrifugal force when revolving, circular motion is made by revolving straining box, the material on the oblique screen surface dose constantly throwing motion under the impulse given by straining box, the standard size of material goes through the screen while material shaking on the surface of the screen, then the whole process is completed.

Model:YA,YK series
Layer of Screen:2,3,4
Size of Sieve Pore (mm):3-50,3-100,3-200
Max. Feeding Size (mm):300
Capacity (m3/h):10-80,22-160,32-276,65-586,81-720,90-810
Model of Motor:Y160M-4,Y160L-4,Y180M-4,Y200L-4,Y225S-4,Y225M-4
