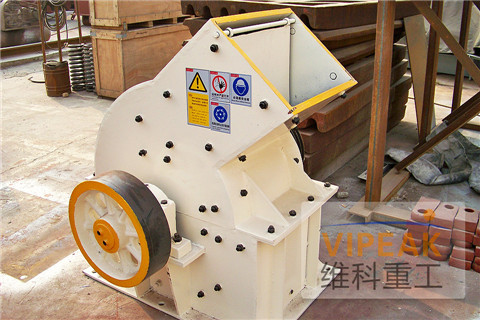

Hammer Crusher with high rotation speed

Supply Ability:	100 Set/Sets per Month
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

LE Series Jaw Crusher

Price:1.00-9,999.00 USD/Stone

Min. Order:1 Stone
HAMMER CRUSHER

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Containers, export standard

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE ,ISO9001 , IQNET , GOST
Weight: 0.8,1.2,1.5 ,3.8 ,5.5
Model Number: PC series
Brand Name: vipeak
Capacity(t/h): 5-1600 tons/hour
Power(W): 4P-11,4p-18.5,4P-22,4P-55,4P-75
Application: Coarse, secondary, third Crushing
Type: Hammer Crusher
Condition: New
Feed material: medium-hard, hard, brittle, tough
Material feed size: < 400mm
The Final Fineness: <15mm
Material of Crushing tools: manganese steel

Specifications

Working Principle of Hammer Crusher:

The motor drives the rotor rotates of the Hammer Crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the Hammer Crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the Hammer Crusher for being re-crushed until they reached the required size.

Applications: Coarse, secondary, third Crushing
Field of application: Agriculture, biology, construction materials, glass / ceramics, mining, mineralogy, metallurgy
Feed material: medium-hard, hard, brittle, tough
Size reduction principle: pressure
Material feed size:< 400mm
The Final Fineness:<15mm
Material of Crushing tools: manganese steel
Durability: depending on feed material

Specification and Technical Parameter

	Hammerhead quantity	Input Size (mm)	Output Size (mm)	Capatity (t/h)	Power (kw)	Weight (t)
	16	<100	<15	5-10		0.8
	20	<100	<15	8-15	4P-18.5	1.2
PC600×400	20	<220	<15	10-25	4P-22	1.5
PC800×600	24	<350	<15	20-50	4P-55	3.8
PC800×1000	20	<400	<15	20-75	4P-75	5.5

Note: hammer mill for limestone
