Aoling CNC Technology Co., Ltd.
China Manufacturer with main products: CNC Cutting Machine, Metal Cutting Machine, CNC Plasma Cutting Machine, Fiber Laser Cutting Machine, CNC Pipe Cutting Machine, Welder, Gantry... |

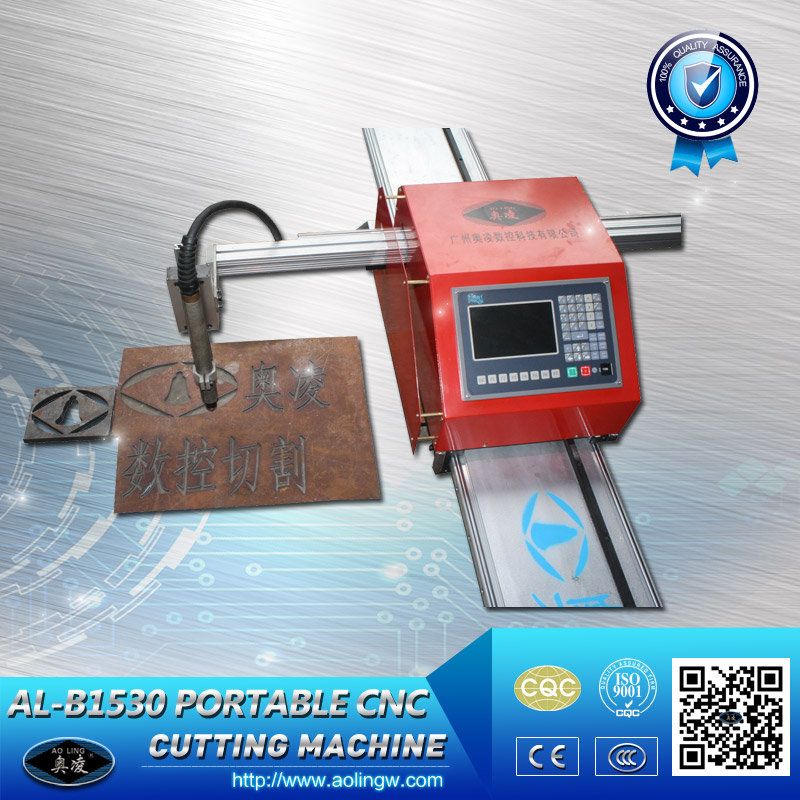

portable cnc plasma / flame cutting machine for metal plate
| FOB Price: | 3,000.00 - 8,000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set/Sets per Month |
| Shipping: | by sea |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | wooden package |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: CE
- Dimension(L*W*H): customized
- Rated Power: 180W
- Voltage: 380V
- Model Number: AL-B1530
- Brand Name: Aoling
- Condition: New
Specifications
Brief introduction
This kind of portable cnc plasma and flame cutting machine is specially developed for steel plate cutting,2 kinds of cutting modes are provided:plasma cutting and flame cutting,working size can be customized upon requirements,this portable cnc plasma and flame cutting machine is characterized of easy operation,compact structure and low cost.It is suitable for large, medium and small mines, widely used in automobile, shipbuilding, engineering machinery, agricultural machinery, suitable for carbon steel (flame cutting), and stainless steel.
Features- 1.Good Working stability, high frequency interfere effectively plasma, lightweight portable.
- 2.Support two cutting ways of flame and plasma.
- 3.Economic benefits, the structure and design is contracted. it adopts humanistic positive man-machine conversation and operate easil.
- 4.Cutting has high quality, high effect level, high precision.
- 5.Programmable cutting arbitrary shape parts of line and arc.
- 6.Dynamic and static graphic display, easy to learn. Can convert CAD file to program file in computer, through USB flash drive transmits to machine to realize cutting all kinds' graphs. And also can program and operate directly on the machine.
- 7.English and Chinese interface can free to convert.
- 8.Pre-sale will train and after-sale will track service.
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, thus is widely applied in industries such as machinery, automobile, shipbuilding.
Technical Data|
Voltage |
380v |
|
Frequency |
50HZ / 60HZ |
|
Rated Power Supply |
180W |
|
LCD Display Dimension |
7.0 Inches |
|
Effective Cutting Width(X axis) |
1250mm |
|
Effective Cutting Length (Y axis) |
2000mm, 2500mm,3000mm |
|
Cutting Speed |
300mm/s |
|
Plasma Cutting Thickness |
2--40mm ( Depends on plasma power source capacity) |
|
Flame Cutting Thickness |
6--150mm |
|
Cross Beam Length |
1500mm |
|
Longitudinal Rail Length |
2500mm,3000mm,3500mm |
|
Gas Pressure |
0.6- 0.8Mpa |
|
Oxygen Pressure |
0.6-0.8 Mpa |
|
Cutting Gas |
Acetylene/Propane/oxygen |
|
Plasma Power Source |
Ruiduncnc 45A/85A/105A |
|
Cutting Mode |
flame and plasma |
|
Ignition device |
Auto ignition device |
|
Cutting precision |
±0.5mm |
|
Control accuracy |
±0.01mm |
|
Working Temperature |
-10°C-60°C |
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
