Wind Solar Hybrid Charge Controller 5KW 48V

Supply Ability:	500 Piece(s) per Week
Shipping:	Delivery Time: 5 days after payment, Port: Qingdao, Tianjin, Shanghai, Ningbo, Shenzhen Shipment
Payment Terms:	T/T, Western Union, MoneyGram, PayPal

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	two carton cases, controller in one case, dump load in another case Controller package size: 575*43

Quick Details

Maximum Current: 110A
Rated Voltage: 48V
Application: Wind Controller
Brand Name: Deming
Charging Mode: PWM
Model Number: FKJ-B(PWM)-5KW
Wind turbine rated power: 5KW
Wind turbine max. power: 10KW
Solar panel power: 1.5KW
Battery Bank Voltage: 48Vdc
Function: Rectifier,charge, control
Display mode: LCD
PWM constant pressure voltage: >56Vdc
3-phase load voltage of the wind turbine: 58Vdc
Wind turbine recovery charging voltage: 54Vdc
Low-voltage of the battery: 40Vdc

Specifications

Specifications

1.Equipped with external dump load
2.LCD display
3.Optional remote communication
4.Certificates: CE & Patent
Wind Solar Hybrid Charge Controller 5KW 48V

Product Overviews

FKJ-B model Product Characteristics

1. the product can be manufactured in accordance with either JB/T6939.1-2004 industrial standard, GB/T19115.1-2003 national standard or users' technical requirements.

2. Adopt two sets of control systems, PWM constant pressure system and three-phase load discharging system.

3. PWM constant pressure control is 120% of the rated power of the wind turbine generator. In case of exceeding the scope of PWM constant pressure power, the three-phase load discharging will automatically start immediately to ensure safe operation of the overall wind turbine generation system.

4. under the circumstances of decoupling and damage of the battery, the three-phase load discharging will automatically start to avoid the idle run of the wind turbine generator and the occurrence of runaway accident.

5. PWM control: under the conditions of strong or super-strong wind, ensure battery charged by the wind turbine generator under constant voltage and current.

6. It has reverse connection, anti-decoupling and damage-resisting protection of the battery.

7. over-charging protection of the battery: When the battery is full (the battery pressure reaching 125% of the rated pressure), the controller will automatically carry out three-phase load discharging to stop charging battery.

8. Auto recovery of battery charging: When the battery pressure reduces to 108% of the rated pressure, the three-phase load discharger will stop load discharging to automatically recover battery charging.

9. the inside of the controller is equipped with lightening protection device. Contain the transit over voltage penetrating into the wind turbine generator within the voltage scope bearable to the equipment or system or conduct the strong lightening current into the earth to avoid equipment damage posed by lightening impact.

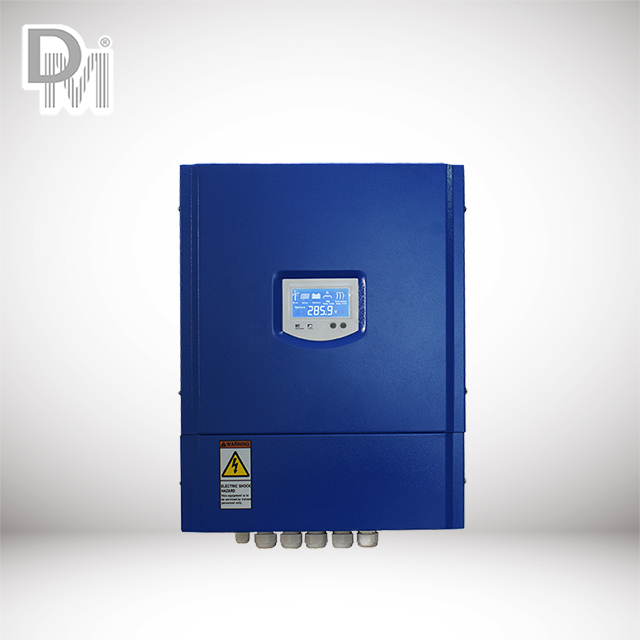

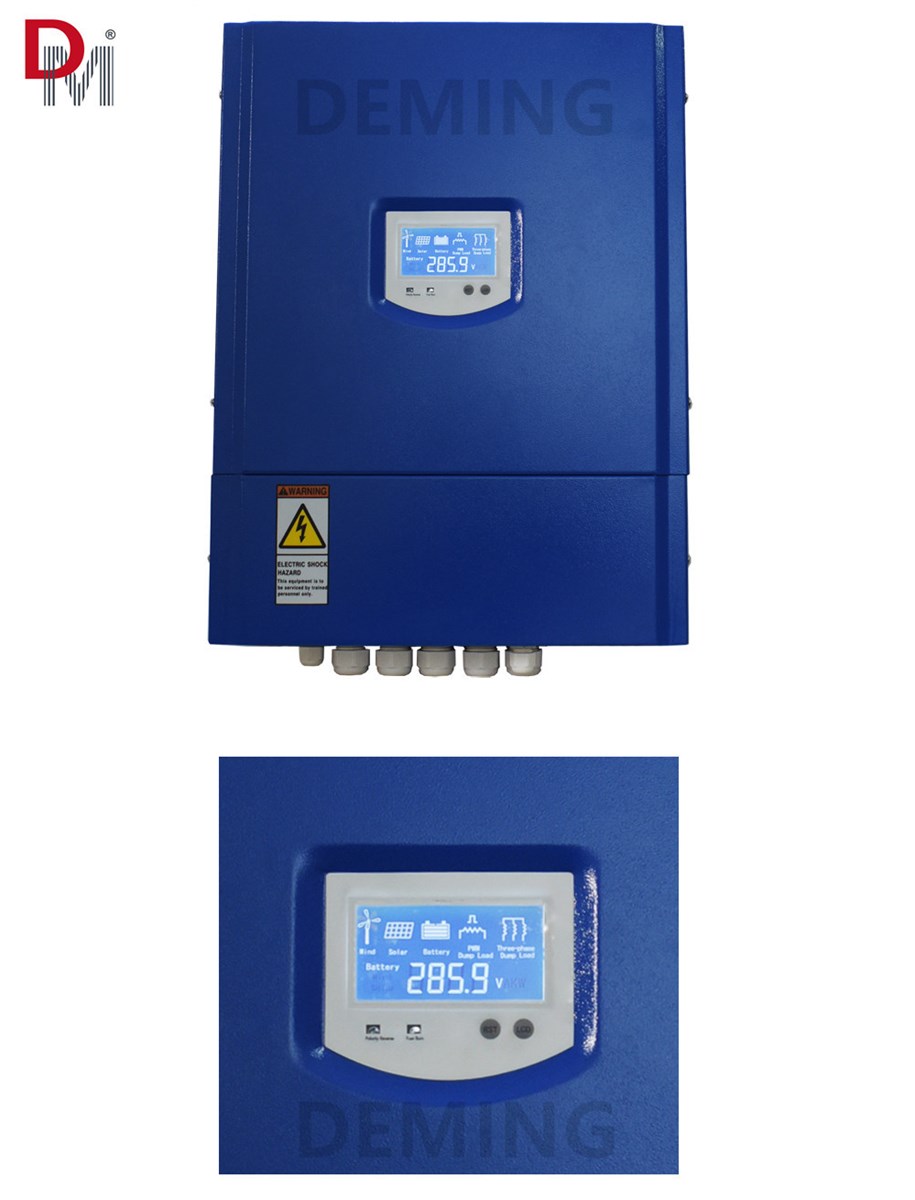

10. the big screen LCD display. Clearly present the working status of the wind turbine, solar panel, battery and controller.

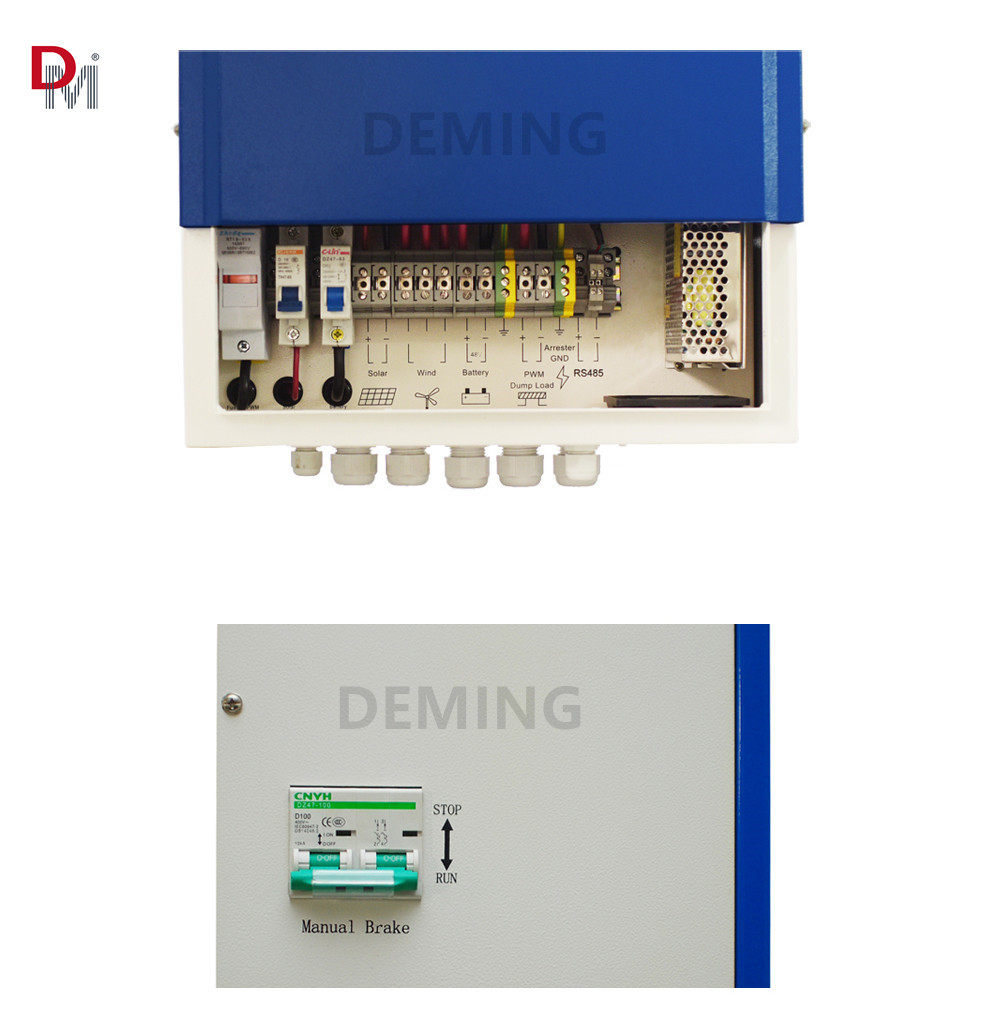

11. the controller is equipped with manual three-phase load discharging switch; the user may use it according to actual circumstances. When using this switch, the wind turbine generator will forcibly carry out three-phase load discharging.

12. Optional communication Mode:RS232,RS485,GPRS,USB,RJ45 ect, Can monitor multiple devices running.

Technical Parameters of the FKJ-B (PWM) off - Grid Wind Solar Controller 5KW

Type	*5KW-48Vdc*	5KW-120Vdc	5KW-240Vdc
Wind turbine rated power	5KW	5KW	5KW
Wind turbine max. Power	10KW	10KW	10KW
Solar panel power	1.5KW	1.5KW	1.5KW
Battery	48Vdc	120Vdc	240Vdc
Function	Rectifier,Charge, control
Display mode	LCD
Display content	Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current
PWM constant pressure voltage	>56Vdc	>135Vdc	>280 Vdc
3-phase load voltage of the wind turbine	581Vdc	1452Vdc	2905Vdc
Wind turbine recovery charging voltage	541Vdc	1352Vdc	2805Vdc
Solar controller stop charging voltage	581Vdc	1452Vdc	2905Vdc
Solar restore charge voltage	541Vdc	1352Vdc	2805Vdc
Low-voltage of the battery	401Vdc	1002Vdc	2005Vdc
Self-provided connecting wire of the battery	>20mm2	>10mm2	>6mm2
PWM fuse	125A	63A	40A
Solar fuse	32A	16A	10A
Charging fuse	160A	63A	50A
Work environment temperature	-30-60C
Relative humidity	<90% No condensation
Noise (1m)	<40dB
Degree of protection	IP20(Indoor)
Cooling method	Forced air cooling
*Communication interface (Optional)	RS485/USB/GPRS/Ethernet
*Temperature compensation(Optional)	-4mv/C/2V,-35C~+80C, Accuracy:1C
Size of the controller	500440290 mm
Weight of the controller	21 Kg
Size of the load	660510450 mm
Weight of the load	31 Kg

*above parameter only for reference

1. Could be custom made to user specifications. 2, Could have solar power control subject to user demand.
