ANL-2 Digital Torque Meter
| FOB Price: | 400.00 - 500.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Day |
| Shipping: | 3-7 days by express,15~days by shipping |
| Payment Terms: | T/T, Western Union, MoneyGram, Other, Paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |

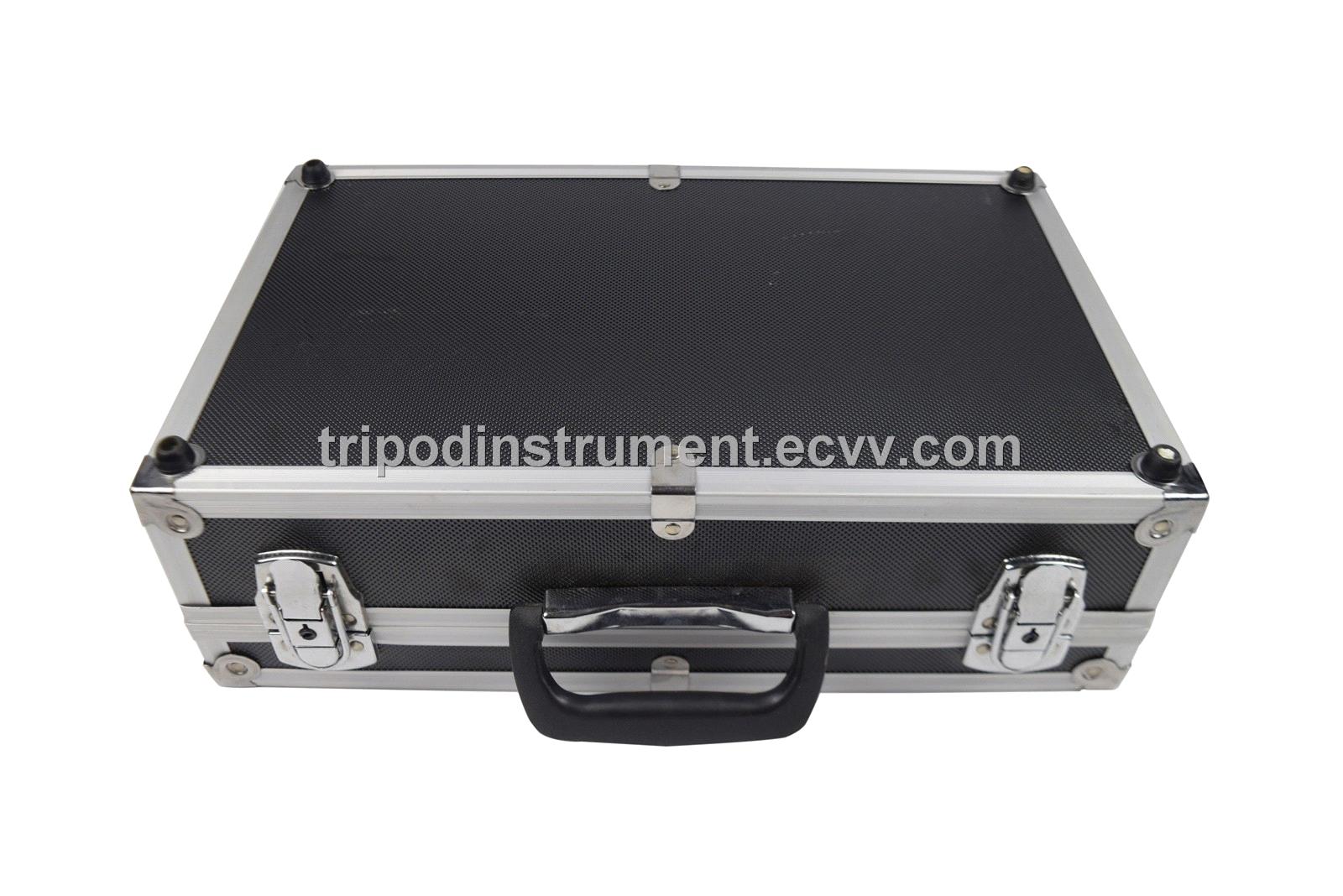

| Packaging Details: | In a box aluminum alloy box ,then in a wooden box |
Quick Details
- Model Number: ANL-2
- Brand Name: ALIYIQI
- Precision: 1%
- Power: 8.4V 1.2V * 7
- Charging Time: 4~6 hours
- Size: 44*38*19 cm
- G.W.: 6 kg
Specifications
Function
Digital torque meter is an intelligent multi-functional measuring instrument which is designed for testing various kinds of torque. It main used in testing and
calibration various kinds of electric pneumatic screwdriver set, the torque of torque wrench, all kinds of products refer to testing of screw down force, parts
torsion destructive testing etc. With features of simple operation, high precision,easy to carry, complete functions etc. It's widely used in various kinds of electric, light industry, machinery manufacturing,research institutions, etc.
Specifications
|
Type Index |
With printer |
ANL-1P |
ANL-2P |
ANL-3P |
ANL-5P |
ANL-10P |
ANL-20P |
|
No printer |
ANL-1 |
ANL-2 |
ANL-3 |
ANL-5 |
ANL-10 |
ANL-20 |
|
|
Measuring range / Division value |
N·m |
1.0000/0.0001 |
2.0000/0.0001 |
3.0000/ 0.0001 |
5.0000/ 0.0001 |
10.000/ 0.001 |
20.000/ 0.001 |
|
Kg·cm |
10.210/ 0.001 |
20.421/ 0.001 |
30.631/ 0.001 |
51.052/ 0.001 |
102.10/ 0.01 |
204.21/ 0.01 |
|
|
Lb·in |
8.862/ 0.001 |
17.724/ 0.001 |
26.586/ 0.001 |
44.311/ 0.001 |
88.62/ 0.01 |
177.24/ 0.01 |
|
|
Precision |
±0.5% |
||||||
|
Peak Value Sampling Frequency |
2000HZ |
||||||
|
Power |
8.4V 1.2VX7 Ni-MH Battery group |
||||||
|
Charging Time |
4～6 Hours |
||||||
|
Continuous using time of battery |
About 10 Hours |
||||||
|
Battery life |
≥300 times |
||||||
|
Size |
With printer: 230mm×95mm×180mm No printer: 230mm×70mm×125mm |
||||||
|
Net Weight |
With printer: 4KG No printer: 3KG |
||||||
|
Power adapter |
Input: AC 110-220V 50HZ Output: DC 10V 300mA |
||||||
Main features
1. High precision, high resolution, quick sampling speed, full-screen display.
2. Adopting high precision torque sensor, with torque direction display.
3. Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.
4. Three units can be switched each other (N·m, Kgf·cm, Lb·in).
5. Real-time, peak, automatic peak three models of optional switch.
6. Use USB interface and PC communications, synchronous test function can connect to the computer, computer
synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.
7. Peak holding, remove automatically function, remove time to set freely.
8. Large storage, can save 99 groups of test data.
9. Without automatic shutdown function, time can be set freely.
Product schematic
Packing list
|
NO. |
Name |
Quantity |
|
1 |
Digital torque meter body |
1set |
|
2 |
Torque testing head |
1 Pc |
|
3 |
Bumper |
Add assembly 1 set, total 5 sets |
|
4 |
The knurling footing |
2 Pcs |
|
5 |
The bakelite footing |
4 Pcs |
|
6 |
Power adapter |
1 Pc |
|
7 |
Straight join line |
1 Pc |
|
8 |
Mating Software CDS |
1 Pc |
|
9 |
Manual |
1 Pc |
|
10 |
Product inspection certificate |
1 Pc |
|
11 |
Product warranty card |
1 Pc |
