Banana pi BPI-G1 WIFI,BT4.0,Zigbee smart home gateway board
| Supply Ability: | 1,000 Piece/Pieces per Month |
|---|---|
| Shipping: | within 3 days via dhl.fedex.ems |
| Payment Terms: | T/T, Western Union, Other, PAYPAL |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | standard packing |
Quick Details
- Operating Temperature: -15 ~ 75
- Dissipation Power: 25W
- Supply Voltage: DC 5V
- Application: Electric Toy
- Type: Drive IC
- Model Number: Banana pi BPI-G1
- Brand Name: banana pi accessories
Specifications
Banana pi BPI-G1 WIFI,BT4.0,Zigbee smart home gateway board
CPU
A31S ARM Cortex-A7 quad-core,256 KB L1 cache 1 MB L2 cache
GPU
PowerVR SGX544MP2
Memory (SDRAM)
1GB DDR3 (shared with GPU)
Onboard Storage
TF card (Max. 64GB) / MMC card slot
Onboard Network
10/100/1000 Ethernet RJ45, WIFI onboard
Video Input
A CSI input connector allows for the connection of a designed camera module
Video Outputs
HDMI, CVBS , LVDS/RGB
Audio Output
3.5 mm Jack and HDMI
Power Source
5 volt via MicroUSB(DC In Only) and/or MicroUSB (OTG)
USB 2.0 Ports
4 USB PORT
Buttons
Reset&Power button
GPIO(2X20) pin
GPIO,UART,I2C bus,SPI bus with two chip selects,
LED
Power Key & RJ45
Remote
IR (Optional)
OS
Android and Linux etc. OS
Product size
92 mm × 60mm
Weight
48g
working temperature range
-15~75 C
Type: BPI-G1
Original BPI-G1 Banana Pi G1 Gateway Smart Home Control Center on-board WiFi Bluetooth Zigbee Open-source development board

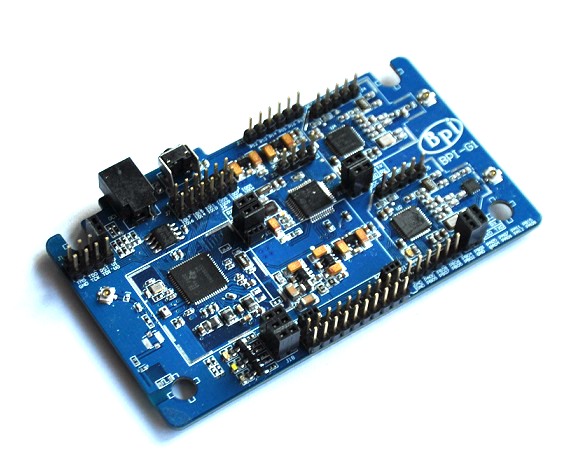

What's BPi-G1
BPI-G1 is an integrated IEEE802.11 b / g / n (WIFI wireless network), IEEE802.15.4 (Zigbee), IEEE 802.11-2007 Standard (Bluetooth Low Energy4.0) development board.
It is very easy to put these wireless protocol seamlessly together, you can exchange any different transport protocols, and three kinds of wireless protocols are integrated by three single-chip SOC, you can easily create your own Internet of things (IoT).
WIFI part of which is the use of TI's CC3200, which is a high-performance ARM? Cortex?-M4 wireless SOC, internally integrated TCP / IP protocol stack, simply use the BSD Socket can connect to the Internet.
The Zigbee is used TI CC2530, which integrates wireless capabilities and enhanced 8051 core SOC, TI after years of improvement, it is already quite mature and stable, TI's Z-stack has achieved Zigbee 2007 / Pro, you can use the 16's short address, you can use the 64-bit long address communication, face large local interconnect systems, advanced security encryption and mesh network structure can easily cope.
Bluetooth 4.0 (BLE) using TI CC2540 / 1, an integrated BLE stack and enhanced 8051 core, low-power wireless SOC, at present, most mobile phones have support for Bluetooth 4.0, both as a wearable device, or mobile interactive Accessories, CC2540 can be easily completed.
Meanwhile BPI G1 also incorporates a high-performance STM32 ARM? Cortex?-M3 microcontroller, which will help you deal with time-consuming data or transit, the three wireless SOC coordinated. Therefore, the use of BPI G1 can help you quickly achieve a variety of things DIY design.
Comply with OpenGL ES 2.0, OpenCL 1.x, DX 9_3
CAN bus,ADC,PWM,+3.3v,+5v,ground.
