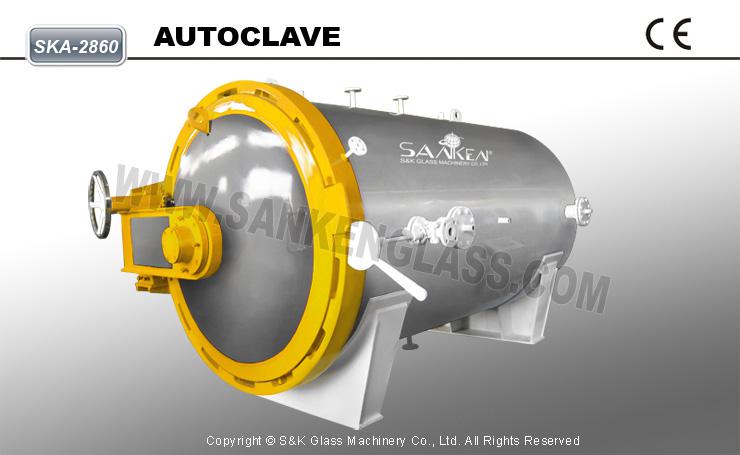

autoclave used for glass laminate

Shipping:	90days
Payment Terms:	T/T

Inquiry Now

glass washing machine

Price:

Min. Order:
Insulating Glass Production Line

Price:135000.00-140000.00 RMB/Set

Min. Order:1 Set
Glass Cutting Machine

Price:

Min. Order:
3D/5D/Wooden & Marble Design Pattern Transf...

Price:12000.00 USD/Set

Min. Order:1 Set
Glasswool Production Line

Price:

Min. Order:

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Export packing

Quick Details

This machine will melt the PVB film and combined two layers or more than two layers glass by high temperature and high pressure.

Specification of Autoclave Glass Machine:

Cauldron body steel shell effective inside diameter: 3000mm

Processed glass extreme breadth: 2500mm

Processed glass greatest length: 6000mm

The processed glass is most light-sized: 350*350

Working pressure: 0--1.25Mpa

Safety valve opening pressure: 1.3Mpa

Operating temperature: 0-135 °C

Design temperature: 150 °C

Actuating medium: Compressed air (in cauldron temperature 5 °C-7 °C)

In cauldron gauge: 1200mm (basis customer request)

Heat preservation way: In keeps warm,

thickness 50-100mm

Opens the door the way: Electrically operated, opens the door left (toward opens left facing cauldron gate)

Total output: 114KW (energy conservation)

dimensions: 7500*3600*3250mm (L*W*H)

Material of Autoclave Glass Machine:

Autoclave gate and body: 16MnR

Heater: Gold-plated midwave infrared preheater pipe

Full-pressure system: Rubber seal packing collar

Thermal insulation material: Salty cotton and kapok and aluminum silicate

Chiller: Seamless steel pipe finned tube entire volumetric heat melt galvanization
