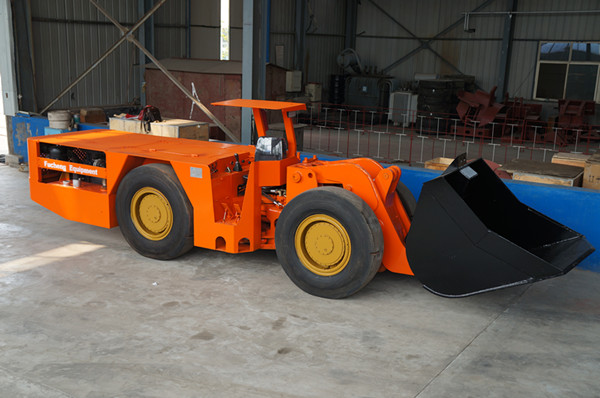

FCYJ-2D underground loader used for mining made in China
| FOB Price: | 90,000.00 - 130,000.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set/Sets per Month |
| Shipping: | 15 WORKING DAYS |
| Payment Terms: | L/C, T/T |
Related products from verified members
-
Price:8,000.00-18,000.00 USD/SetMin. Order:1 Set -
Price:12,000.00-18,000.00 USD/UnitMin. Order:1 Unit
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | 40ft Standard Container |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Condition: New
- Model Number: FYCJ-2D
- Brand Name: FUCHENG
Specifications
Main Technical Parameters
|
Engine: DEUTZ F6L912 63KW |
Torque Converter: C272 |
|
Transmission System: RT20326 |
Drive Axle Type: NO-SPIN |
|
Braking System: Working Braking, Parking Brake |
Bucket Capacity:2 m3 |
|
Maximum Lifting Height: 3740mm |
Min. Ground Clearance:250mm |
|
Total Weight: 12T |
Gradeability: 16° |
|
Maximum Traction: 100KN |
Max. Shovel Force: 80KN |
|
Hydraulic Tank Capacity: 156L |
: 0-10km/h |
|
Steering Angle: ±33° |
Min. Turning Radius:5200mm |
|
Max .Discharge Height: 1600mm |
|
|
Dimensions(Length* Width*Height): 7300 * 1500 * 2050 |
|
Features:
1.FCYJ-2D Underground Diesel scooptram adopts Germany Deutz F6L912 Engine, driving system adopts American DANA Torque
converter and gearbox, which is of easy operation and smooth running.
2.The braking system adopts hydraulic double pipe working system, and equipped with multi-disk wet braker, self-developed anti-skid
differential mechanism of NO-SPIN, performs rather well even in bad conditions like harsh, high water saturation environments and
muddy tunnel.
3.The main components of the hydraulic system adopts well-known manufacturers ' products both at home and abroad, manual
operating diverter valve control the steering. Using pilot valve equipped with ergonomics handle to control the bucket arm lifting and
bucket tilting.
4.Elaborate designed and manufactured electric scooptram has beautiful shape and high work efficiency. Mainly used for mine,
loading and transporting the loose material which is left after bursting. It can also be used for tunnel engineering such as
underground railway, highway and water conservancy, especially suitable for workingplane of poor work conditions , narrow working
platform, low and muddy working face.
