Home >Products Catalog > DIN 3356 Cast Steel Y-Strainer (YG41H)

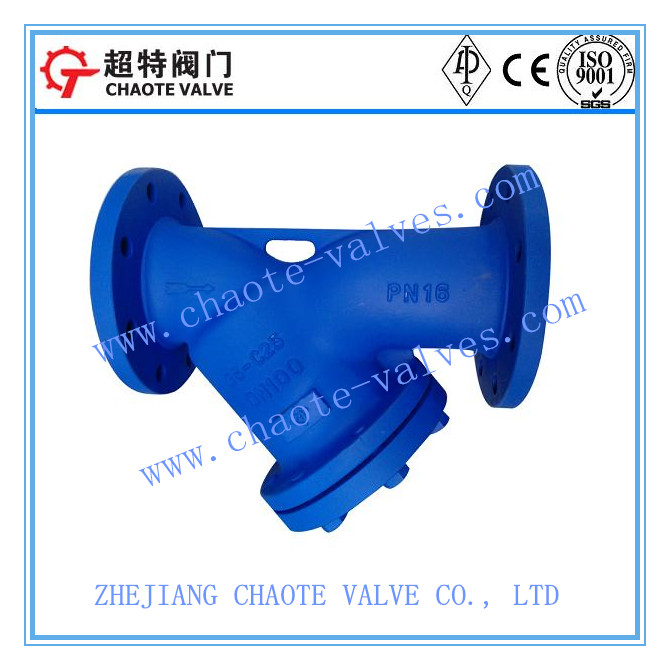

DIN 3356 Cast Steel Y-Strainer (YG41H)

FOB Price:	25.00 - 250.00 USD/Set
Supply Ability:	1,000 Set/Sets per Month
Shipping:	20days
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Plywood cases

Quick Details

Brand Name: Chaote or OEM
Model Number: YG41H
Port Size: Ningbo/Shanghai port
Material: Cast Steel GS-C25, S.S304, S.S316
Pressure: Pn16,Pn25,Pn40
Standard or Nonstandard: Standard
Design Standard: DIN 3356
Face to Face: DIN 3202
Material: Cast Steel GS-C25, S.S304, S.S316
Pressure Rating: Pn16,Pn25,Pn40
Size: Dn15 to Dn300
Connection: Flanged End RF
End Flange Dimension: DIN 2543-2545
Test Standard: DIN En 12266

Specifications

Cast Steel Y-Type Strainer: Design Standard DIN 3356, Face to Face DIN 3202, Material Cast Steel GS-C25, CF8, CF8M, Pressure PN16 to PN40, Flanged RF DIN 2543-2545, Size 1/2" - 12", DIN EN 12266 Tested.

Technical Specifications:

Design and Manufacture: DIN3356, BS160, BS5160

Face to Face Dimension: DIN3202 or ANSI B16.10,

Flanged Dimension: DIN2543-2545 or ANSI B16.5

Socketed Ends to ANSI B16.11

Inspection and Test: DIN3230, API 598 or MSS SP-117

Size Range: 2" to 12" (DN50~DN300)

Pressure Ratings: Class 150LB, Class 300LB (PN16~PN40)

Materials Available in: CS-G25, CF8, CF8M, CF3, CF3M
