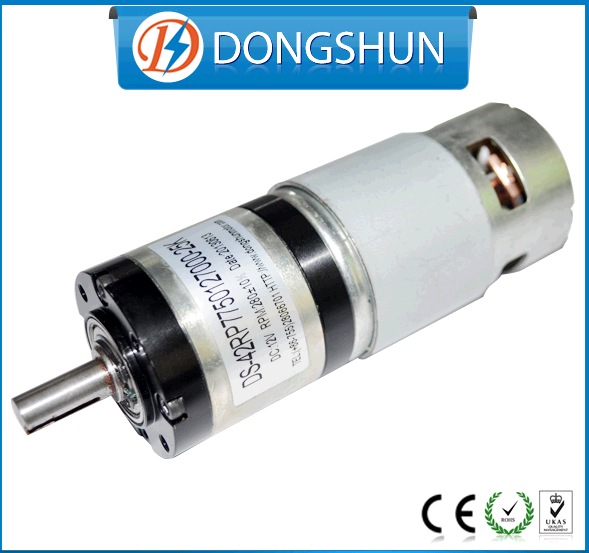

DS-42RP775 High Torque Low Speed 12v 24v DC Planetary Gear Motor
| FOB Price: | 16.00 - 20.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece(s) per Month |
| Shipping: | during 35days |
| Payment Terms: | T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | size:36.5*31*H17cm 60pcs/CTN G.W.:13Kg |
Quick Details
- Efficiency: IE 1
- Voltage(V): 12v/24v
- Output Power: 6w-35w
- Continuous Current(A): 0.3~2A
- Speed(RPM): customized
- Protect Feature: Explosion-proof
- Commutation: Brush
- Construction: Permanent Magnet
- Torque: 1.5kgf.cm~80kgf.cm
- Type: Gear Motor
- Certification: CCC,CE,ROHS,UL
- Usage: Home Appliance
- Model Number: DS-42RP775
- Brand Name: Dongshun
- gearbox diameter: 42mm
- gear material: powder metal,plastic,steel
- gearbox: planetary gearbox
- motor type: dc motor 775
- motor speed: 3000rpm~9000rpm
- output speed: customized
- shaft: center shaft
- shaft craft: customized
Specifications
DS-42RP775 high torque low speed 12v 24v DC planetary gear motor
1. Typical applications: Auto shutter,Pan camera,Slot machine,Monney detector,Coin refund devices,Automatic doors,Peritoneal machine,Automatic TV rack,office equipment,Household appliciaces
2.Main voltage:12V;24V;
3.Motor Diameter:42mm
4. Torque:~
5.Speed:Customized
6.Direction:CW,CCW
7.Weight:320~480g/pcs(Approx)
8.Packing details: CTN size:34*31*H15cm 20pcs/CTN G.W.:10Kgs
9.Our DC Planetary Gear Motor is with high torque,low speed,low noise,good quality,long life,lower price,fast delivery
Gearbox Data:
Number ofstages |
1 |
2 |
3 |
4 |
Reduction ratio |
3.7,5 |
13,18,25 |
49,67,92,125 |
181,246,336,458,625 |
Gearbox length " L" mm |
33.5 |
43.5 |
53.5 |
63.5 |
Breaking torque() |
15 |
25 |
50 |
90 |
Gearbox efficiency |
90% |
81% |
73% |
65% |
Driving Motor Data:
Motor model |
Rated Volt. |
No load |
Load |
Stall | |||||
Current |
Speed |
Current |
Speed |
Torque |
Output power |
Torque |
Current | ||
V |
mA |
r/min |
mA |
r/min |
W |
mA | |||
DS-775-012-3000 |
12 |
≤280 |
3000 |
≤1300 |
2600 |
450 |
12 |
≥3600 |
≥8600 |
DS-775-012-4500 |
12 |
≤450 |
4500 |
≤2100 |
3800 |
500 |
19.5 |
≥4600 |
≥16200 |
DS-775-012-6000 |
12 |
≤680 |
6000 |
≤3600 |
5200 |
600 |
32 |
≥5600 |
≥27200 |
DS-775-024-3000 |
24 |
≤120 |
3000 |
≤920 |
2600 |
450 |
12 |
≥2800 |
≥5100 |
DS-775-024-4500 |
24 |
≤230 |
4500 |
≤1400 |
3800 |
500 |
19.5 |
≥4100 |
≥11000 |
DS-775-024-6000 |
24 |
≤350 |
6000 |
≤2300 |
5100 |
600 |
31.4 |
≥5800 |
≥19000 |
Geared Motor Data:
Motor model |
Rated Volt. |
No load |
Load |
Stall | |||||
Current |
Speed |
Current |
Speed |
Torque |
Output power |
Torque |
Current | ||
V |
A |
r/min |
A |
r/min |
W |
A | |||
DS-42RP7750123500-3.7K |
12.0 |
0.40 |
941.9 |
2.04 |
772.1 |
1.77 |
14.00 |
9.80 |
9.48 |
DS-42RP7750123600-125K |
12.0 |
0.36 |
28.1 |
1.71 |
23.4 |
43.98 |
10.57 |
261.56 |
8.44 |
DS-42RP7750126000-5K |
12.0 |
0.80 |
1296.5 |
3.99 |
1087.1 |
2.60 |
29.05 |
16.11 |
20.51 |
DS-42RP7750126000-49K |
12.0 |
0.80 |
115.6 |
3.86 |
97.6 |
22.40 |
22.43 |
143.52 |
20.37 |
DS-42RP7750126000-125K |
12.0 |
0.83 |
46.2 |
3.55 |
37.0 |
52.37 |
19.90 |
263.04 |
14.54 |
DS-42RP7750127000-3.7K |
12.0 |
1.23 |
1929.4 |
5.90 |
1544.7 |
2.54 |
40.28 |
12.74 |
24.65 |
DS-42RP7750127000-125K |
12.0 |
1.01 |
53.9 |
5.25 |
43.9 |
64.04 |
28.82 |
344.17 |
23.80 |
DS-42RP7750128000-25K |
12.0 |
1.06 |
318.0 |
4.22 |
249.7 |
9.90 |
25.36 |
46.07 |
15.77 |
DS-42RP7750128000-92K |
12.0 |
1.08 |
87.7 |
5.09 |
72.1 |
39.96 |
29.56 |
224.38 |
23.57 |
DS-42RP77501212000-3.7K |
12.0 |
3.10 |
3234.8 |
13.50 |
2528.9 |
3.22 |
83.67 |
14.77 |
50.74 |
DS-42RP7750242000-336K |
24.0 |
0.08 |
6.0 |
0.32 |
4.7 |
57.22 |
2.76 |
261.33 |
1.18 |
DS-42RP7750242100-49K |
24.0 |
0.11 |
41.7 |
0.46 |
32.3 |
13.55 |
4.49 |
60.21 |
1.67 |
DS-42RP7750242100-67K |
24.0 |
0.08 |
29.4 |
0.39 |
23.7 |
17.16 |
4.18 |
88.90 |
1.68 |
DS-42RP7750243000-18K |
24.0 |
0.16 |
165.2 |
0.85 |
136.3 |
7.72 |
10.80 |
44.19 |
4.11 |
DS-42RP7750243000-49K |
24.0 |
0.13 |
62.2 |
0.72 |
53.2 |
15.81 |
8.64 |
109.44 |
4.22 |
DS-42RP7750243600-125K |
24.0 |
0.19 |
29.1 |
1.16 |
24.5 |
57.20 |
14.40 |
363.22 |
6.34 |
DS-42RP7750245000-27K |
24.0 |
0.21 |
197.2 |
1.57 |
166.7 |
13.32 |
22.79 |
86.06 |
9.02 |
DS-42RP7750244500-181K |
24.0 |
0.60 |
24.6 |
2.02 |
19.4 |
92.40 |
18.38 |
433.23 |
7.31 |
DS-42RP7750246000-25K |
24.0 |
0.30 |
228.9 |
1.93 |
199.3 |
14.00 |
29.17 |
110.00 |
12.92 |
DS-42RP7750247000-13K |
24.0 |
0.46 |
551.6 |
3.29 |
467.2 |
10.20 |
48.92 |
66.66 |
18.99 |
DS-42RP7750247000-67K |
24.0 |
0.37 |
104.1 |
2.40 |
90.6 |
32.98 |
30.68 |
254.37 |
16.00 |
DS-42RP7750248000-25K |
24.0 |
0.63 |
330.4 |
4.07 |
277.1 |
19.62 |
55.82 |
121.62 |
21.93 |
DS-42RP7750248000-92K |
24.0 |
0.51 |
85.7 |
3.11 |
72.3 |
52.97 |
39.29 |
338.17 |
17.13 |
DS-42RP77502410000-13.7K |
24.0 |
0.57 |
729.9 |
4.57 |
626.6 |
10.76 |
69.21 |
76.00 |
28.77 |
