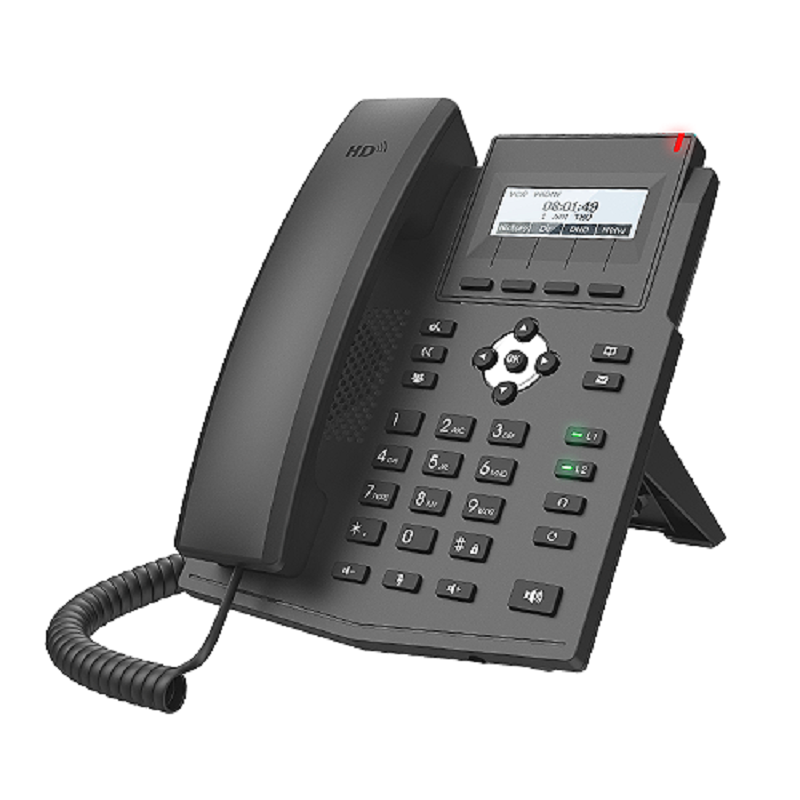

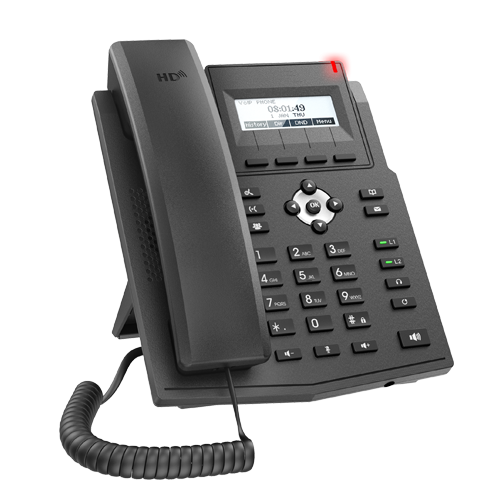

Cheap Wireless HD Voice SIP WiFi Phone Support with 2 SIP Lines for VOIP PBX

BP100W is an entry-level WiFi IPPhone, 128x48 dot matrix screen, supports 2 SIP accounts,, 5-way conference call and other rich functions.

It provides the high-quality and convenient experience for users at an affordable price.

Generic

         2SIP Lines

         Dot-matrix Screen without backlight

         Handset / Hands-free / Headset mode

         Desktop Stand

Phone Features

         Local Phonebook (1000 entries)

         Remote Phonebook (XML/LDAP, 1000 entries)

         Call logs (in/out/missed, 600 entries)

         Black/White List Call Filter

         Voice Message Waiting Indication (VMWI)

         Programmable Soft keys

         Network Time Synchronization

         Built-in 2.4GHz Wi-Fi

         Network standard: IEEE 802.11b/g/n

         Transmission rate: up to 150Mbps (dynamic)

         Support Plantronicswireless headset (through Plantronics APD-80 EHS Cable)

         Support Jabra wireless headset

         Support Recording (on Server)

         Action URL / Active URI

         UaCSTA

Call Features

         Call out / Answer / Reject

         Mute / Unmute (Microphone)

         Call Hold / Resume

         Call Waiting

         Intercom

         Caller ID Display

         Speed Dial

         Anonymous Call (Hide Caller ID)

         Call Forwarding (Always/Busy/No Answer)

         Call Transfer (Attended/Unattended)

         Call Parking/Pick-up (Depending on server)

         Redial

         Do-Not-Disturb

         Auto-Answering

         Voice Message (on server)

         3-way Audio Conference

         Hot Line

         Hot desking

Audio

         Wideband ADC/DAC 16KHz Sampling

         Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC

         Wideband Codec: G.722, Opus

         Full-duplex Acoustic Echo Canceller (AEC)

         Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) /
Background Noise Estimation (BNE) / Noise Reduction (NR)

         Packet Loss Concealment (PLC)

         Dynamic Adaptive Jitter Buffer

         DTMF: in-band, Out-of-Band DTMF-Relay(RFC2833) / SIP INFO

Network

         Physical: 10/100Mbps Ethernet, dual bridged port for PC Bypass

         IP Mode:IPv4/IPv6/IPv4&IPv6

         IP Configuration: Static IP / DHCP / PPPoE

         Network Access Control: 802.1x

         VPN: L2TP / OpenVPN

         VLAN

         LLDP

         CDP

         QoS

         RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

Protocols

         SIP2.0 over UDP/TCP/TLS

         RTP/RTCP/SRTP

         STUN

         DHCP

         CDP

         LLDP

         PPPoE

         802.1x

         OpenVPN(Requires third-party app support)

         SNTP

         FTP/TFTP

         HTTP/HTTPS

         TR-069

Deployment & Management

         Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069

         Web Management Portal

         Web-based Packet Dump

         Supports Web upgrade

         Supports factory reset data

Physical Specifications

         Color: Black

         LCD x1:128x48 dot-matrixScreen without Backlight

         Keypad: 24 keys, including

         4 Soft-keys

         4 Function keys (up, Down, Headset, Redial)

         12 Standard Phone Digits keys

         2 Volume Control keys, Lower/Increase(Left/Right)

         1Mute key

         1 Hands-free key

         Handset (RJ9) x1

         Standard RJ9 Handset Wire x1

         1.5M CAT5 Ethernet Cable x1

         Back Rack x1

         RJ9 Port x2: Handset x1, Headset x1

         RJ45 Port x1: Network x1

         Power: 5V/0.6A orPoE

         Working Temperature: 0~45℃

         Working Humidity: 10~95%

         Installation: Desktop Stand

         Device Dimensions: 210.7x207.2x162mm

         Gift Box Dimensions: 250x205x66mm

         Outer CTN Dimensions:420x340x265mm (10 PCS)
