Jiake Welding Equipment Co., Ltd.
China Manufacturer with main products: Wire Mesh Machines, Wire Mesh Welding Machines, Welded Wire Mesh Machines, Fence Mesh Welding Machines, Steel Bar Mesh Welding Machines,... |
Wire Mesh Machines for 2-3.5MM Welded Mesh JK-AC-1200S
| FOB Price: | 35,000.00 - 50,000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Month |
| Shipping: | 45days |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | as required |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Model Number: JK-AC-1200S
- Brand Name: JIAKE
- wire diameter: 2-3.5mm
- mesh width: 1200mm
- number of electrode: 25pcs
- mesh length: 3m
- cross wire space: 50-300mm
- line wire space: 25-300mm
- electric capacity: 375KVA
- welding speed: 60-890 cross wires/min
- control system: PLC control
- Factory: jiake
Specifications

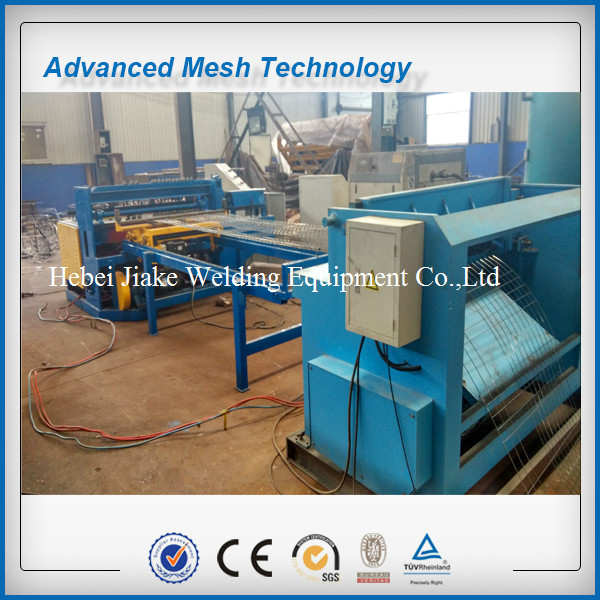

Wire Mesh Welding Machine JK-AC-1200S
1. easy to operate: start the machine only one automatic run button.
2. motor servo control: adopts Delta VE high-end frequency converter snd PG card, the time of main motor 0-1500r/min accelerate and decelerate is 0.02s, zero speed could 200% torque run, ensure the machine quick reaction (the main motor with Autonics encoder)
3. Helical gear reducer:to ensure the machine high bearing running, adopts torque high bearing K-series helical gear reducer, and outside install, easy to maintanance.
4. mesh output device: Panasonic servo motor and planetary gear, ensure the system stability of and wire mesh size precision.
5. weft input device: Panasonic servo motor and planetary gear, ensure the weft uniformity and system stability.
6. fault display: when the machine fault, it will show on the touch screen(HMI), convenient to maintain.
7. parameter set: all the parameter could be set on the touch screen in English.
8. All the spare parts are famous brand abroad and inland.
Wire mesh welding machines JK-AC-1200S main parameter:
|
Model |
JK-AC-1200S |
|
wire diameter |
2-3.5mm |
|
max. mesh width |
1200mm |
|
number of electrodes |
25pcs |
|
mesh length |
3m |
|
cross wire space |
50-300mm |
|
line wire space |
25-300mm |
|
electric capacity |
375KVA |
|
welding speed |
60-90 cross wires/min |
|
control system |
PLC control |
