Electricity Power Source (Eps) Inc.
China Manufacturer with main products: AC DC Adapter, LED Power Supply |

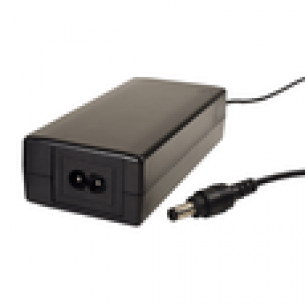

45W AC DC ADAPTER
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
Specifications
Feature:
1.Universal Input
2.IEC320 Receptacle 2P (C8)
3.Optional Output Connector
4.OVP, OCP, OPP, Auto Recovery
5.CEC/ EUP efficiency level compliance up to Level 5
6.Size: 110.5*53*30mm
7.Low cost
8.Safety agency approval by CB-Nemko/GS/FCC/CE/UL/LVD/PSE
9.Design to meet safety standard EN60950-1 I.T.E
10.Rohs compliance
|
Specifications: Parameter Description/SPEC.: Input Voltage: Inrush Current:. Dielectric Withstand Input/ Output : MTBF: Leakage current: Efficiency: No Load Stand by power: Hold Up Time: Output Voltage: Ripple & Noise: Regulation:
Operating Temperature: Storage Temperature: Protections: Safety standard: EMC standard: Standard output connector: Standard output cable length: Optional output connecter type: |
100 ~ 240 VAC +/-10% 40A at 115VAC/ 80A at 230VAC max. 3000 VAC 30000 hrs < 0.25mA >= 87% type. for CEC requirement <=0.3W @ 230 VAC 10mS at Nominal Line DC 12 ~16 V (Typical) 2% p-p max Load ± 5% max. -10 °C ~ +50 °C (derating linearly from 100% load @ 40 °C to 75% load @ 50 °C) -20 to +85°C OCP, OVP,OPP (Over Power & Short circuit) IEC/UL/EN60950-1, CE, CB ,CCC EN55022(CISPR 22) class B, FCC class B Options UL1185, #18AWG/ 4Ft. Min din/ Pennell mount / Water proof / Molex |
