Home >Products Catalog > 65W AUDIO VIDEO POWER ADAPTER

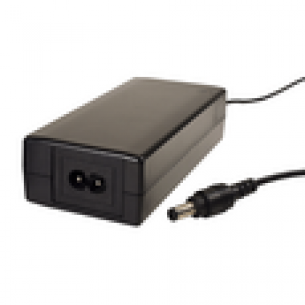

65W AUDIO VIDEO POWER ADAPTER

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Specifications

Feature:

1.Universal Input

2.IEC320 Receptacle 2P (C8)

3.Optional Output Connector

4.OVP, OCP, OPP, Auto Recovery

5.CEC/ EUP efficiency level compliance up to Level 5

6.Size: 110.5*53*30mm

7.Low cost

8.Safety agency approval by CB-Nemko/GS/FCC/CE/UL/LVD/PSE/CCC

9.Design to meet safety standard EN60065

10.Rohs compliance

Specifications:

Parameter Description/SPEC.:

Input Voltage:

Inrush Current:.

Dielectric Withstand Input/ Output :

MTBF:

Leakage current:

Efficiency:

No Load Stand by power:

Hold Up Time:

Output Voltage:

Ripple & Noise:

Regulation:

Operating Temperature:

Storage Temperature:

Protections:

Safety standard:

EMC standard:

Standard output connector:

Standard output cable length:

Optional output connecter type:

100 ~ 240 VAC +/-10%

40A at 115VAC/ 80A at 230VAC max.

3000 VAC

30000 hrs

< 0.25mA

>= 87% type. for CEC requirement

<=0.3W @ 230 VAC

10mS at Nominal Line

DC 12 ~24 V (Typical)

2% p-p max Load

± 5% max.

-10 °C ~ +50 °C (de-rating linearly from

100% load @ 40 °C to 75% load @ 50 °C)

-20 to +85°C

OCP, OVP,OPP (Over Power & Short circuit)

IEC/UL/EN60065, CE, CB ,CCC

EN55022(CISPR 22) class B, FCC class B

Options

UL1185, #18AWG/ 4Ft.

Min din/ Pennell mount / Water proof / Molex
