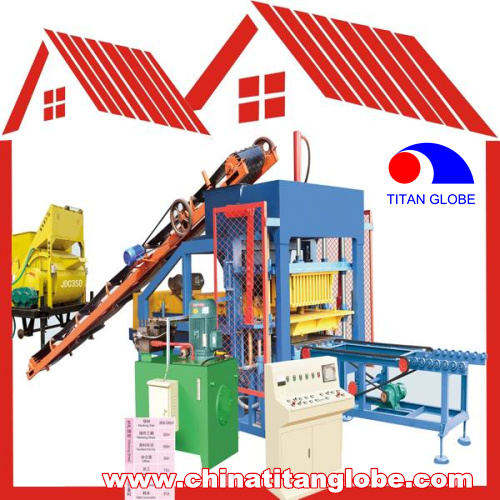

QTJ4-15 Multi-Function Hydraulic Automatic Brick Making Machine QT4-15

QTJ4—15 Hydraulic Full-Automatic Block Forming Machine is one kind of advanced equipment, which is of electro-hydraulic- mechanical integration and dialogue between man and machine controlled by computer system. This machine is developped according to international development tide and designed for domestic situation, which can be operated without any simple training.

Made of high-strength steel and by special welding procedure, this machine is very firm. Its guiding columns are made of special super strong steel, which surfaces are coated with cadmium, and have perfect torsional strength and wearing capacity. Its material distributor, using sensor and hydraulic proportional driving technologies, can produce forced centrifugal discharging under the function of swing and arc-breaking mechanism to provide quick and even material distributing, specially suitable for producing thin wall and perforated blocks. Under the control of computer, the material distributor can produce vertical synchronous vibration by hydraulic driving system to carry out low frenquency material distributing and high-frenquency block forming. And its multi- source vibrating system can give perfect vibrating effect to different raw materials.

1.Main Technical  Parameters

Production Quantity: 390X190X190mm    4 PCS/Mould

                                  240X115X90mm     12 PCS/Mould

                                  240X115X52mm      26PCS/Mould

Host Machine Power:25.3Kw

Forming Cycle:15S

Total Weight:6.8T

Shift Capacity:9600PCS Hollow Bricks,62400PCS Standard Bricks,24000PCS Cellular Bricks

Overall Size:3950X2100X2780mm

Carriage Size:920X550X35mm

Executive Standards:GB/T8533-2008

Raw Materials:Concrete,Crushed Stone,Snad,Cement,Dust And Coal Fly Ash,Cinder,Slag,Gangue,Gravel,Perlite And Other Industrial Wastes.

2. Features Of QTJ4-15 Multi-Function Hydraulic Automatic Brick Making Machine QT4-15

1). PLC automatic control system, which includes safety logic control and fault diagnosis system

2). Excellent control system--Extensive imported original parts and hydraulic components with high dynamic performance proportional valve to control the key part of the action accurately.

3). Four-oriented approach-- guarantees the accurate movement of the pressure head and the mold
4). Consistency--The technic of the integral use of brick making machine , electric and fluid realize the consistency of every cycle.
5). High efficiency--- Table and mold vibration, hydraulic compression and travel-oriented feeding device shorten cycle times and improve production.
6). Multi usage—different kinds of bricks can be produced through replacing mold, such as hollow brocks,curbs, brick pavers and planting grass brick,slop brick and so on.
7). Color road bricks-- can be produced with fabric devices by  refractory brick machine.

3.Other Informations Of QTJ4-15 Multi-Function Hydraulic Automatic Brick Making Machine QT4-15

1). Area: Workshop Area: 150-200m2, All Factory Area 2000m2, Bigger Is Better.

2). Workers :3-4

3). Ratio Of Raw Material:Cement 8%-10% Sand 30%-40% Stone:50%-60%,About  Cement :Sand : Stone is1:4:5.

4). Hollow Block Weight:(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG

5). Raw Material Consumption Per Day:90-100T

6). Water Consumption Per Day:3%-5% Of Raw Materials Weight.
