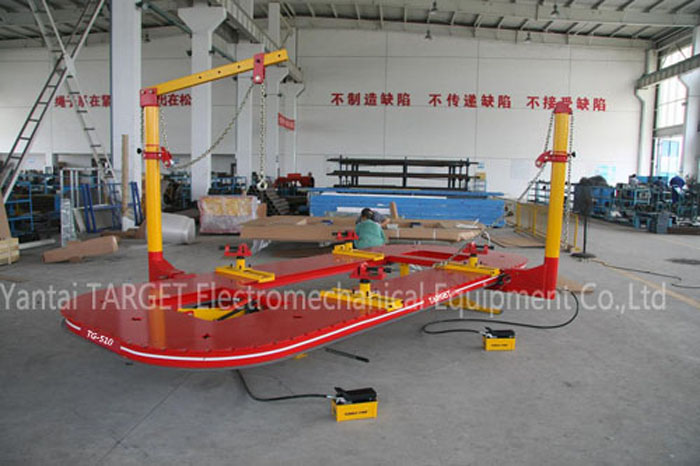

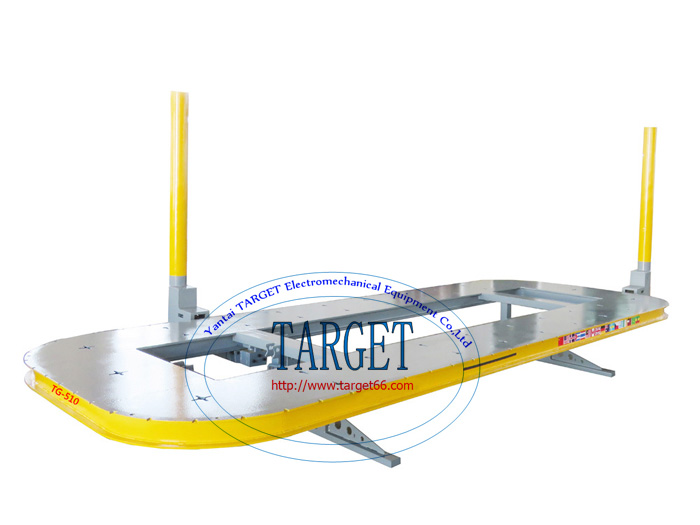

Auto Body Frame Straightener TG-510
| FOB Price: | 3,000.00 - 6,000.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set/Sets per Month |
| Shipping: | 5 days after receive a partial deposit |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
Quick Details
- Warranty: 2Years
- Model Number: TG-510
- Brand Name: TARGET
- Worktable Width: 2200MM
- Worktable Length: 5200MM
- Max. Tension (N): 95KN
- Max. Lifting Capacity: 4000kg
- Max. Hydraulic Pressure: 70Mpa
- Bench Height: 500mm
- Weight: 2600kg
Specifications
Specifications:
Bench length: ------------------------------5200mm
Bench width: -------------------------------2200mm
Working height: ----------------------------500mm
Post Max. Pulling tension: ----------------95KN (10tons)
Hydraulic Pressure: -----------------------70Mpa(10000psi)
Post working range: -----------------------360°
Max. Lifting weight: -----------------------3500kg
Total weight: -------------------------------2600kg
Features
1. Unilateral tilting hydraulic lifting platform makes the accidental vehicle loaded and unloaded more convenient.
2. The material is a whole flat plate, high intensity. The posts can move around the platform at 360°, Easy operation.
3. Streamline clamps can fasten almost all various damaged vehicles.
4. The global data synchronization by Mitchell and the major automotive companies provide and maintain the latest data models.
5. High-precision measurement system can be easily used to perform the dimension measurement on the car, controlbody size and the same as the original car.
6. Perfect after sales service guarantees customers' satisfaction.
