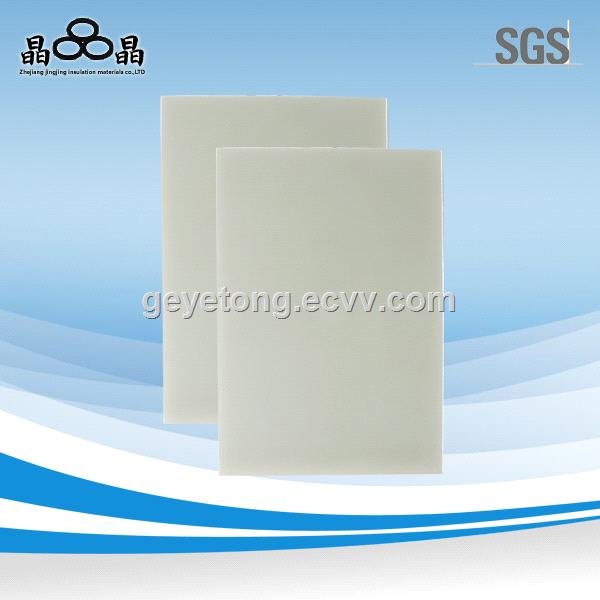

FR4 epoxy fiberglass sheet
| FOB Price: | 3.70 - 12.70 USD/Kilogram |
|---|---|
| Supply Ability: | 1,000,000 Ton/Tons per Month |
| Shipping: | 15days for production after receipt of 30%-50% deposit of T/T |
| Payment Terms: | T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
-
Price:15.00-20.00 USD/KilogramMin. Order:100 Kilograms -
Price:0.10-0.30 USD/PieceMin. Order:1,000 Pieces
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | wooden pallet+hardboard |
Quick Details
- Tensile Strength: 436Mpa
- Rated Voltage: 35KV
- Application: High Voltage
- Material: Fiberglass
- Type: Insulation Sheet
- Model Number: FR4
- Brand Name: Jingjing
- Thickness: 0.1~120mm
- Color: light green ,green,yellow, black, red or customized by you
- Size: 1020*2040mm, 1220*1020mm, 1220*2040mm and so on
- Density: 2.0g/cm3
- Breakdown voltage: 54KV
- Application: Electrical equipment,humid conditions, transformers and so on
Specifications
FR4 epoxy fiberglass sheet is consisted of reinforcing insulation material---fiberglass mixed with thermoset resin. And then multilayer plates are processed by hot press.
| No. | Projects | Unit | FR4 Result | G10 Result | |
| 1 | Flexural strength perpendicular to lamination | A | Mpa | 494 | 494 |
| B | 473 | 473 | |||
| 2 |
Impact strength parallel to laminations (Charpy) |
A | KJ/m2 | 66.7 | 66.7 |
| B | 45.3 | 45.3 | |||
| 3 |
laminations (Charpy) Dielectric strength perpendicular to laminations (in 90±2°Ctransformer oil,1mm in thickness) |
MV/m | 10.7 | 10.7 | |
| 4 |
Breakdown voltage parallel to laminations (in 90±2°C transformer oil) |
KV | 54.6 | 54.6 | |
| 5 |
Insulation resistance after impregnated in water |
A | Ω | 1.5*1013 | 1.5*1013 |
| B | 1.7*1013 | 1.7*1013 | |||
| 6 | Dissipation factor | / | 3.3*10-2 | 3.3*10-2 | |
| 7 | Dielectric constant (1MHz) | / | 5.14 | 5.14 | |
| 8 | Water absorption | mg | 6.5 | 6.5 | |
| 9 | Combustibility | class | V-0 | HB | |
| 10 | Adhesive strength | N | 5221 | 5221 | |
About us
Our company is located in the superior environment of Zhe Jiang Shangyu district. The company was founded in 2002 with more than 10 years of insulation materials production experience. The company has advanced production equipment including 2400 tons of vacuum press, fully automatic production lines, two vertical gluing machine, the professional research and development personnel to ensure the quality of the products. With our core value idea"people oriented, reputation first" , Jingjing products occupy a large portion of Chinese market, and also are exported to overseas countries at present with a good reputation and high quality!
