Shanghai Benling Scroll Compressor Co., Ltd.
China Manufacturer with main products: DC Power Compressor, Electric Scroll Compressor, Battery Driven Compressor |

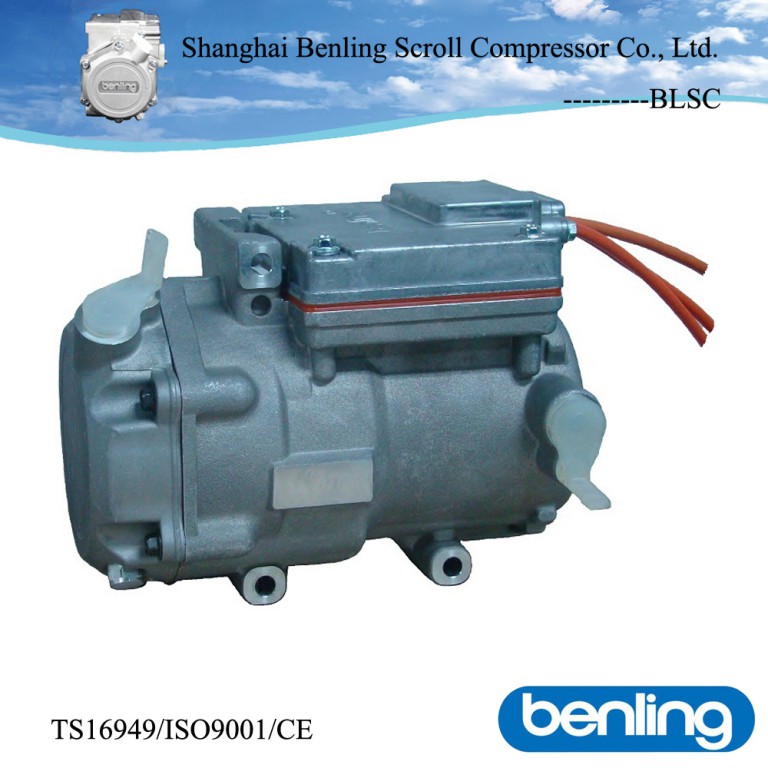

Electronic Compressor DM27A1
| FOB Price: | 450.00 - 500.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece/Pieces per Week |
| Shipping: | 3-5 working day |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | one compressor in one box, 3 boxes in one big boxes |
Quick Details
- OE NO.: DM27A1
- Car Make: pure electric car
- Type: Compressor
- Size: 280*210*225
- Model Number: DM27A1
- Brand Name: BENLING
Specifications
DM27A1 27CC 312V DC displacement:18cc rated voltage:312v rotated speed:1800-6000
Electronic Compressor DM27A1
Performance(DM27A1)
refrigerant capacity(3000 rpm)
2.15kw /7300 Btu/hr
input power
1.10 KW
current
3.5A
refrigerant capacity(4000 rpm)
2.90kw /9900 Btu/hr
input power
1.49KW
current
5A
refrigerant capacity(6000 rpm)
4.60kw /15700 Btu/hr
input power
2.30KW
current
7A
test condition
Pd/Ps=1.47/0.196 Mpa(G) SC=5℃ SH=10℃
Usable range
evaporated temperature
-15 °F ~ 70°F
condenser temperature
77 °F ~ 167°F
compression ratio
15.0 MAX
refrigerant
R134a
start temperature
-26 °F ~ 158 °F
working temperature
-26 °F ~ 212 °F
storing temperature
-40 °F ~ 221 °F
Compressor parameter
discharge capacity
27.0 cc/rev
weight
6.3kg
oil charge
120cc PVE oil
refrigerant capacity
700cc
rotated speed rang
1000rpm---8600 rpm
safety valve pressure
4.0 Mpa
cover protection level
IP67
motor coil temperature
248°F MAX
discharge temperature
239°F MAX
Motor parameter
motor type
PMSM (permanent magnet synchronous motor
rated tortue
3.5 Nm
max tortue
6.0 Nm
Drive parameter
max power
3700W
working frequency
15HZ-150HZ
over heating protection
212°F
low voltage protection
230V
over voltage protection
430V
soft hardware overload
yes
control method (common way)
1, pwm 2,gear 3,can 4-----
