Yantai Sky Machinery Co., Ltd.
China Manufacturer with main products: Waste Oil Burner, Waste Oil Heater, Used Oil Burner, Used Oil Heater, Auto Frama Machine, Spray Booth, Car Rotisserie |

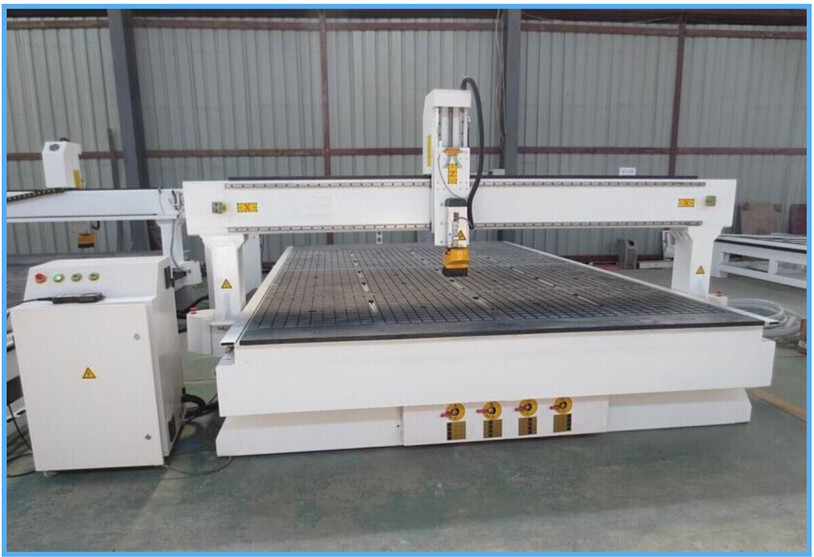

2015 3D woodworking machine, cnc router, cnc engraving machine
| FOB Price: | 2,000.00 - 5,000.00 USD/Set |
|---|---|
| Supply Ability: | 80 Set/Sets per Month |
| Shipping: | 15 days after payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | standard exporting package |
Quick Details
- Warranty: 12 months
- Certification: ISO9001, CE, CO, SGS
- Weight: 1400KGS/1600KGS
- Dimension(L*W*H): 2000mm*3000mm*350mm
- Power(W): 6 kw
- Voltage: 220V/380V
- Model Number: -105
- Brand Name: SKY
- CNC or Not: CNC
- Condition: New
Specifications
Technical data:
|
NO. |
Description |
Parameter |
|
1 |
X,Y,Z Working Area |
2000x3000x200mm/200X4000X200MM |
|
2 |
Table Size |
2200×3550mm/2200X4600MM |
|
3 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
4 |
X,Y,Z Repositioning Positioning Accuracy |
±0.05mm |
|
5 |
Lathe Structure |
Welded Structure |
|
6 |
X, Y Structure |
Gear Wheel Transmission, |
|
7 |
Z Structure |
Ball Screw or Gear Wheel Transmission |
|
8 |
Max. Consume power |
8.0Kw |
|
9 |
Max.Speed |
0-32000mm/min |
|
10 |
Max. Working Speed |
0-20000mm/min |
|
11 |
Spindle Power Motor |
3.0kw spindle |
|
12 |
Spindle Speed |
0-18000RPM |
|
13 |
Working Mode |
Servo |
|
14 |
Working Voltage |
AC220V/380V,3PH/50/60Hz,3PH |
|
15 |
Command |
G Code, *uoo, *mmg, *plt |
|
16 |
Operating System |
DSP System (Option: Mach3 PC Software) |
|
17 |
Interface |
USB |
|
18 |
Flash Memory |
128M |
|
19 |
Collet |
ER25 |
|
20 |
X,Y Working Delicacy |
<0.01mm |
|
21 |
Software |
Type3 software, Wentai software, Artcam software |
|
22 |
Running Circumstance |
Temperature: 0℃~45℃ |
|
All parameters above subject to change without prior notice |
||
