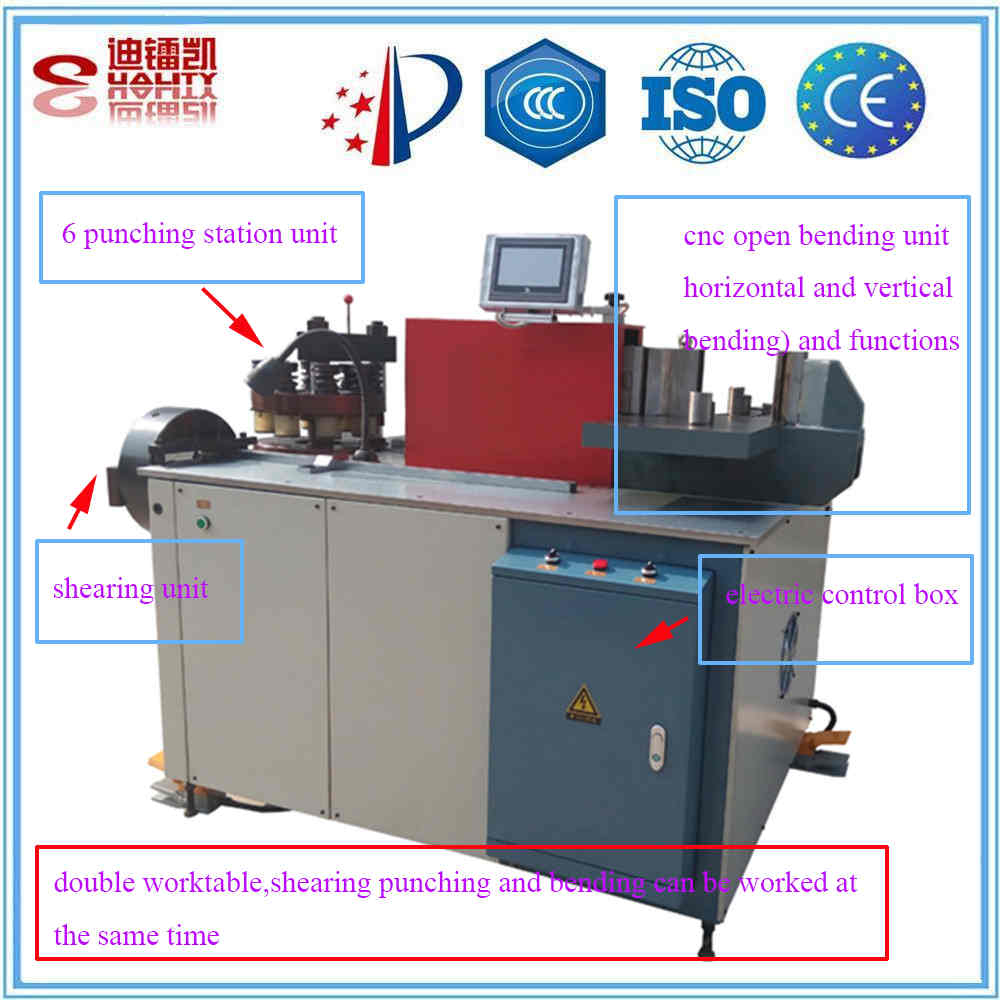

Three in one Turret busbar bending cutting punching machine

FOB Price:	9,700.00 - 15,000.00 USD/Set
Supply Ability:	200 Set/Sets per Month
Shipping:	about 15 working day ,qingdao port by sea
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	starand exported wooden box

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 2 year
Certification: iso9001
Rated Power: 4
Voltage: 380V
Model Number: NCMX-503K
Brand Name: Dirake
Condition: New
materials: copper and aluminim bar
usage: bending ,cutting ,punching
Max punching strength: 350kn
Max.punching thickness: 16mm
Max puching width: 250mm
max cutting thickness: 16mm
max cutting width: 250mm
max bending thickness: 16mm
max bending width: 250mm
type: busbar bending cutting punching machine

Specifications

Processed material:aluminum and copper bus bar

Main function:bending,cutting and punching

Other function: embossing, twisting, flatting, pressing tie-in, etc.

Application Industries:Switch cabinet, high low voltage switchgear, eletric transformer station,voltage transformer,appliance swich,ship manufacturing,electric elevator manufacturing,electric cabinet manufacturing etc

Work video : youtu.be/QUAJvfB3nZI.

Busbar bending cutting punching machine		NCMX—503K
Punching	Max power (Tons)	30
	Punching Diameter (mm)	4.3~25
	Max thickness (mm)	16
	Max width (mm)	250
Cutting	Max thickness (mm)	16
Cutting	Max width (mm)	250
Bending	Max power (tons)	30
	Max width (mm)	250
	Max thickness (mm)	16
Vertical Bending	Max width (mm)	100 (10mm thick copper)
Vertical Bending	Min bending angle degree	90°
Embossing		√
Pressing Cable Joint		√
Twisting		√
Outline Dimensions		1700×2200×1550
Pumps		2
Power of each Motor (KW)		4

Our service

- Warranty: 1.5 years for the machine
- Provide technical services to the door (We have professional engineers to offer machine installation commissioning and maintenance)
- Replace all parts for free during the warranty period(no human damage)
- 18th technology online support (skype, yahoo, MSN)

To recommend best suitable busbar bending cutting punching machine for your inquiry,pls tell me three questions?

1.What's your busbar thickness and width?

2.Do you need turret punching structure?

3.Do you need CNC control in bending unit?
