Heat Seal Parameters Tester

Supply Ability:	100 Set/Sets per Month
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Metallographic Grinding & Polishing Machine

Price:5,000.00-35,000.00 USD/Set

Min. Order:1 Set
Newest 22 in 1 RC USB Flight Simulator Cable fo...

Price:4.50-5.00 USD/Piece

Min. Order:1,000 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China

Quick Details

Usage: Plastic Testing Machine
Power: Electronic
Model Number: HSP-01

Specifications

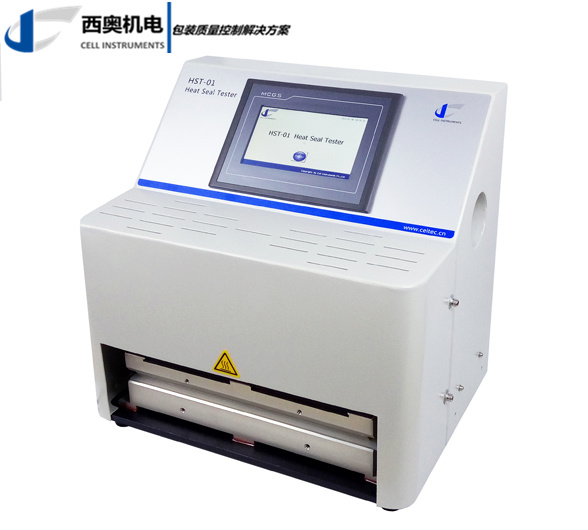

Heat Seal Parameters Tester

Heat Seal Parameters Tester is for the determination of the heatsealability of a surface, or sealant layer of films, laminates, composites and polymers etc. How well the material heatseals is expressed quantitatively as seal strength as a function of the sealing conditions of temperature, time and pressure. Heat Seal Parameters Tester is professionally designed for the precise measurement of the three parameters of temperature, time and pressure in the heat seal process. Heat Seal Parameters Tester conforms to standards of ASTM F2029, QB/T 2358 and YBB 00122003.

Heat Seal Testing Machine Principle

Place a sample between two-heated sealing jaws of Heat Seal Parameters Tester with flat surfaces when the required temperature reaches equilibrium. The upper seal jaw, driven by a gas cylinder, is pushed down, to exert a certain pressure on the sample and remain for some time. When the preset sealing time ends, the upper sealing jaw returns to its original position and the whole heatsealability testing process finishes.

Heat Seal Parameters Tester Features

1.7 inch TFT touching screen makes parameter setting and operation easy and convenient for Heat Seal Parameters Tester.

2.PLC for precise dwell time and sealing pressure control

3.P.I.D. for precise sealing temperature control

4.Uniform heating by aluminum encapsulated sealing jaws and no inhomogeneous heating

5.Multiple groups of test parameters can be saved to reduce setting time and eliminate human error

6.Independent heating of upper and lower sealing jaws on the model of Heat Seal Tester.

7.Sealing jaw customization available in term of dimension, shape and surface

Heat Seal Parameters Tester Technical specifications

Sealing temperature Room Temperature ~ 300℃

Deviation ±0.2℃

Dwell time 0.1 s~9999s

Sealing pressure 0.05 MPa ~ 0.7 MPa

Sealing Jaws 330mm×10mm(Sealing Surface)(Customization Available)

Double Heating of Upper and Lower Jaws

Gas Pressure 0.5 MPa~0.7 MPa of Air

Dimensions 455mm (L) *320mm (W) *440mm (H)

Port Size Ф6 mm PU Hose

Power AC 220V 50Hz

Heat Seal Parameters Tester Standard

ASTM F2029, QB/T 2358, YBB 00122003
