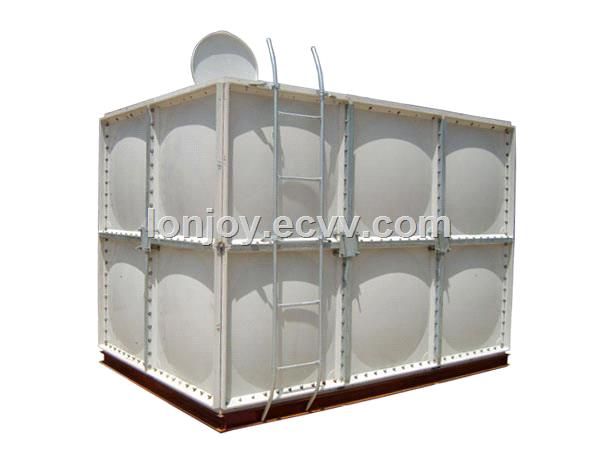

SMC FRP GRP water tank, Assembled square water tank

The panel is made of Q235 steel by hydraulic punching machine.

The size of the panel is : 1000*1000mm,1000*500mm, 500*500mm.

The thickness of the panel mainly includes: 5mm-16mm,etc. It is different according to the tank dimension.

1.2 Flanges

The sectional panels shall be pressed to double flanges at the angles of 45 degree and 90 degree to the face

of the plate on four sides.We can make it according to your request.

1.3 Reinforcement Method

All tanks are internally braced with angle stays to endure the rigidity of the tank when filled with the water.

The top panel is supported by top panel support, which shall be made of hot-dipped galvanized material.

1.4 Bolt. nut & washers

hot-dipped galvanized material.

1.5  Sealing material

Non-toxic P.V.C foam tape shall be used in between the joints.

1.6 Covers

The tank cover shall be constructed from 1.4mm to 3.0mm of thickness hot-dipped galvanized material

according to the requirement.

1.7 Ladders and Level Indicator

Internal & external ladder shall be made of hot-dipped galvanized.

FRP Water Tank Applications

This water tank is widely used in storage and regulation of living water supply & construction water supply, and

temporary water storage tanks for expansion of the heating system, condensate tank and construction, geological

survey, industry, National defense project etc.

Various industries, civil water supply, HVAC, firefighting, food, beverage, vintage, water treatment, medicine,

petroleum, chemical and so on. Taking flexible, reasonable plate design, suitable for all sizes combined water tank.

Suitable for living water with PH value:6.5-8.5, using life:≥20 years.

FRP Water Tank Advantages

1) Light weight, high strength.

2) Leak-proof /Water Tightness: Due to the material is fiberglass reinforce plastic with high density, and the sealing tape

is high performance with non toxic, so it's leak-proof tank;

3) Long lifetime, long durable time: the maximum distortion of the sidewall is less than 1 percent for the height; maximum
distortion of the bottom center is less than 10mm. The normal durable lifetime is more than 30 years.

4) Corrosion resisting; anti-rusted

5) Easy to clean and maintenance management convenient, Drainage at the tank bottom can be cleaned easily and Manhole
panel makes it easy to enter into the water tank inside.

6) Non-toxic, it is made from food grade resin, clean and no pollution. Water Tanks satisfy relevant Food Sanitation standards.
Since exterior light is completely blocked, bacteria generation and germ growths are prevented.

7) Convenient Installation: Standardized parts are used for on-site installation so that materials can be brought into restricted
areas for convenient installation.
