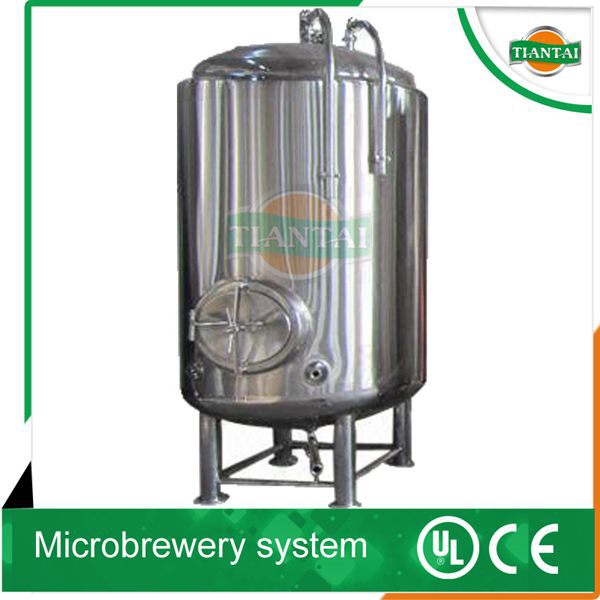

1000-20000L bright beer tanks BBTs / clear beer tanks CBTs for beer maturation and conditioning
| FOB Price: | 4,000.00 - 40,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Year |
| Shipping: | 35-40 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Wooden/Veneer case for LCL; Plastic film wrapped and iron frame fixing for FCL |
Quick Details
- Processing: Fermenting Equipment
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: three years from commissioning
- Certification: CE & UL
- Processing: milling, brewing, fermenting, filtration, filling
- Weight: various in different model
- Dimension(L*W*H): depends on capacity
- Power(W): 15-70kw depends on size
- Voltage: 3phase/380(220, 400, 415, 440)V/50(60)Hz
- Processing Types: Alcohol
- Model Number: 1000-20000L
- Brand Name: Tiantai/TBE or OEM
- Condition: New
- Appearance: Stainless steel or Red Copper clading
- Thickness of Tanks: 3mm for interior shell/2mm for exterior shell
- Color Available: Mirror SUS, Luxury red copper
- Heating: Electric/Steam/Direct fired
- Heat Insulation: Polyurethane with Thickness=80mm
- Inner Polishing Precision: 0.4 Micrometer
- Volume Design: Properly according to the capacity request
- Controlling System: Temperature, Pressure auto control
- Plants Type: Turnkey or Customized
- Application: bright beer tanks BBTs
Specifications
1. Description of Bright Beer Tank
Bright beer tanks are often also called serving tanks, tax determination tanks or clear
beer tanks (=CBTs), bright beer tanks (=BBTs) or maturation or conditioning tanks.
These tanks are used for the storage of the beer prior to being served or packaged.
Depending on their application the beer serving tanks can be glycol jacketed or can
be located in a cold room.For brewpubs serving is often done by pumping or pressurizing
the beer toward the serving location.
2. Configuration of Bright Beer Tank
Design pressure 45 psi (3bar); working pressure 15psi (1bar)
4 stainless steel legs with leveling footpads
Interior shell: 304 stainless steel, thickness 3mm
Exterior shell: 304 stainless steel, thickness 2mm
Interior and exterior finish bright polish to 0.6~0.8 μm, hygiene surface
All Interior welds ground to a smooth0.6~0.8 μm sanitary finish
Flanged and dished head top and bottom
20% headspace unless a different volume is requested
Top manway or side manway door
Polyurethane insulation thickness 80mm for cooling jacket on side and bottom
Carbonation system with micron stone
If you are would like to change, add, remove or modify any part of the tanks, we can accommodate that.
Specific fitting sizes, changes and locations will be set during the design process after a deposit is taken.
3. Other Configuration for Optional
Cooling Unit
Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing
Efficiency chillers or refrigerators with fryonto supply cooling energy
Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger
All pipes, fitting, insulation materials are included
Controlling Unit
Electrical controlling cabinet with temperature, on-off controlling for brewhouse
Electrical controlling cabinet with temperature, on-off controlling for cooling parts
Temperature controller, thermocouple, solenoid valves etc are included
PLC with touch screen panel for special request
Malt Milling Unit
Particle adjustable rolling crusher
Flexible or steel auger for optional
Brewhouse Unit
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly
Stainless steel or copper cladding are popular
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump
All pipings and fittings
Fermentation Unit
Standard stainless steel conical cylindrical fermentation tanks
Single size as brewhouse is common used in restaurant
Tanks quantity is exactly calculated by fermentation cycle for various beers
All manhole, valves, pressure gauges, fittings etc are included
Beer Filter Unit
In restaurant or bar, beers are always served as craft beer without filtration
Beer Dispense
Beer dispensing columns and faucets for directly beer service
Keg filling and rinsing machine
Manually bottling machines for self consumption
Other Facilities
Portable CIP system for cleaning the tanks
Oil free air compressor
4. Specification
| Bright Tank Series | Volume by US Gallon | Conical Degree | Diameter | Height |
| 10HL Bright Tank | 159US Gallon | 60 (70,90 availabe) | 1260mm | 2100mm |
| 12HL Bright Tank | 211US Gallon | 60 (70,90 availabe) | 1360mm | 2100mm |
| 15HL Bright Tank | 264US Gallon | 60 (70,90 availabe) | 1360mm | 2400mm |
| 20H Bright Tank | 317US Gallon | 60 (70,90 availabe) | 1560mm | 2350mm |
| 25HL Bright Tank | 396US Gallon | 60 (70,90 availabe) | 1560mm | 2800mm |
| 30HL Bright Tank | 528US Gallon | 60 (70,90 availabe) | 1760mm | 2700mm |
| 35HL Bright Tank | 660US Gallon | 60 (70,90 availabe) | 1760mm | 3050mm |
| 40HL Bright Tank | 793US Gallon | 60 (70,90 availabe) | 1760mm | 3350mm |
| 50HL Bright Tank | 925US Gallon | 60 (70,90 availabe) | 1760mm | 3900mm |
| 60HL Bright Tank | 1057US Gallon | 60 (70,90 availabe) | 1960mm | 3860mm |
| 70HL Bright Tank | 1321US Gallon | 60 (70,90 availabe) | 1960 mm | 4260mm |
| 100HL Bright Tank | 1585US Gallon | 60 (70,90 availabe) | 2250mm | 4920mm |
| 150HL Bright Tank | 1849US Gallon | 60 (70,90 availabe) | 2250mm | 6750mm |
5. Our Service
| ü | Free consultation service before, during, and after sales. |
| ü | Project planning and design services. |
| ü | Free debugging instruction of equipment until everything is functional. |
| ü |
Management of equipments' long distance shipping from seller's factory to named port or station by buyer. |
| ü | Training of equipment maintenance and operating personally. |
| ü | New production techniques. |
| ü |
Provide 36 months complete warrantee for main parts and life-time maintenance service; The seller is responsible for the nature damage of the machinery in the warranty period except for man-made damage; All spare parts and wearing parts are attached with the machinery for free. |
6. Packaging & Shipping
| ü | Wooden/Veneer case for LCL. |
| ü | Plastic film wrapped and iron frame fixing for FCL. |
