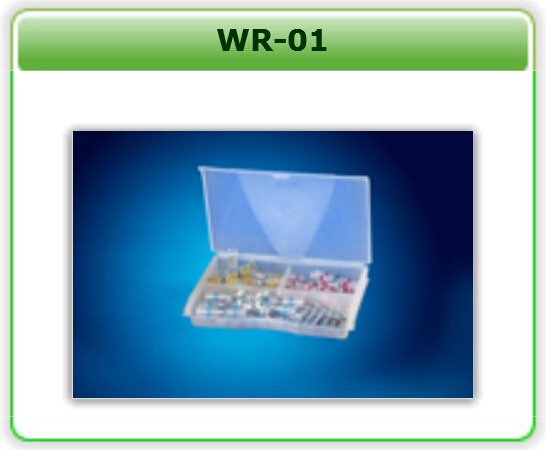

WR-01 Discrete Solder Sleeve Wire Terminators(Shield Terminators)
| Shipping: | FOB Dalian within 3 weeks |
|---|---|
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Liaoning in China |
| Packaging Details: | Neutral packaging or customized |
Quick Details
- Gender: Female
- Model Number: WR-01
Specifications
| WR-01 Discrete Solder Sleeve Wire Terminators(Shield Terminators) | ||||
| Features | ||||
| Cross-linked polyolefin sleeve,tin solder ring, glue ring | Operating temperature.: -55~125 ℃ | |||
| Transparent tubing and color coding | Solder start melting temperature: 138℃ | |||
| No crimper, only heating | Solder melt fully temperature: 160℃ | |||
| Sealing/Insulating/Encapsulating/Strain relief | Shrink ratio: 2:1 | |||
| One piece design,easy installation | Voltage class: 600V | |||
| Halogen free, RoHS compliant | ||||
| Approvals | ||||
| CE approval | ||||
| Technical Data | ||||
| Property | Test method | Values | ||
| Dielectric voltage withstand | RT-1404 | 2.0 KV | ||
| Voltage rating | RT-1404 | 600V | ||
| Voltage drop | RT-1404 | ≤2.0 mV | ||
| Copper corrosion | UL224/ASTM D2671 | Non-corrosive | ||
| Dimensions | ||||
| Reference | As supplied | Sleeve length | Color code | Standard package |
| UPM Wr-01 | ID (mm) | (mm) | pcs/pack | |
| 0017-CR005 | 1.7 | 25 | White | 100 |
| 0027-RD005 | 2.7 | 40 | Red | 100 |
| 0045-BL005 | 4.5 | 40 | Blue | 50 |
| 0060-YL005 | 6.0 | 40 | Yellow | 25 |
| ID=Internal Diameter | ||||
| Typical application | ||||
| Ideal for connecting wires to component terminals, such as motor tabs,connector pins & switch terminals | ||||
| Ordering | ||||
| Standard color : Out layer available in clear, Innner thermoplastic insert available in White,Red, Blue ,Yellow | ||||
| Standard packaging by packs | ||||
| Please specify specification, color, quantity when ordering | ||||
| Cross reference | ||||
| Raychem/Tyco : CWT/D110 | ||||
