Shenzhen Opplei Technologies. Co., Ltd.
China Manufacturer with main products: Lightning Arrester, Surge Protector, Spd, Pdu, Voltage Suppressor, CCTV Cameras Protection, Power Distribution, Surge Arrestor |

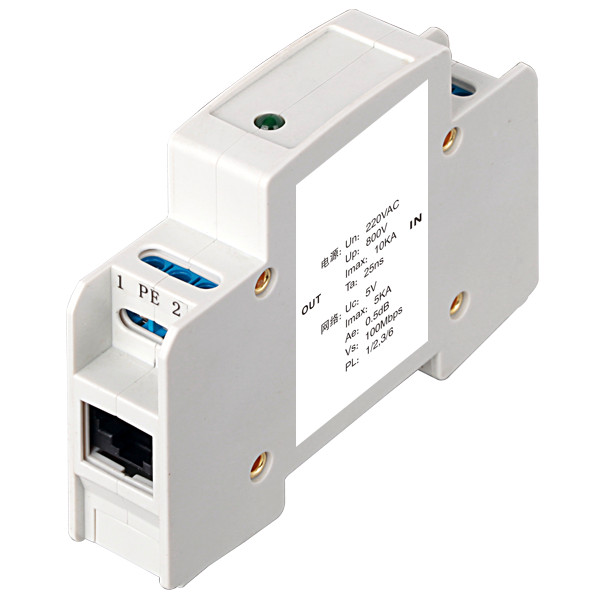

IP camera outdoor surge protector
| FOB Price: | 20.00 - 35.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | fob shenzhen |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | wooden case or cartons |
Quick Details
- Dimension: 112*60*25mm
Specifications
1. Product features
l Low insertion loss
l Quick response
l Multi. Protection circuits, Gas-Tube + TVS technology
l Dual protection in Common mode and differential mode
l TVS array technology, low capacitance
l Multi-Strike Capability
l Comes with multi-channel models
2. Applications
l Lightning protection of network/IP cameras
l Security and monitor system
3. Technical data
|
|
Model |
OP-SN2/220-OD |
|
|
Network |
Nominal operating voltage Un |
5V |
|
|
Nominal discharge current In (8/20μs) |
3KA |
||
|
Maximum discharge current Imax (8/20μs) |
5KA |
||
|
Protection level Up (8/20μs,3KA) |
≤20V |
||
|
Response time Ta |
≤1ns |
||
|
Transmission rate |
100Mbps |
||
|
Insertion loss |
≤0.5dB |
||
|
Connector type |
RJ45 |
||
|
Power |
Nominal operating voltage Un |
220V |
|
|
Maximum continuous operating voltage Uc |
385V |
||
|
Nominal discharge current In (8/20μs) |
5KA |
||
|
Maximum discharge current Imax (8/20μs) |
10KA |
||
|
Protection level Up (8/20μs,3KA) |
≤900V |
||
|
Response time Ta |
≤1ns |
||
|
Connector type |
Crimping |
||
|
Mechanical parameters |
Dimension |
112*60*25mm |
|
|
Weight |
150g |
||
|
Mounting type |
Series connected before the protected equipments |
||
|
Housing material |
Aluminum |
||
|
Index of protection |
IP20 |
||
|
Operating environment |
Temperature:-40—+85℃ humidity: ≤95% |
||
|
Others |
Warranty |
Five-year warranty, three-year replacement |
|
|
Related items |
OP-SN2, OP-SNH2, OP-SN3, OP-SNH3 |
||
