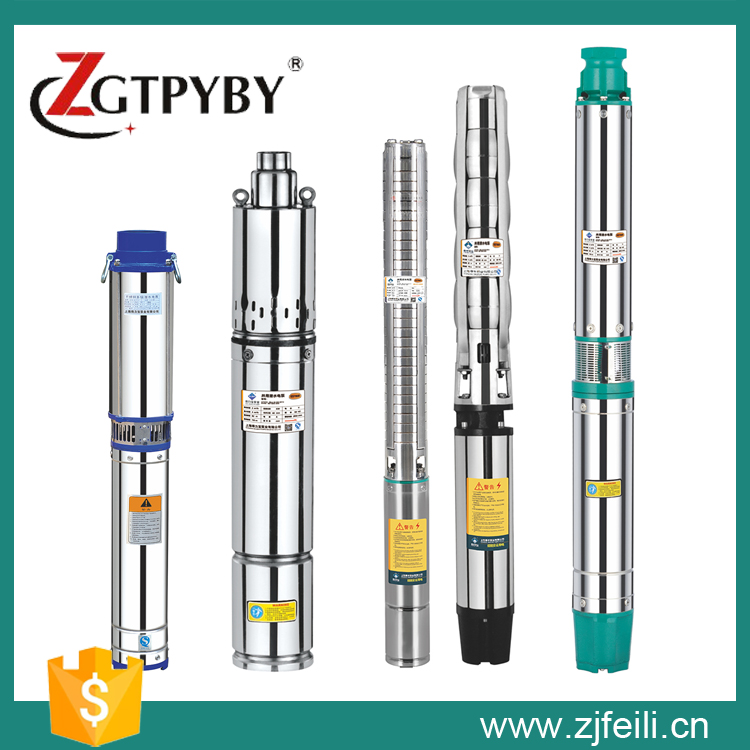

Agricultural irrigation stainless steel submersible deep well water pump for sale

FOB Price:	150.00 - 200.00 USD/Piece

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China

Specifications

Agricultural irrigation stainless steel submersible deep well water pump for sale

Product introduction:

Components of the deep well pump:

Shaft,jacket and hydraulics in stainless steel

Brass impeller

Built in non-return valve

Thermoplastic parts

Oil-cooled motor with compensating diaphragm

Graphite mechanical seal protected by sand proof ring

4SKm series parts are non-toxic and non-polluting

Owing to the special construction features, both installation and maintenance of 4SKm series are fast and easy.

Motor:

Degree of protection: IP68

Insulation class: B

Construction Materials

Casing both of pump and motor, pump shaft: stainless steel AISI304

Impeller: stainless steel

Technical Data:

Suitable fluids

Clear, solid or abrasive substances, chemically neutral and close to the characteristics of water

Performance:

Speed range: 2900rpm

Fluid temperature range: -10℃~40℃

Max. Working pressure: 25bar

Ambient temperature: permissible up to 40℃

Power

Single phase: 1~240V/50Hz,60Hz

Three phase: 380~415V/50Hz,60Hz

Features of Deep Well Pump:

Good-looking appearance and all the fluid-passing components pf both of submerged pump and the submerged motor are made of stainless steel.

Low weight and convenient in movement and installation.

High efficiency, save electricity

Provided with non-return valve to avoid damage due to back-flow of water at shut of pump or water hammer affecting the pump.

The liquid inlet is fixed with a filter screen to prevent solid grain of a given size from entrance.

Application of Deep Well Pumps:

1. For water supply from wells or reservoirs

2. For domestic use, for civil and industrial applications

3. For garden use and irrigation
