Zhangjiagang Eceng Machinery Co., Ltd.
China Manufacturer with main products: Pet Bottle Blowing Machine, Plastic Products Making Machine, Bottle Molding Machine, Blow Mold, Blowing Molding Machine, Bottle Blow Moulding... |

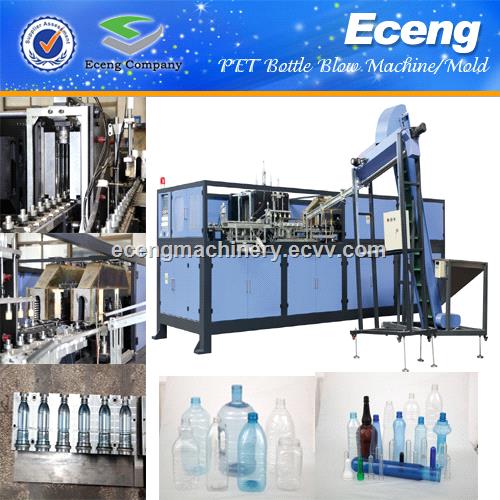

PET water plastic blowing machine
| FOB Price: | 27,000.00 - 45,000.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set/Sets per Month |
| Shipping: | 45 Working days within 15 days for debugging |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | Nude package or wooden case |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: One year for free
- Certification: CE
- Weight: 3500KGS
- Dimension(L*W*H): 3.5*1.6*1.9
- Power(W): 45KW
- Voltage: 220V or 380V
- Model Number: YCQ-2L-2
- Brand Name: ECENG
- Automatic: Yes
- Blow Moulding Type: Stretch Blow Moulding
- Plastic Processed: PET
- Application: Bottle
- Condition: New
- Max bottle volume: 2L
- Cavity: 2
- Output: 3500-4000 bph
- Key word: pet blowing machine
- Color: Blue and black
Specifications
PET water plastic blowing machine
YCQ-2L-2 with 2 cavities is specially designed to produce water bottole, PET bottle with high heat resistance for hot filling package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has slight shrinkage during hot filling.
In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90°C depending on the type of PET material with different crystallization rate. The neck up blowing mode protects the bottle preform from damage during blowing and ensures stable performance. With high strength, good transparency and low production costs, abundant material resource, YCQ-2L-2 plays a big role in hot filling package market.
Machine Features
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: Automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting.
O. Low rejection rate: Less than 0.3percent.
Machine Parts
Blowing Cylinder ----Festo (Germany)
Moulding Closing and Opening Cylinder ---- Festo (Germany)
Value ---- Festo (Germany)
Revolve Cylinder ---- SMC (Japan)
PLC ---- Mitsubishi (Japan)
Touch Screen ----Hitech (Taiwan)
Switch ----Omron (Japan)
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
