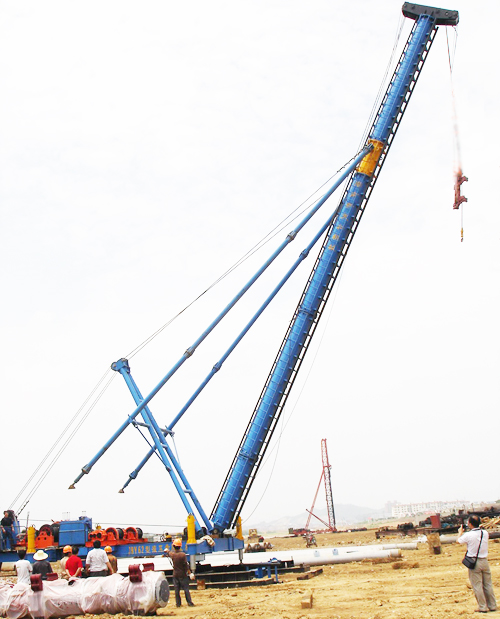

CFG26 Hydraulic Foot-Step Long Auger Drilling Rig
| FOB Price: | 420,000.00 - 650,000.00 RMB/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Quarter |
| Shipping: | Shanghai, China |
| Payment Terms: | T/T |
Related products from verified members
| Place of Origin: | Hunan in China |
|---|---|
| Packaging Details: | C4 on ship |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Model Number: CFG26
- Brand Name: Hunan New Timehope
- Motor Power: 45kw
Specifications
CFG26 Hydraulic Foot-Step Long Auger Drilling Rig
Product General:
? CFG series Hydraulic Foot-step Long Screw Drilling Machine is the newly explored new product based on manufacture of piling machine and construction experience for years.
? Including Pile Rig & Drilling System with logical structure, advanced technology, reliable performance, possessing distinct advantage than the traditional rig.
? Adopting centralized electro-hydraulic control, full-hydraulic foot-step chassis.
? Drilling system power adopting tri-ring reducer, drill rod adopting key flange connector.
? Suitable for technics of super-liquid, high-pressure casting, and dry drilling.
? Applicable for ground of clay, gravel, sand and soil,etc.
Product Features:
CFG series hydraulic foot-step multi-functional drilling rig with three-point support pillar which is adjustable all around. Logical structure, advanced technology, reliable performance, good appearance, flexible usage and cost-effective. Adopting centralized electro-hydraulic control, stable working, reliable operation and convinent maintenance. Easily assemble and disassembale. The pillar can be rised and fell by itselft. The host machine can be assembled and disassembaled by the chasis, no need of the cooperation of large tonnage crane. Drilling system power adopting tri-ring reducer, small machine, low weight while large bearing capacity and long service life time. Drill rod adopting key flange connector, safe, reliable and quick disassembale. Suitable for technics of super-liquid, high-pressure casting and dry drilling. Drilling and piling with CFG series hydraulic foot-step drilling rig, high efficiency, good quality, no vibration, no noise, no polution and high mechanization.
Better performance than hammer and sinking pile method for sand and gravel layer. Meanwhile, it avoids the press to foundation which results in the negative influence on neighbour buildings. This machine is applicable for clay, gravel, sand and soil layer, and also for the high underground water level formation, etc. Therefore, it is widely used in the field of industry and residential buildings and it is a kind of environmental protective piling machinery and specially suitable for the urban construction.
Product Parameter:
Item
Unit
CFG-26
Drilling hole diameter
mm
400-800
Drilling depth
m
26
Motor power
kw
55×2
Ma×. motor torque
Kn.m
35.5
Ma×. drilling rod speed
r/min
24.2
Allowable drill pulling force
kN
300
Main windlass single tightwire lifting
kN
50
Accessorial windlass single tightwire lifting
kN
20
Hydraulic system working pressure
MPa
16
Main pillar track space
mm
600
The inclination of pillar
degree
12/5
Long boat pace
m
2000
Long boat moving speed
m/min
0-4.3
Short boat pace
m
600
Short boat moving speed
m/min
0-4.3
Long boat grounding intensity of pressure
MPa
0.04
Short boat grounding intensity of pressure
MPa
0.053
Platform rotary angle
degree
360
Platform rotary speed
15
Ma×. working ground gradient
degree
3
Machine weight
t
50
Working dimension (L×W×H)
m
11×6.76×30
Transportation dimension(L×W×H)
m
10×3.04×2.15
