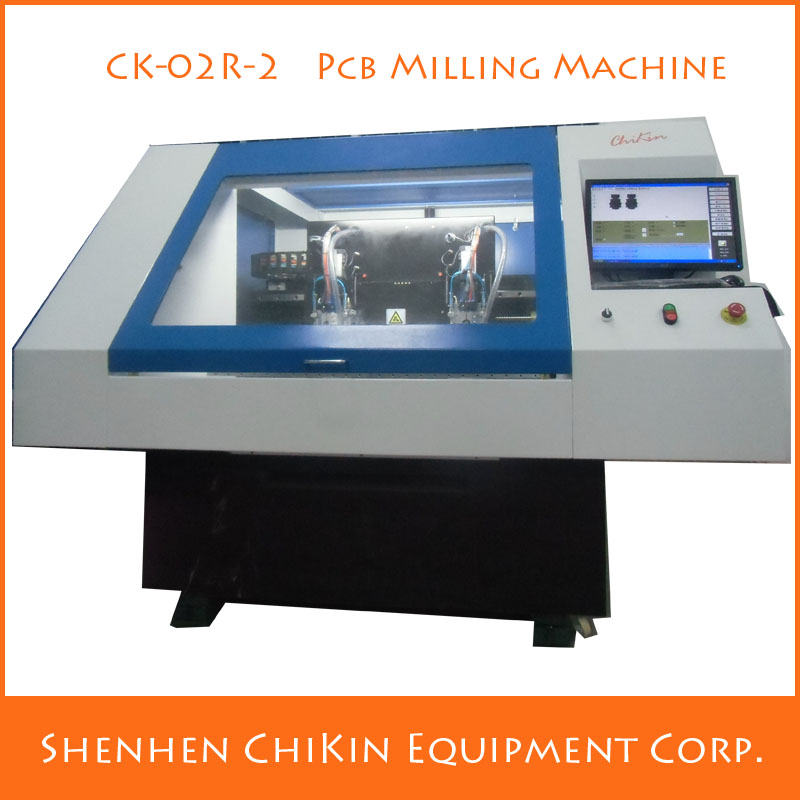

2015 Low Cost water-cooled CNC 2 axis PCB milling Automaiton machine New & high quality China Chikin
| FOB Price: | 21,000.00 - 30,000.00 USD/Set |
|---|---|
| Supply Ability: | 20 Set/Sets per Month |
| Shipping: | 15-30 days / set after 30% deposit |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Standard Solid wooden cases Or according to customers' requirements |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 months
- Certification: CE
- Weight: 2600KG
- Dimension(L*W*H): 2100*1850*1700mm
- Power(W): 1.2KW
- Voltage: 380V / 50Hz
- CNC or Not: CNC
- Model Number: CK-02R-2
- Brand Name: CHIKIN
- Condition: New
- Material: Granite Marble
- Application: PCB milling and Electronic ICT, etc.
- Type: PCB Milling Machine
Specifications
| Type | Technical parameter |
| Spindle number | 2 |
| spindle model | CK-02R-2 |
| NC system | CHIKIN CNC |
| Drive system | Servo |
| spindle type | water-cooled |
| operating interface | Chinese interface |
| Positioning accuracy | ± 0.005mm |
|
molding accuracy |
±0.05mm |
| Dilling diameter | 0.6-6.0mm |
|
milling diameter |
0.6-3.175mm |
| Size of the working table | 560*680mm |
| Size of the machine | 2100*1850*1700mm |
| Air Supply | 6-8 bar |
| Tool magazine capacity | 11PCS |
| Cuttingknife detection | Have Optional |
| working power | 220V / 50Hz |
| XYZ Rail | Taiwan / Germany STAR |
| XYZ Screw | Germany STAR |
| Z axis displacement speed | 15-30m/min |
