Shenzhen Hongtai Cutting Machine Co., Ltd.
China Manufacturer with main products: Cutting Machine, Cutting Press, Die Cutting Machine |
Home
>Products Catalog > Four Column Automatic Balance Hydraulic Cutting Machine > Precise Four Column Automatic Balance Hydraulic Cutting Machine

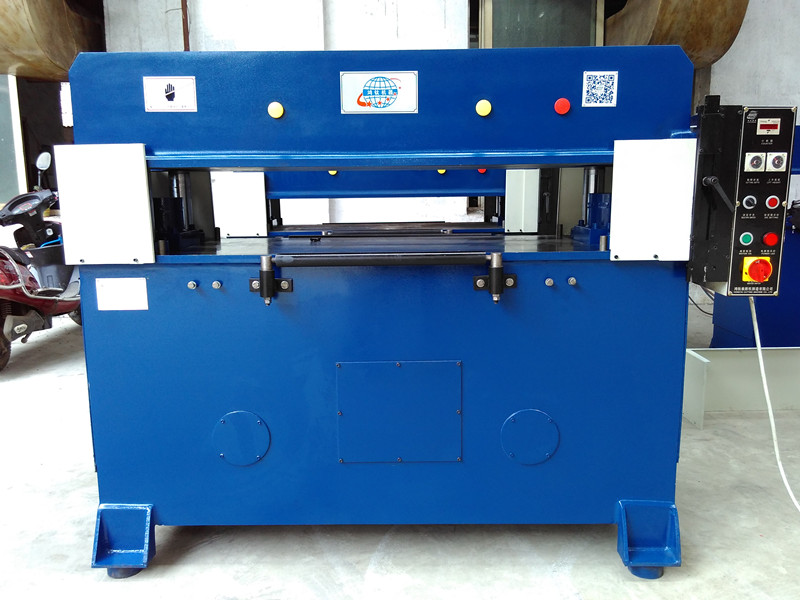

Precise Four Column Automatic Balance Hydraulic Cutting Machine
| FOB Price: | 6,280.00 - 9,280.00 USD/Set |
|---|---|
| Shipping: | Shanghai |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Sichuan in China |
| Packaging Details: | up to order |
Specifications
Features:
l Double-cylinders,four-column,self-balancing connecting rod which can maintain equal pressure of each cutting position.
l Series G machine has the long-stroke setting for adopt to the jumbo-size materials and high knife mould cutting.
l When the upper board pressure down and contact to the blade automatically,it can cut slowly,so that there is no size error between the top and the bottom materials.
l The unique setting construction,combine with the cutting knife and cutting height which can make stoke simple and accurate.
l Central automatic lubrication systems can ensure precision and durability of the machine.
|
Model |
Cutting force |
Dimension |
Cutting Area |
Motor |
Stroke |
Net Weight |
|
HT-D 30T/63″ |
30Tons |
2330×1320×1260mm |
610×1600mm |
2.2kw |
50-160mm |
1900kg |
|
HT-G 30T/63″ |
30Tons |
2330×1320×1260mm |
610×1600mm |
2.2kw |
50-240mm |
2000kg |
|
HT-G 30T/48″ |
30Tons |
1950×1320×1260mm |
610×1220mm |
2.2kw |
50-240mm |
1900kg |
|
HT-D 40T/63″ |
40Tons |
2330×1320×1260mm |
610×1600mm |
4kw |
50-160mm |
2800kg |
|
HT-G 40T/48″ |
40Tons |
1950×1320×1260mm |
610×1220mm |
4kw |
50-240mm |
2400kg |
|
HT-D 50T/63″ |
50Tons |
2330×1320×1260mm |
610×1600mm |
4kw |
50-160mm |
2900kg |
|
HT-G 50T/48″ |
50Tons |
1950×1320×1260mm |
610×1220mm |
4kw |
50-240mm |
2800kg |
Our website:www.htcutpress.com
