Yu Heng Da Technology Co., Ltd.
China Manufacturer with main products: Barcode Scanner, Receipt Printer, Magnetic Card Reader, Barcode Printer |

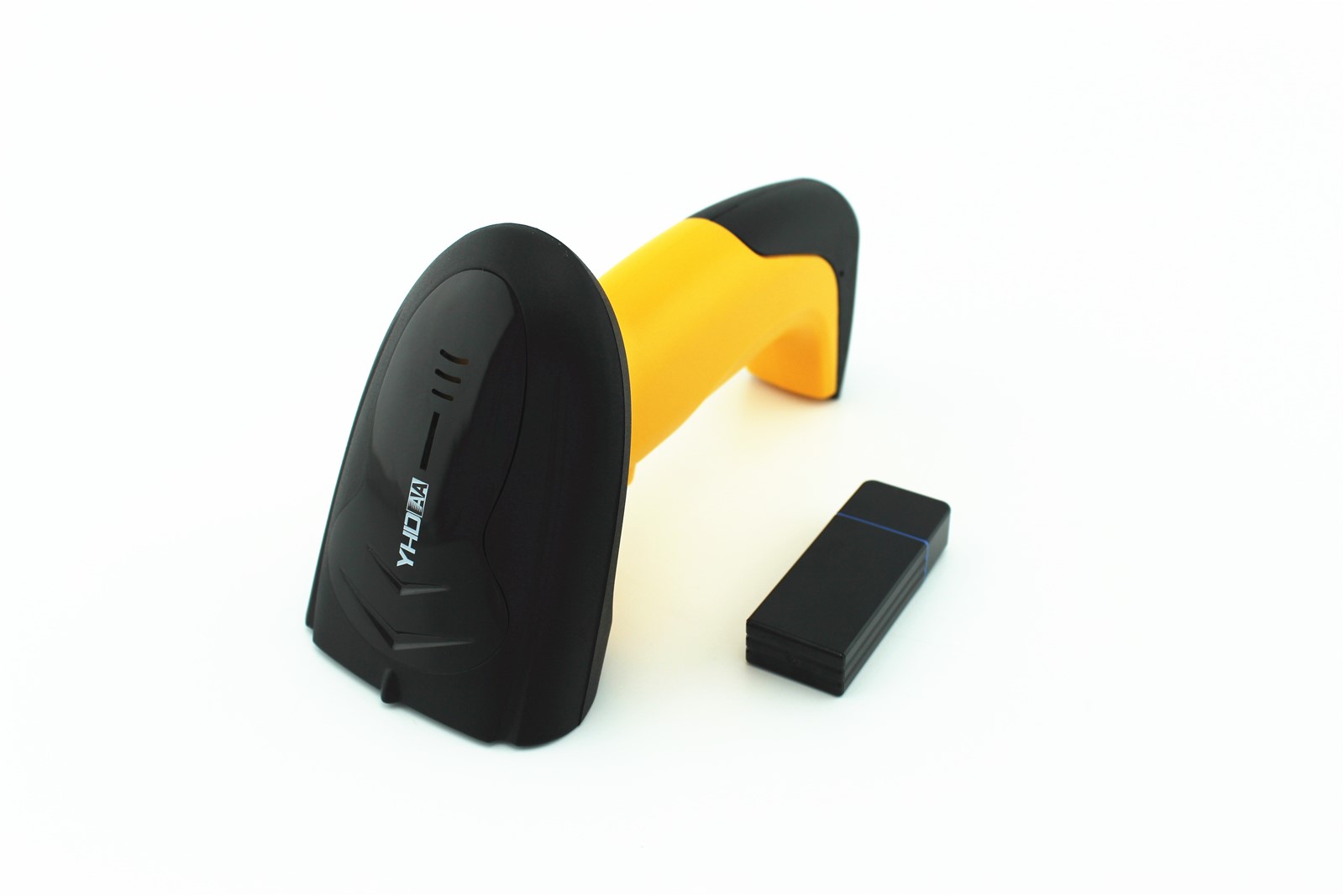

Barcode Scanner CCD Wireless Handheld Barcode Scanner
| FOB Price: | 35.00 - 37.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece/Pieces per Week |
| Shipping: | FOB shenzhen |
| Payment Terms: | T/T, Western Union, Other, Paypal |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | standard packing |
Quick Details
- Model Number: YHD-5200
- Brand Name: YHDAA
- Scan Speed: 300/s
- Optical Resolution: 3.3mil
- Max Paper Size: 30cm
- Interface Type: receiver
- Colour Depth: 32 Bit
- Scan Element Type: CCD
- Type: Barcode Scanner
- Products Status: Stock
Specifications
1.Product Specification
| Electrical parameter | 5/3.3 V ± 10%x100mA (idle:10mA) | |
| Scanning type | bi-directional | |
| CPU | ARM 32-bit Cortex | |
| Light source | CCD | |
| Trigger Mode | handheld,Continuous,Auto-Induction | |
| Auto -Induction interval time | 0.3S | |
| Handheld/ Auto-Induction switching time | 6S | |
| Indication | Buzzer & LED | |
| Printing Contract | >25% | |
| Resolution | 3.3mil | |
| Decoding speed | 300scans/sec | |
| Bit error rate | 1/5millon,1/20million | |
| Scanning width | 30cm | |
| Depth of Field | 3.3mil | 2mm-100mm |
| 10mil | 2mm-350mm | |
| 15.6mil | 5mm-600mm | |
| 35mil | 10mm-1000mm | |
| Scanning angle | rotor angel±30°,inclination± 45°,declination ± 60° | |
| Anti inference | industrial lighting or sun will not make any difference | |
| Decoding Capability |
UPC/EAN,with complementary UPC/EAN Code128,Code39,Code 39Full ASCII,Coda bar,industrial/Interleaved2 of 5,Code93,MSI,Code11, ISBN, ISSN,China post,etc |
|
| Button life | 8000,000 times ; laser life:12000 hours | |
| Drop test | 2.0m fall to concrete | |
| Interface | TTL,RS232,KBW,USB | |
| Certificate |
CE,FCC,RoHS,IP54 |
|
