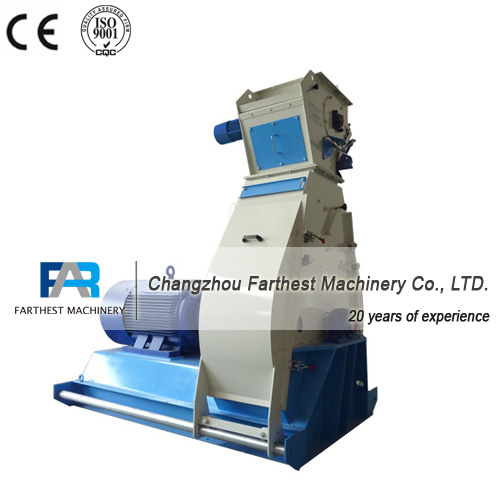

High Capacity SFSP998 Series Hammer Mill

Supply Ability:	20 Set/Sets per Month
Shipping:	Shanghai Port
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	iron pallet

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: one year
Certification: CE, ISO9001
Power(W): different motors available
Voltage: 380 V
Type: Mill Machine
Model Number: SFSP998
Brand Name: FAR
Condition: New

Specifications

Features:

1. The grinding chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and
getting higher capacity;
2. The bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity
with evener particle size;
3. All of our rotors pass an accurate dynamic balancing test, resulting in low noise and smooth running.

4. Both coarse and fine grinding can be completed by adjusting the distance between the beater and the screen;
5. New type S-shape coupling directly connecting driving results in big offset travel and effectively avoid the heat
from the bearing;
6. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7. The imported components are used for key parts, resulting in long service life and low maintenance cost;
8. The moving full-wide operation door facilitates maintenance and replacing of beater;
9. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc.

Main Technical Parameters:

Model Parameters	SFSP998-Ⅰ	SFSP998-Ⅱ	SFSP998-Ⅲ	SFSP998-Ⅳ
Dia. Of Rotor(mm)	1200	1200	1200	1200
Width Of Grinding Chamber (mm)	300	400	500	600
Speed Of Rotor(rpm)	1480	1480	1480	1480
Power(kw)	55/75	90/110	110/132/160	180/200/220
Output(t/h)	10-15	12-20	25-35	38-50

Re: The above indexes are those when meeting the following conditions: raw material: corn, moisture content not
higher than 14%, density not lower than 0.72t/m3, screen: hole diameter ￠3mm, hole-opening rate not less than 33%.
