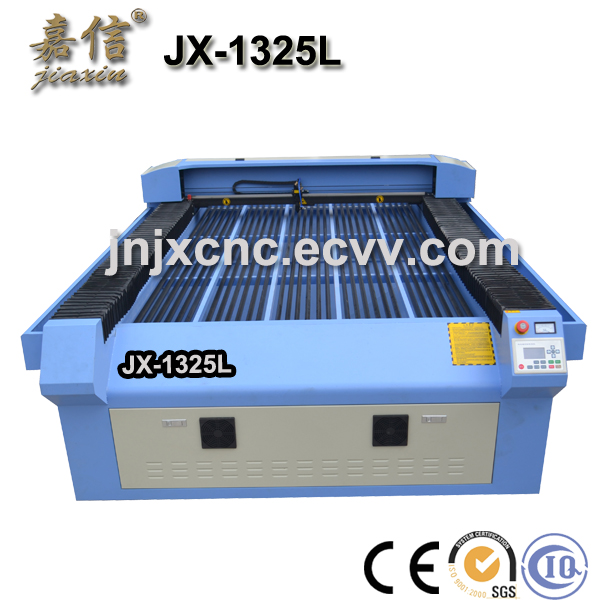

JX-1325L JIAXIN 3D Photo carving Co2 Laser machine

FOB Price:	5,600.00 - 9,000.00 USD/Set
Supply Ability:	60 Set/Sets per Month
Shipping:	Within 15 days after received your deposit FOB Qingdao
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	plywood box with steel frame

Quick Details

Application: Laser Engraving
After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE
Dimension(L*W*H): 1300*2500mm
Model Number: JX-1325L
Brand Name: JIAXIN
Graphic Format Supported: BMP,DST,DWG,DXF,DXP,PLT
Applicable Material: Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood
Cooling Mode: Water Cooling
CNC or Not: Yes
Engraving Speed: 25-60000mm/min
Engraving Area: 1300*2500mm
Laser Type: CO2
Condition: New

Specifications

JX-1325L JIAXIN Co2 Laser cutting machine with auto feeding system

Model	JX-1325L
Processing area	1300X2500mm
Laser Power	100W, 80W
Laser Tube	CO2 sealed glass laser tube , water cooling
Engraving Scanning Speed	25-60000mm/min
Cutting Speed	24000mm/min
Cutting thickness	0-20mm Acrylic (according to the material)
Max speed	60000mm/min
Location precision	< 0.01mm
Graphic format	DST PLT BMP DXF
Supporting software	CORELDRAW, PHOTOSHOP, AUTOCAD
Resolution	< 0.01mm
Power supply	AC220V± 10%/50Hz
Gross power	2000-2500W
Operating humidity	5%-95%free of condensed water
Operating temperature	5° C-40° C

Suitable Industry

1.Suitable material:nonmetal material, such as plexiglass, leather, fabrics, cloth, rubber, plastics, wooden product, paper
etc.

2.Suitable Industry:plexiglass, garments sampling, model industry, leather industry, advertisement decoration, packing
and printing, crafts, paper industry etc.

Performance Characteristics
1.This is the new model designed according to the demand of cutting in the market. It avoids the waste of material, super
-beam, non-contact cutting, scratching, narrow slit cutting and smooth cutter etc. It can also cut in high speed and efficiency.

2.Optional Double laser cutting machine doubles the efficiency. Suitable of large and medium enterprises for mass production.
It can also meet the production demand of small businesses and individuals.
3.New and unique structural design supports high-speed cutting and carving and meets the various control requirements from
the low-end to high-end. Tunable speed and laser energy greatly facilitates the operation of the customer. The function of cut
power automatic compensation improves the cutting results.
4.With USB interface and two-way communication, it increases the transmission speed and accuracy. Several laser equipments
can be controlled by one computer, which reduces the user' s investment.

Warranty/Guarantee & aftersales service

1.12 months guarantee and laser tube 3 months guaranteed.

2.Exhaust guarantee for 6 months.

3.24 hour technical support by email or calling.

4.User-friendly english manual and Video CD for machine using and maintaining.
