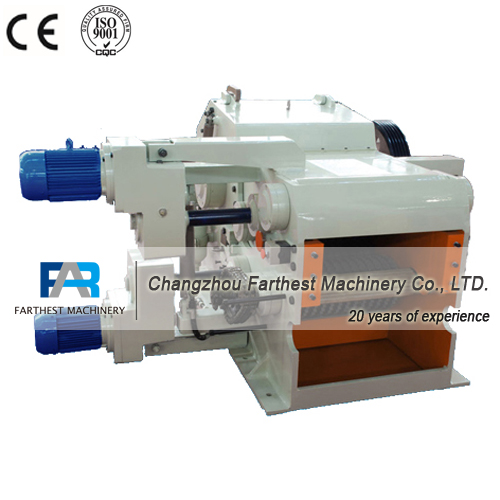

Safe and Reliable Drum Wood Chipper

Supply Ability:	20 Set/Sets per Month
Shipping:	Shanghai Port
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	iron pallet

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Certification: CE, ISO9001
Model Number: LYGX
Brand Name: FAR
Number of Cutter: 2
Spindle Speed: 730 rpm
Mill Granularity: 26 mm
Condition: New
bearing: SKF
motor: siemens(China)

Specifications

Featrues

1. The serial drum chippers of our company are a kind of special equipment that produces
technological wood chips. Widely used in the production of medium-density fiberboard.,
ordinary shaving board and in the papermaking industry etc., it is used as the main machine
of material-preparing process of wood chips, could be used as independent wood chip production
equipment as well.

2. The raw materials for the serial drum chippers mainly include: log, small-diameter wood, tree-felling
remainder (branch etc.), wood processing remainder (lath, slab, log core, abolish single-board.).

3. The serial drum chippers are of compact structure, ease of operation, high capacity, wide raw
materials adaptability, high quality, safe and reliable, easy to maintain, it is the relatively advanced
slicer at present both at home and abroad.

4. The serial drum chippers could meet the production capacity between 3 and 130 cubic meters
of wood chips per hour. Users could select the suitable type of machine according to requirements.

Main Technical Parameters

Model Parameters	BX216	BX218	BX218D	BX2110	BX2113/11
Rotor Diameter(mm)	650	800	800	1000	1300
Number Of Flying Knives(pc)	2	2	2	2×2	3×2
Feed Opening(mm)	180×500	225×680	240×750	330×1050	400×1050
Knife Rotor Speed(rpm)	590	650	650	550	442
Feed Speed(m/min)	37.2	37	38	38	43
Stock Processed Max Diameter(mm)	120	160	160	210	230
Chip Length(mm)	30	30	20-30	30	30
Capacity(m3/h)	10	15-20	38	75	108
Main Drive Motor Power(kw)	55	110	132	220	315
Feed Roller Motor Power(kw)	2×3	4×2	4×2	7.5×2	11×2
Pump Motor Power(kw)	---	---	0.55	2.2	3
Machine Net Weight(kg)	4070	7000	7500	12500	18000
