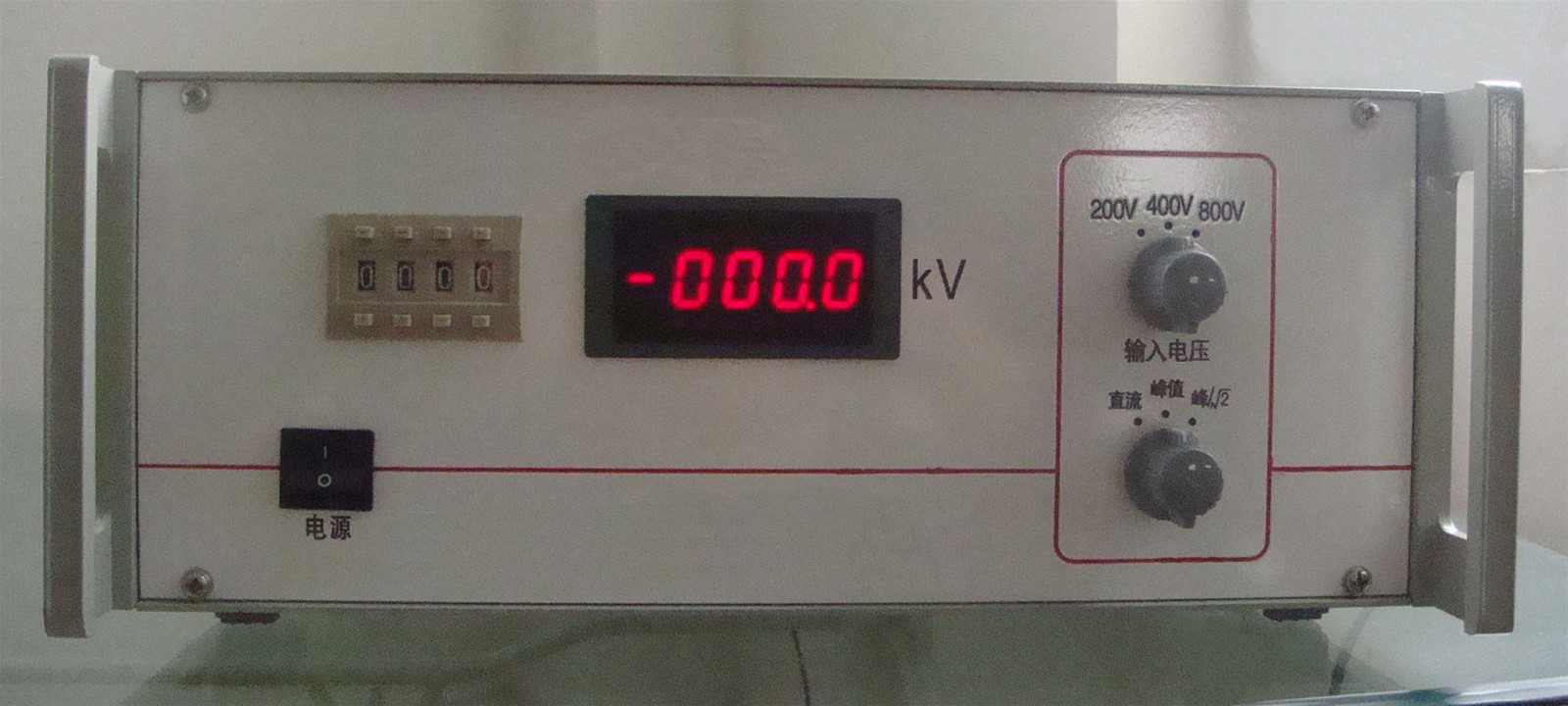

PM201 digital power frequency peak voltmeter

FOB Price:	1,000.00 - 1,100.00 USD/Set
Supply Ability:	50,000 Set/Sets per Week
Shipping:	two work days delivery time, from Shanghai & Shenzhen port, etc
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China
Packaging Details:	IPPC International standard wooden boxes packing

Quick Details

Dimensions: 360 x 280 x 150cm
Operating Temperature: below 60 temperature
Accuracy Class: 0.5%
Measuring Range: 9999kV
Display Type: Digital Only
Model Number: PM201
Brand Name: Precisewell
AC/DC Voltage: digital power frequency peak voltmeter

Specifications

PM201 digital power frequency peak voltmeter,which used for dc high voltage test, high voltage power frequency experiment and design measuring instrument. This instrument can be used to measure the positive and negative polarities dc voltage, ac voltage peak, peak/sine wave appropriate. This instrument all adopt the integrated circuit, stable performance and good reliability, high accuracy, easy to use, easy to carry.

Technical parameter:
a) Use environment: temperature: - 10 ℃ ∽ 40 ℃ relative; humidity: more than 80%
b) Measured signal frequency: 0 ～ 1000Hz
c) Input impedance: p Ω 4M
d) The input voltage: points 800V, 400V, 200V three gears
e) Differential pressure than 1 ∽ 4999 set freely as wanted
f) Measuring precision: measured signal frequency 0 ～ 1000Hz superior + 0.5% plus or minus five words
g) Display: 4 1/2 LED digital display a tube
h) The power supply: 220V + 10% 50Hz + 2Hz
i) Power: acuities 10W
j) Size (wide x deep x high) : 360 x 280 x 150cm
k) Weight: about 4.5 kg
