Jiangsu Aotong Optical Fiber Cable Technology Co., Ltd.
China Manufacturer with main products: Adss Optical Cable, Outdoor Optical Cable, Indoor Optical Cable, Special Optical Cable |
Home
>Products Catalog > special optical fiber cable > 8 core single mode stranded loose tube mining flame-retardant cable
8 core single mode stranded loose tube mining flame-retardant cable
| Supply Ability: | 400 Kilometer/Kilometers per Month |
|---|---|
| Shipping: | by sea at shanghai or ningbo port |
| Payment Terms: | L/C, T/T |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | Southeast Asia, Africa, Mid East, Eastern Asia |
|---|---|
| Packaging Details: | in wooden drum which is suitable for long distance shipment |
Quick Details
- Jacket: PVC
- Conductor Material: optical fiber cable
- Application: Mining
- Model Number: MGTSV
- Brand Name: xhcable666
Specifications

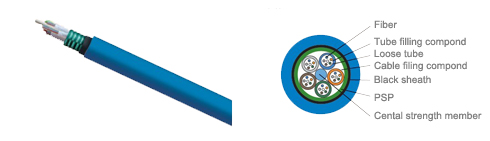

Description:The fibers 250um are positioned in a loose tube made of a high modulus plastic.The tubes are filled with water-resistant filling compound.A steel wire ,sometimes sheathed with PE for cable with high fiber count which locates in the center of core as a metallic strength member.Tubes are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,which is filled with the filling compound to protect it from water ingress.The cable is completed with a flame-retardant sheath.
Characteristics:Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
excellent crush resistance and flexibility
Special sheath material ensures excellent flame-retardant performance
The following measures are taken to ensure the cable watertight:
Steel wire used as the central strength member
Loose tube is filled with special filling compound
100% cable core filling
PSP enhancing moisture-proof
Standard:Comply with Standard Q62170406-MG001-2011 as well as
MT386-1995; and passes MA certification.
