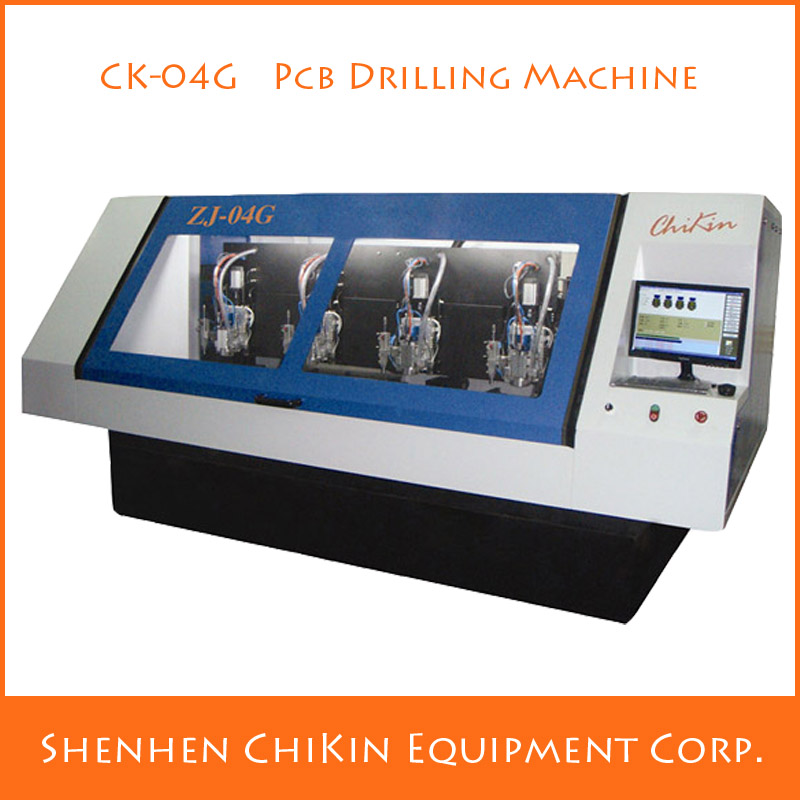

High Performance CNC PCB Drilling Machine For Aluminum Panel

FOB Price:	64,000.00 - 74,000.00 USD/Set
Supply Ability:	20 Set(s) per Month
Shipping:	within 15 -30 days after 30% deposit
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	standard solid wooden case with plastic wrap or according to your requirements.

Quick Details

Brand Name: CHIKIN
Warranty: 1 year
Certification: CE
COLOR: Blue + White
Lead time: 30 days after 30% deposit
Model Number: CK-04G
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 12 months
Certification: CE
Dimension(L*W*H): 3200*1850*1700mm
Weight: 6000KG
Power(W): 0.75KW
Voltage: 380V/50Hz
Condition: New
Accuracy: high precision 0.2-6.0mm
Color: sky blue + silver

Specifications

High performance CNC PCB Drilling Machine for Aluminum Panel

1.ChiKin CNC Route control system
2.Closed-loop using linear scale to aim at high positioning accuracy
3.X Y axis: Taiwan HIWIN linear motor, 80m/min movement speed
4.Z axis: Panasonic servo motor and NSK ballscrew, 30m/min movement speed
5.Germany Rexroth linear guide; Z axis high precision NSK ballscrew
6.Granite structure
7.Air bearing KLKJ spindle: 200,000rpm
8.Auto check rpm
9.Automatic tool change system by grisper, tool magazine: 200pcs
10.Laser detect tool length and diameter
11.Auto drill bit broken detect during drilling process
12.Quickly drilling function
13.Water chiller system to cool spindles
14.Working area: 560X 680mm
15.Drilling accuracy: +-0.02mm
16.Min. Drilling via: Φ 0.15mm
17.Max. Drilling hits: 400/min
18.English vision CNC control system
19.Operating platform: Window
20.Machine Dimension: 3200 X 1850 X 1700mm
21.Weight: 6T
22.Voltage regulator: 400V/3PH, 10KVA
