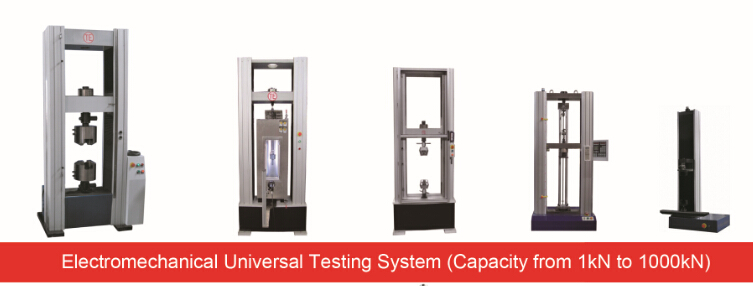

WDW-S Superior Electromechanical Universal Testing System

Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Online Style Insulation Resistance Tester for E...

Price:

Min. Order:1 Piece
WZS118 COMMON RAIL INJECTOR TEST BENCH

Price:3,300.00-3,800.00 USD/Set

Min. Order:1 Set
PQ2000 Common rail injector tester

Price:

Min. Order:
Ball-Bursting Strength Tester (TF003)

Price:3,000.00-3,500.00 USD/Set

Min. Order:1 Set
Automatical Oxygen Bomb Calorimeter, ASTM -- D2...

Price:99999.00 USD/Set

Min. Order:1 Set
IEC60529 IPX1 IPX2 Vertical Drips Test Device

Price:7500.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China

Quick Details

Usage: Universal Testing Machine
Power: Electronic
Model Number: WDW
Brand Name: TE
tensile compression bending shearing ASTM ISO: accessories upon request

Specifications

WDW-S series superior materials testing systems adopt extremely robust load frames, highly precise load weighting system, cutting-edge measuring & control system and intuitive modular application software. Configured with extensive range of accessories for various applications, it can provide the optimal testing solutions for your individual application needs. With rich experiences of 20 years of involvements in materials testing industry & based on abundant application knowledge accumulated on all kinds of sectors, TE is completely capable of configuring the exactly suitable solutions & more accurately test system to customer involving the choice of load frame, core measuring & control elements, software package, grip/fixture etc based on their specified test application and any demanding requirements.

Applied Standard:

Load meets or exceeds the following standards: ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221.

Strain measurement meets or exceeds the following standards: ASTM E83, ISO 9513, BS 3846, EN 10002-4.

Safety: This machine shall conform to all relevant European CE Health and Safety Directives EN 50081-1, 580081-1, 73/23/EEC, EN 61010-1

Load Frame

Single column machine is more suitable for biomedical, textiles, plastic film industries where test load requires low capacity; Dual-column table type is the main choice of rubber, plastic, composites & metal sectors where specimen needs wide test area and middle-range strength; While floor type is optimal units for most demanding applications of metal & alloys, fasteners etc. where specimen sizes and strength requires high capacity.

The frames all take human factor into considerations in the design to ensure safety, reduce operator fatigue and provide the highest level of flexibility. Extremely robust crosshead guidance is incorporated in all frame designs providing the highest level of lateral crosshead stiffness.

With gapless load frame, imported larger capacity servo motor, stable driving system and advanced control system, it can complete the low cycle fatigue test like square & trapezoidal waveform under 0.5Hz.

Model	WDW-S1/2/5S	WDW-1/2/5/10/20S	WDW-25/30S	WDW-50/100S	WDW-200/250/300S		WDW-500/600S
Max. load(kN)	1/2/5	1/2/5/10/20	25/30	50/100	200/250/300		500/600
Load measuring range	0.2%(1/500)~100%(1/1)FS
Load accuracy	±0.5%/Class 0.5 (better than ASTM E4, ISO7500-1, EN 10002-2, BS1610, DIN 51221)
Deformation measuring range	0.4%(1/250)~100%(1/1)FS;
Deformation accuracy	±0.5%/Class 0.5 (better than ASTM E83, ISO 9513, BS 3846, EN 10002-4)
Position resolution	0.006μm
Position accuracy	±0.01mm or 0.05% of displacement (whichever is greater)
Crosshead moving speed (mm/min)	0.001-1000	0.0015-1500		0.001-1000		0.0005-500
Crosshead moving speed accuracy	±0.1% of set speed (zero or constant load)
Maximum speed at full load (mm/min)	1000	1500		1000		500
Maximum load at full speed (kN)	1/2/5	1/2/5/10/20	25/30/50	50/100		200/250/300		500/600
Vertical test space¹ (mm)	990	1300		1700	1500
Total crosshead travel (mm)	900	1200		1600	1400
Column spacing (mm)	/	420	500	570	590		650
Max. tensile space² (mm)	700	750			550
Max. compression space³ (mm)	810	1200		1050
Tensile jaw for round specimen(mm)	/ ⁴	Φ4~Φ14	Φ4~Φ20		Φ8~Φ32		Φ12~Φ40
Tensile jaw for flat specimen (mm)	0~8	0~14	0~21		0~27		0~30
Width x height of jaw (mm)	40 x 60	35x55	40x55		50x75		70x90
Compression platen diameter (mm)	Φ50	Φ100
Bending fixture span(mm)	/ ⁵	10-300	20-300	20-400	30-420		30-450
Length x dia. of bending roller (mm)	/	100xΦ10	100xΦ20		140xΦ30
Height of bending supporter (mm)	/	50		90	100
Frame axial stiffness (kN/mm)	10	40	60	280	450		700
Power supply	1 phase, 220V/110V, 50Hz/60Hz		3 phase, 380V/220V, 50Hz/60Hz
Power (kW)	0.4	1/1.5	2	3	4		5
Dimension⁶(mm)	385x550x1415	780x550x1770		1030x660x2390	1150x760x2400		1210x880x2560
Weight (kg)	120	270	330	850	1600		2600
Shipping dimension (mm)	1600x900x500	1930 x 900x700		2650x1180x1000	2650x1300x1100		3150x1500x1250
