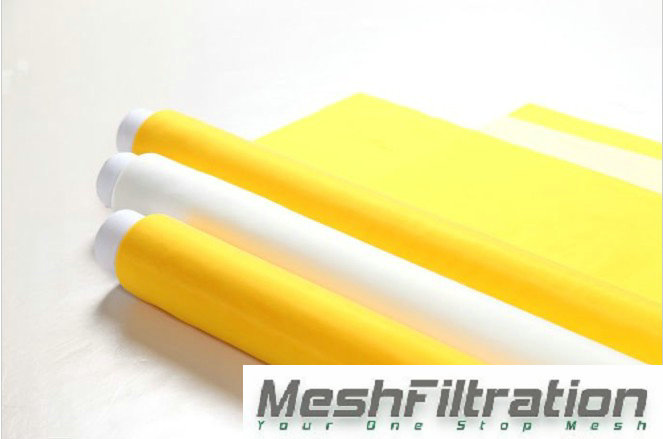

120t 305 Mesh Polyester Printing Mesh Made by Imported Material for Printing

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China

Specifications

Description:

In the field of mesh fabrics for screen printing, nowadays the low-elongation polyester screen mesh has already replaced the traditional silk mesh and is dominating the screen printer in the world due to its tensile strength, elastic memory and resistance to chemicals, abrasion heat and moisture. It is said "can be used to print on anything except air and water", which is exactly what MeshFiltration is producing now in a wide range of mesh counts, and our products offer significant advantages over the traditional monofilament polyester.

Certification: ISO9001, SGS, RoHS
Model Number: 5T- 165T
Material:: 100% polyester
Weave type:: Plain
Elasticity:: Low
Colour:: White, yellow, black
Width:: 127cm - 360cm

Specifications: Applications:
Our polyester screen printing mesh are used widely in textile printing, electronic printing, PCN, CDS, ceramics, glass, stained paper printing, labei plate, advertising, plastic. etc.

Competitive Advantage:

Improved fabric strength
Faster tension stabilization
High tension and low elongation.
Precision bore, well-distributed, stabilization, superior stencil adhesion.
Accurate printing precision control; holds finer detail with no compromise in stencil durability.
Time-dependent stability and good cohesion with sensitive emulsion.

Specification details of polyester printing mesh:

Mesh count diameter (mesh/cm μm)	Mesh count (mesh/ inch)	weave	aperture (μm)	Thread diameter (μm)	opening (%)	thickness (μm)	Thickness tolerance (+/-μm)	theoretical link (cm3/m2)	weight (G/M2)
13- 150PW(SL)	33	1:1	619	150	64	300	14	128	60
20-180PW(S)	55	1:1	296	180	69	120	9	79	35
21-150PW(SL)	55	1:1	326	150	46	260	14	118	121
24-100PW(T)	60	1:1	316	100	57	136	11	65	81
28-140PW(SL)	70	1:1	217	140	40	195	13	76	125
32-55PW(S)	81	1:1	257	55	67	103	6	67	28
32-64PW(S)	81	1:1	248	64	63	95	6	56	32
32-100PW(T)	81	1:1	212	100	45	165	8	73	75
36-90PW(T)	92	1:1	183	90	44	150	8	65	68
39-55PW(S)	100	1:1	177	55	56	88	6	55	30
40-80PW(T)	103	1:1	166	80	44	133	7	59	60
43-80PW(T)	110	1:1	149	80	41	130	7	53	64
47-45PW(S)	120	2:2	166	45.2	61	80	6	42	40
47-55PW(S)	120	1:1	152	55	51	88	6	48	34
48-70PW(T)	122	1:1	133	70	41	115	6	47	55
53-45PW(S)	135	2:2	143	45.2	57	79	7	41	46
53-55PW(S)	135	1:1	133	55	50	86	6	42	40
54-64PW(T)	137	1:1	115	64	39	100	5	39	51
54-70PW(HD)	137	1:1	109	70	35	116	6	40	62
61-64PW(T)	155	1:1	90	64	31	101	5	30	58
64-55PW(S)	160	1:1	98	55	38	98	5	36	48
64-64PW(T)	160	1:1	85	64	30	115	6	34	61
68-55W(S)	175	1:1	85	55	34	85	4	28	48
68-64PW(T)	175	1:1	78	64	28	105	5	30	65
72-48PW(S)	182	1:1	90	48	36	78	5	33	39
72-55PW(T)	182	1:1	85	55	30	90	5	27	51
77-48PW(S)	195	1:1	77	48	35	80	4	28	42
77-55PW(T)	195	1:1	67	55	27	88	4	24	55
80-48PW(T)	200	1:1	72	48	33	74	4	25	56
90-48PW(T)	230	1:1	56	48	25	78	4	19	50
100-40PW(T)	255	1:1	58	40	33	63	3	21	34
110-40PW(HD)	280	1:1	48	40	27	64	3	17	40
120-31PW(S)	305	1:1	49	31	35	49	3	17	26
120-34PW(T)	305	1:1	45	34	30	55	3	16	35
120-40PW(HD)	305	1:1	37	40	20	63	3	13	44
130-34PW(T)	330	1:1	40	34	27	55	3	15	37
140-31PW(S)	355	1:1	36	31	26	48	2	12	30
140-34PW(T)	355	1:1	31	34	20	53	3	10	39
140-34TW(T)	355	2:1	33	34	21	56	3	12	41
150-31PW(S)	380	1:1	32	31	23	49	3	11	32
150-34PW(T)	380	1:1	23	34	13	55	3	6.5	42
165-31PW(S)	420	1:1	23	31	15	48	2	7	36

Product Tags:
polyester screen printing mesh

monofilament polyester mesh
