Home >Products Catalog > FTTH Drop Cable > Outdoor Fiber to the home cable (GJYXCH/GJYFCH)

Outdoor Fiber to the home cable (GJYXCH/GJYFCH)

FOB Price:	0.10 - 0.90 USD/Kilometer
Supply Ability:	500 Kilometer/Kilometers per Day
Shipping:	Within 15 days after receiving payment.
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

electron tube FD-934S

Price:

Min. Order:
ROHS Spring Clamps / CE Sping Clamps

Price:0.01-2.00 USD/Piece

Min. Order:1,000 Pieces
Waterproof Handset Retractile Curly Cord UL2084...

Price:0.17 USD/Piece

Min. Order:100 Pieces
RF Cable

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	wooden package, 2km/drum or 3km/drum or up to customers requirment.

Quick Details

Number of Conductors: 2
Jacket: PVC
Insulation Material: Fiberglass
Conductor Material: optic fiber
Model Number: FTTH drop cble
Brand Name: kstcable
Certification: ISO, ROHS, UL,SGS,SARFT
Fiber: ITU standard
Type: outdoor and indoor

Specifications

Description

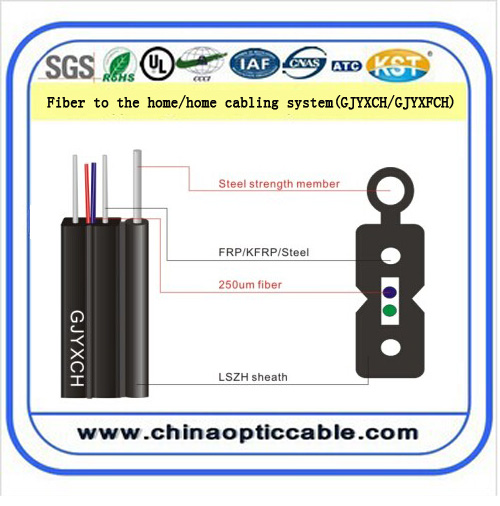

FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the centre. Two parallel strength member are placed at the two sides. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black LSZH sheath.

Technical Parameters:

ITEM			CONSTRUCTION
Fiber count			2
Cable diameter			5.4*2.0MM
Strength member			FRP/ KFRP/ Steel
Outer sheath material			LSZH
Strength member diameter			0.8 mm
Cable weight			21.7KG/KM

Cable Mechanical characteristic

Installation Temperature range		-15--+60 °C
Operation and transport temperature		-40-+70 °C
Min allowable Tensile strength	Long time	200 N
	Short time	600N
Min allowable Crush load (N/100mm)	Long time	1000 N
	Short time	2000 N
Min Bending Radius(mm)	operation	10D mm
	installation	20D mm

FIBER IDENTIFICATION
								Blue

Characteristics:

1.Two parallel FRP (or steel ) strength members ensure good performance of crush resistance to protect the fiber.

2. Simple structure, light weight and high practicability

3. Easy to rip

4. Can be installed conveniently and operated simply

Application:

1. 2 core

2. suitable for the end of the cabling

3. FRP / steel covered by copper

Our advantages:

1. Professional cable manufacturer.

2. About 10 years experiences in cable industry.

3. Cooperate with 3M, TYOC,Thai telecom, Doha airport, Doha telecom,

Dubai telecom, Slovenia telecom and Yeman telecom other big projects

4. Best delivery time.

5.MOQ is 1kilometer

6.Hight quality with competitive price

7.Can be customized production of fiber optic cable

8. 4. 30 years cable service life , even 60 years cable service life.
