GYTC8S-Figur 8 Self supporting Aerial optical cable

Inquiry Now

Product Details

Quick Details

Brand Name: Sinohone/OEM/ODM

Specifications

Description

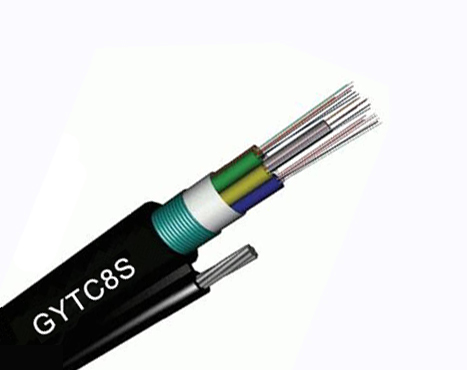

GYTC8S—Metal strength messenger wire, stranded loose tube, steel tape shielding , black PE sheath, figure 8 self-support outdoor optical cable.

Applications

This product can be used as outdoor transmission lines in core network (for example, long haul and relay lines between local telecommunication centers). It can also be used as outdoor distribution lines or feeder in access network.

Application Circumstances

Recommended: self-support Aerial

Optical characteristic

Type of fiber			B1.1		B4
Wavelength(nm)			1310	1550	1550
Attenuation coefficient(max)(dB/km)			0.36	0.22	0.22
PMD	M		20		20
	Q		0.01%		0.01%
	PMD_Q (max)		0.5ps/km^1/2		0.5ps/km^1/2
Zero-dispersion Wavelength(nm)			1300~1324		-
Zero-dispersion Slope (max) ps/(nm²·km)			0.093		-
Absolute value of Chromatic Dispersion ps/(nm·km)		1288~1339nm	3.5		-
		1271~1360nm	5.3		-
		1550nm	18.0		-
		1530~1565nm	-		0.1~10.0
		Dmax-Dmin 1530~1565nm	-		5.0
cut-off wavelength lcc(nm)			≤1260		≤1480
Note: If specification at 1600nm is required, Please make it out in the ordering contract.

Structure and Mechanical Characteristics

Fibre Count	Steel Wire mm	PE Sheathed Steel Wire mm	Loose Tube Size mm	Tubes	Fillers	height / width mm	Cable Weight kg	Crush Resistance Long/Short Term N/100mm
4~6	1.6	/	1.2/1.9	1	4	17.5/9.9	210	1000/3000
8~12	1.6	/	1.2/1.9	2	3	17.5/9.9	210	1000/3000
14~18	1.6	/	1.2/1.9	3	2	17.5/9.9	210	1000/3000
20~24	1.6	/	1.2/1.9	4	1	17.5/9.9	210	1000/3000
26~30	1.6	/	1.2/1.9	5	0	17.5/9.9	210	1000/3000
32~36	1.8	/	1.5/2.2	3	2	18.9/10.7	230	1000/3000
38~48	1.8	/	1.5/2.2	4	1	18.9/10.7	230	1000/3000
50~60	1.8	/	1.5/2.2	5	0	18.9/10.7	230	1000/3000
62~72	1.6	2.3	1.5/2.2	6	0	19.4/11.2	240	1000/3000
74~84	1.8	3.2	1.5//2.2	7	0	20.3/12.1	245	1000/3000
86~96	1.8	3.8	1.5//2.2	8	0	20.9/12.7	260	1000/3000

Temperature Characteristics

Temperature range :-40℃~+60℃

Additional Attenuation≤0.05dB/km

Cable Delivery Length

The standard delivery length of a cable is 1000m, 2000m or 3000m with the tolerance 0~+20m. If special requests are made in the contract, the supplied cable length should conform to it.
